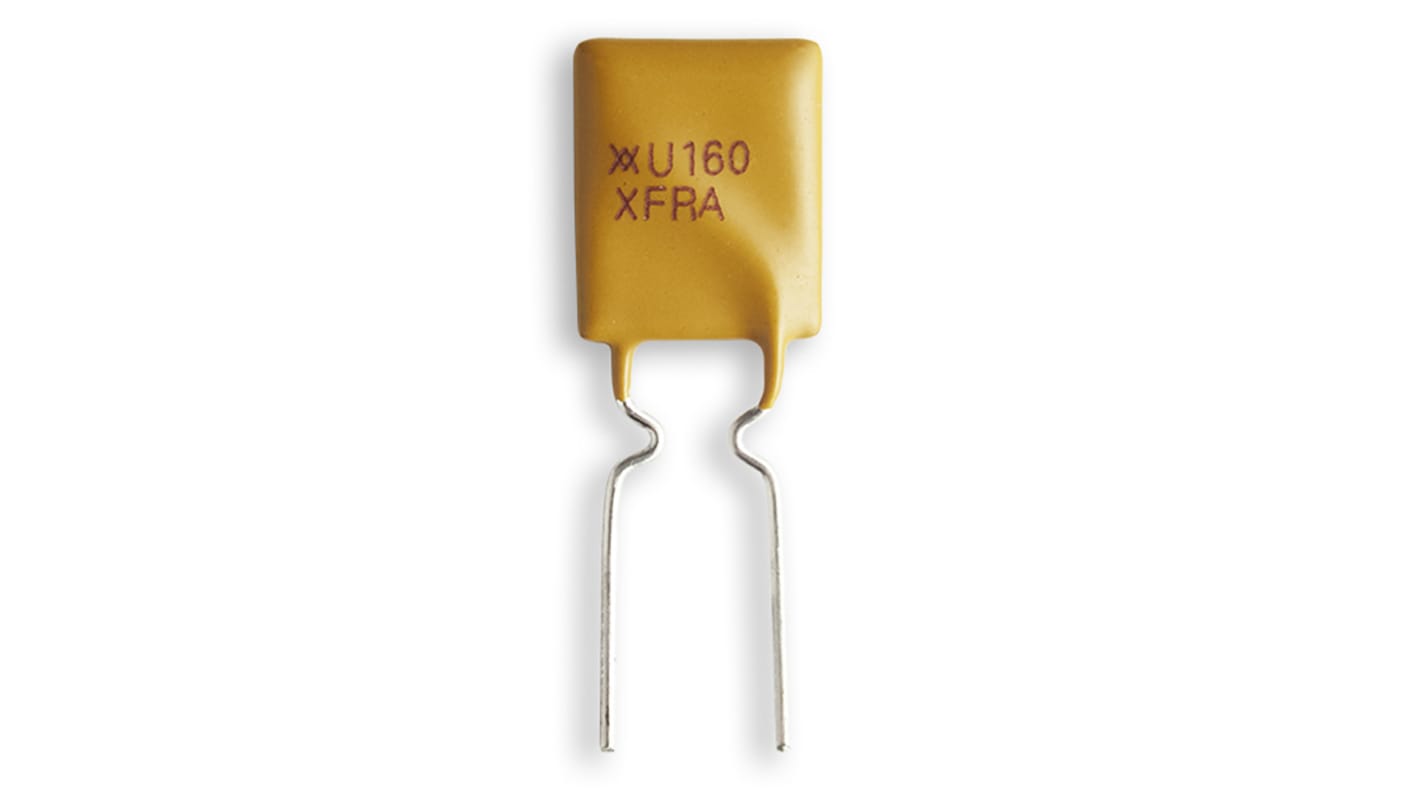

Wickmann 1.6 A Resettable Fuse, 30V ac
- RS Stock No.:
- 174-0811
- Mfr. Part No.:
- RF2645-000
- Brand:
- Wickmann
Subtotal (1 pack of 20 units)*
£6.12
(exc. VAT)
£7.34
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- 1,760 left, ready to ship
- Final 100 unit(s) shipping from 21 September 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £0.306 | £6.12 |
*price indicative
- RS Stock No.:
- 174-0811
- Mfr. Part No.:
- RF2645-000
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Trip Current | 3.2A | |
| Product Type | Resettable Fuse | |
| Voltage | 30V ac | |
| Current Rating | 100A | |
| Time to Trip | 8s | |
| Hold Current | 1.6A | |
| Length | 8.9mm | |
| Height | 15.2mm | |
| Width | 3mm | |
| Minimum Resistance | 0.03Ω | |
| Maximum Resistance | 110mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Power Dissipation | 0.9W | |
| Standards/Approvals | UL, RoHS, CQC, CSA, TUV | |
| Series | RUEF | |
| Lead Orientation | Radial | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Trip Current 3.2A | ||
Product Type Resettable Fuse | ||
Voltage 30V ac | ||
Current Rating 100A | ||
Time to Trip 8s | ||
Hold Current 1.6A | ||
Length 8.9mm | ||
Height 15.2mm | ||
Width 3mm | ||
Minimum Resistance 0.03Ω | ||
Maximum Resistance 110mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Power Dissipation 0.9W | ||
Standards/Approvals UL, RoHS, CQC, CSA, TUV | ||
Series RUEF | ||
Lead Orientation Radial | ||
- COO (Country of Origin):
- CN
The Littlefuse Wickmann RUEF Series, 30V DC PolySwitch lead-free radial leaded resettable PPTC device has 3. 20A trip current and 8s trip time. It is generally used in applications like Satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports, battery packs, phones, fax machine, printers, analog and digital line cards.
Resettable and single-use overcurrent device
Wide range of form factor and termination methods
Devices compatible with high-volume electronics assembly
RoHS compliant
Lead-Free and Halogen-Free
