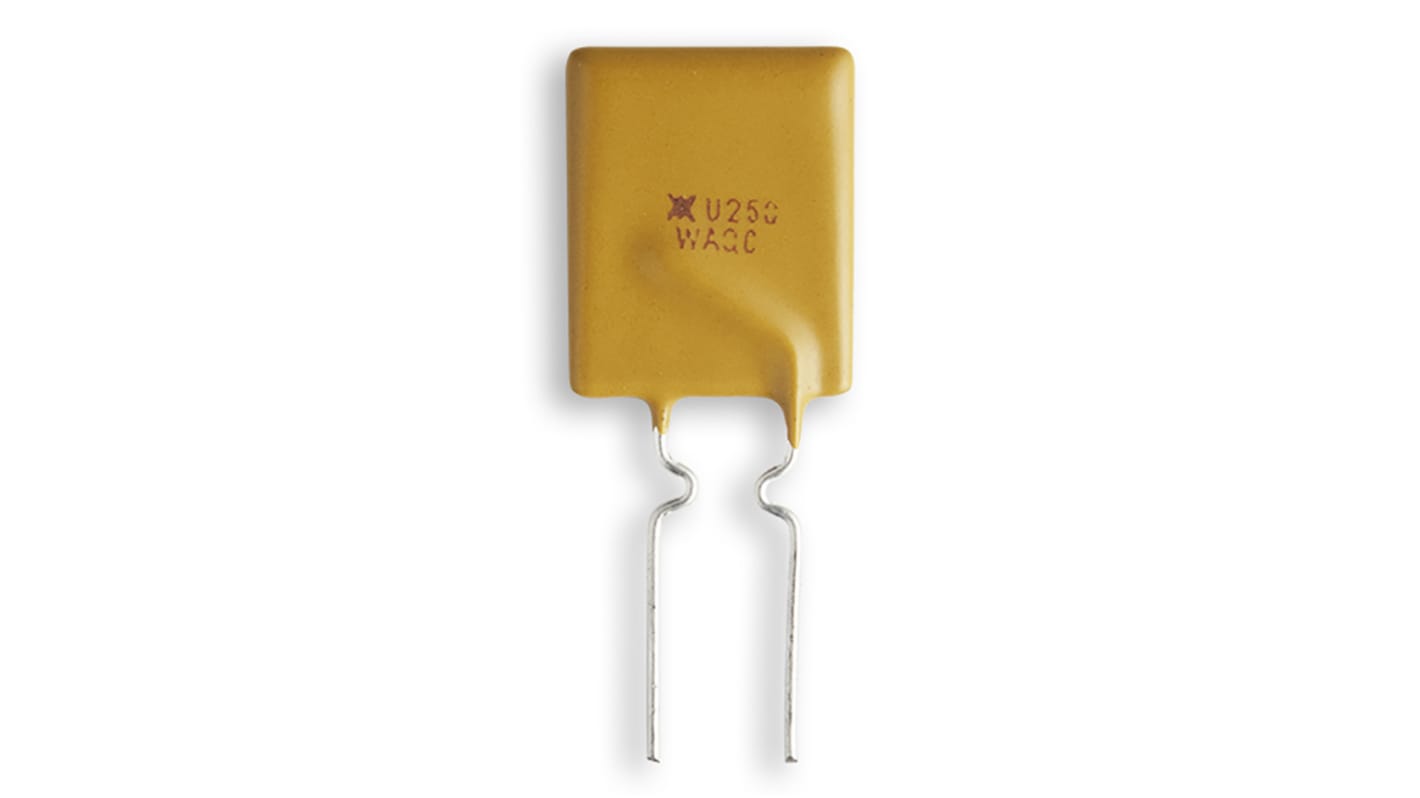

Wickmann 2.5 A Resettable Fuse, 30 V ac
- RS Stock No.:
- 174-0427
- Mfr. Part No.:
- RF2626-000
- Brand:
- Wickmann
Subtotal (1 box of 10000 units)*
£2,206.12
(exc. VAT)
£2,647.34
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £2,206.12 | £0.221 |
*price indicative
- RS Stock No.:
- 174-0427
- Mfr. Part No.:
- RF2626-000
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Trip Current | 5A | |
| Product Type | Resettable Fuse | |
| Voltage | 30 V ac | |
| Current Rating | 100 A | |
| Time to Trip | 10.3s | |
| Hold Current | 2.5A | |
| Length | 11.4mm | |
| Height | 18.3mm | |
| Width | 3 mm | |
| Minimum Resistance | 0.02Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Resistance | 70mΩ | |
| Power Dissipation | 1.2W | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS, TUV, UL, CSA, CQC | |
| Series | RUEF | |
| Lead Orientation | Radial | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Trip Current 5A | ||
Product Type Resettable Fuse | ||
Voltage 30 V ac | ||
Current Rating 100 A | ||
Time to Trip 10.3s | ||
Hold Current 2.5A | ||
Length 11.4mm | ||
Height 18.3mm | ||
Width 3 mm | ||
Minimum Resistance 0.02Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Resistance 70mΩ | ||
Power Dissipation 1.2W | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS, TUV, UL, CSA, CQC | ||
Series RUEF | ||
Lead Orientation Radial | ||
- COO (Country of Origin):
- CN
The Littlefuse Wickmann RUEF Series, 30V DC PolySwitch lead-free radial leaded resettable PPTC device has 5A trip current and 10. 3s trip time. It is generally used in applications like Satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports, battery packs, phones, fax machine, printers, analog and digital line cards.
Resettable and single-use overcurrent device
Wide range of form factor and termination methods
Devices compatible with high-volume electronics assembly
RoHS compliant
Lead-Free and Halogen-Free
