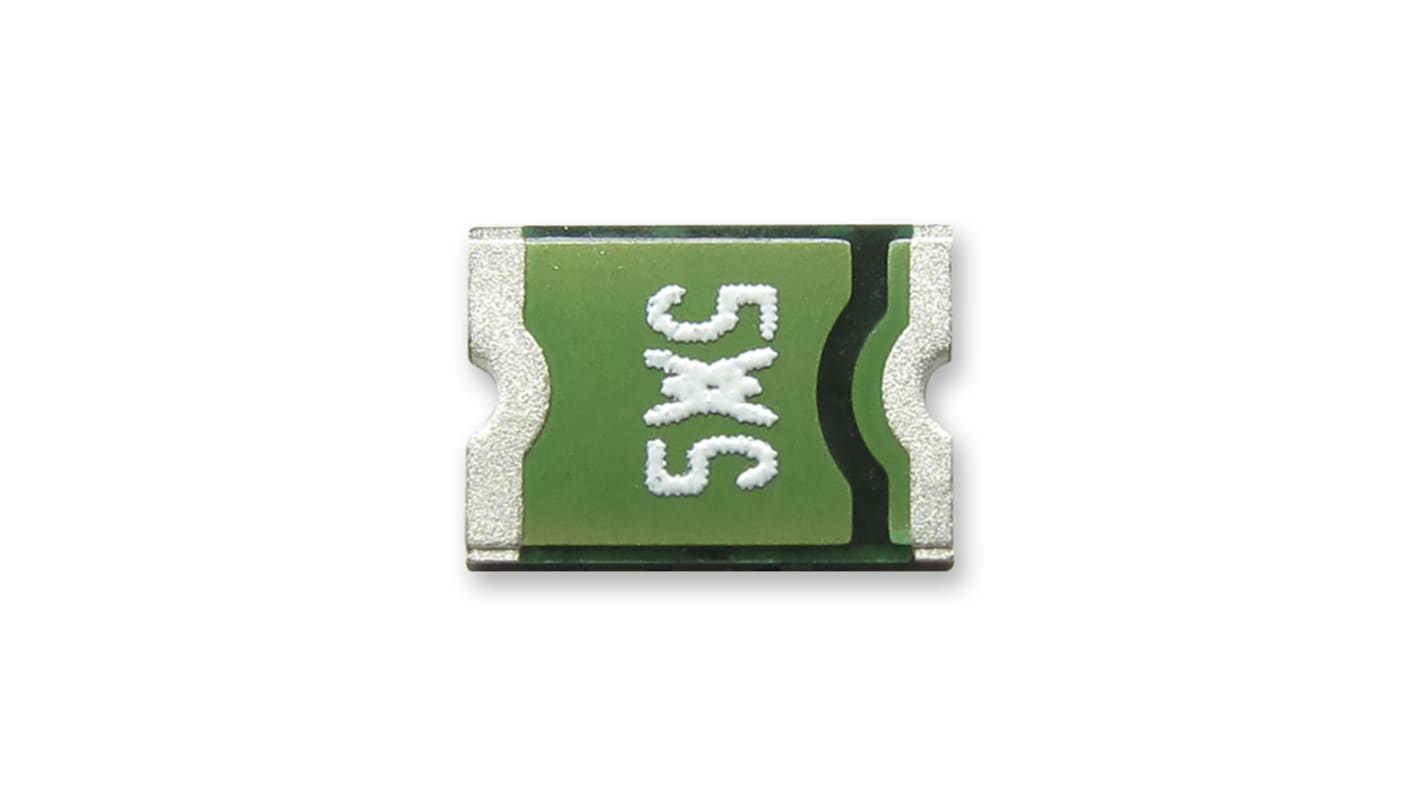

Wickmann 0.5A Resettable Fuse, 24V dc
- RS Stock No.:
- 174-0803
- Mfr. Part No.:
- RF1403-000
- Brand:
- Wickmann
140 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 20)
£0.185
(exc. VAT)
£0.222
(inc. VAT)
| Units | Per unit | Per Pack* |
| 20 + | £0.185 | £3.70 |
| *price indicative | ||
- RS Stock No.:
- 174-0803
- Mfr. Part No.:
- RF1403-000
- Brand:
- Wickmann
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Wide range of automotive surface-mount PPTC
The miniSMD series provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Features:
Low resistance
Benefits:
Compact Design and New HV Ratings
Smaller size helps reduce board space and cost
Many product choices optimizes design flexibility
Compatible with high-volume electronics assembly
Higher voltage ratings allow use in new applications
Applications:
Mobile Electronics and Batteries
Computer
Portable electronics
Multimedia
Game machines
Telephone and broadband
Automotive
Industrial controls
Battery
Low resistance
Benefits:
Compact Design and New HV Ratings
Smaller size helps reduce board space and cost
Many product choices optimizes design flexibility
Compatible with high-volume electronics assembly
Higher voltage ratings allow use in new applications
Applications:
Mobile Electronics and Batteries
Computer
Portable electronics
Multimedia
Game machines
Telephone and broadband
Automotive
Industrial controls
Battery
Specifications
Attribute | Value |
|---|---|
| Trip Current | 1A |
| Voltage Rating | 24V dc |
| Time to Trip | 0.15s |
| Hold Current | 0.5A |
| Maximum Current | 100 A |
| Length | 4.73mm |
| Height | 0.62mm |
| Width | 3.41mm |
| Minimum Resistance | 0.15Ω |
| Maximum Resistance | 1Ω |
| Power Dissipation | 0.8W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Package Size | 1812 |
| Body Material | Poly |
| Fuse Speed | F |
| Series | MINISMDC |
| Dimensions | 4.73 x 3.41 x 0.62mm |
| Operating Temperature Range | -40 → +85 °C |
