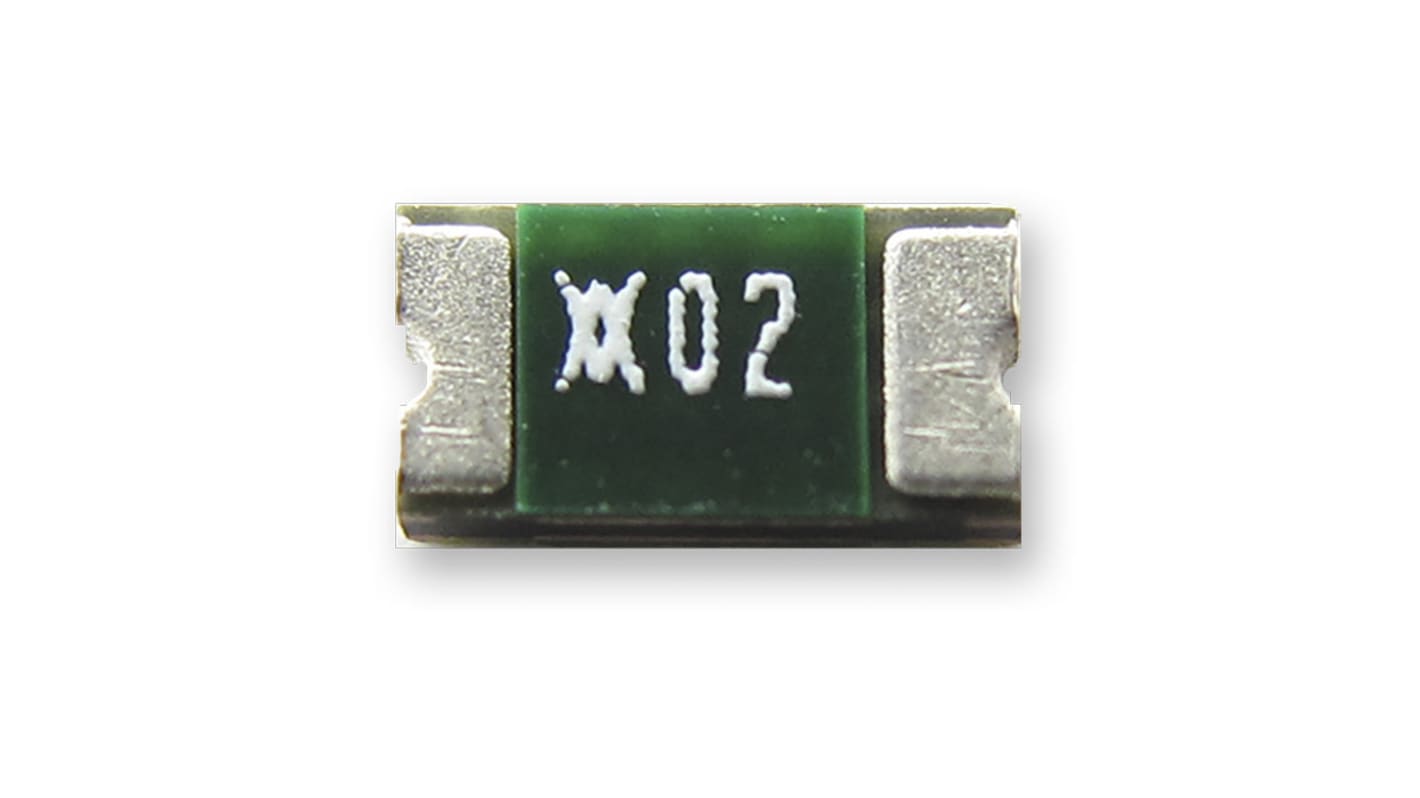

Wickmann 0.2A Resettable Fuse, 24V dc
- RS Stock No.:
- 174-0790
- Mfr. Part No.:
- RF1345-000
- Brand:
- Wickmann
Subtotal (1 pack of 20 units)*
£2.72
(exc. VAT)
£3.26
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 3,300 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £0.136 | £2.72 |
*price indicative
- RS Stock No.:
- 174-0790
- Mfr. Part No.:
- RF1345-000
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Trip Current | 420mA | |
| Voltage Rating | 24V dc | |
| Time to Trip | 0.1s | |
| Hold Current | 0.2A | |
| Maximum Current | 100 A | |
| Length | 3.4mm | |
| Height | 0.82mm | |
| Width | 1.8mm | |
| Minimum Resistance | 0.65Ω | |
| Maximum Resistance | 3.1Ω | |
| Power Dissipation | 0.6W | |
| Minimum Operating Temperature | -40°C | |
| Package Size | 1206 | |
| Maximum Operating Temperature | +85°C | |
| Body Material | Poly | |
| Operating Temperature Range | -40 → +85 °C | |
| Dimensions | 3.4 x 1.8 x 0.82mm | |
| Series | NANOSMDC | |
| Fuse Speed | F | |
Select all | ||
|---|---|---|
Brand Wickmann | ||
Trip Current 420mA | ||
Voltage Rating 24V dc | ||
Time to Trip 0.1s | ||
Hold Current 0.2A | ||
Maximum Current 100 A | ||
Length 3.4mm | ||
Height 0.82mm | ||
Width 1.8mm | ||
Minimum Resistance 0.65Ω | ||
Maximum Resistance 3.1Ω | ||
Power Dissipation 0.6W | ||
Minimum Operating Temperature -40°C | ||
Package Size 1206 | ||
Maximum Operating Temperature +85°C | ||
Body Material Poly | ||
Operating Temperature Range -40 → +85 °C | ||
Dimensions 3.4 x 1.8 x 0.82mm | ||
Series NANOSMDC | ||
Fuse Speed F | ||
- COO (Country of Origin):
- CN
Wide range of automotive surface-mount PPTC
The nanoSMD series provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Features:
Low resistance
Benefits:
Compact Design and New HV Ratings
Smaller size helps reduce board space and cost
Many product choices optimizes design flexibility
Compatible with high-volume electronics assembly
Higher voltage ratings allow use in new applications
Applications:
Mobile Electronics and Batteries
Computer
Portable electronics
Multimedia
Game machines
Telephone and broadband
Automotive
Industrial controls
Battery
