Wickmann Resettable Fuse, 24V dc
- RS Stock No.:
- 174-0469
- Mfr. Part No.:
- RF1256-000
- Brand:
- Wickmann
Bulk discount available
Subtotal (1 reel of 5000 units)*
£806.42
(exc. VAT)
£967.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 1 | £806.42 | £0.161 |
| 2 - 4 | £781.21 | £0.156 |
| 5 + | £757.54 | £0.152 |
*price indicative
- RS Stock No.:
- 174-0469
- Mfr. Part No.:
- RF1256-000
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Voltage Rating | 24V dc | |
| Length | 1.7mm | |
| Height | 0.55mm | |
| Width | 0.95mm | |
| Minimum Operating Temperature | -55°C | |
| Package Size | 0603 | |
| Maximum Operating Temperature | +125°C | |
| Dimensions | 1.7 x 0.95 x 0.55mm | |
| Operating Temperature Range | -55 → +125 °C | |
| Series | PESD | |
| Fuse Speed | F | |
Select all | ||
|---|---|---|
Brand Wickmann | ||
Voltage Rating 24V dc | ||
Length 1.7mm | ||
Height 0.55mm | ||
Width 0.95mm | ||
Minimum Operating Temperature -55°C | ||
Package Size 0603 | ||
Maximum Operating Temperature +125°C | ||
Dimensions 1.7 x 0.95 x 0.55mm | ||
Operating Temperature Range -55 → +125 °C | ||
Series PESD | ||
Fuse Speed F | ||
- COO (Country of Origin):
- CN

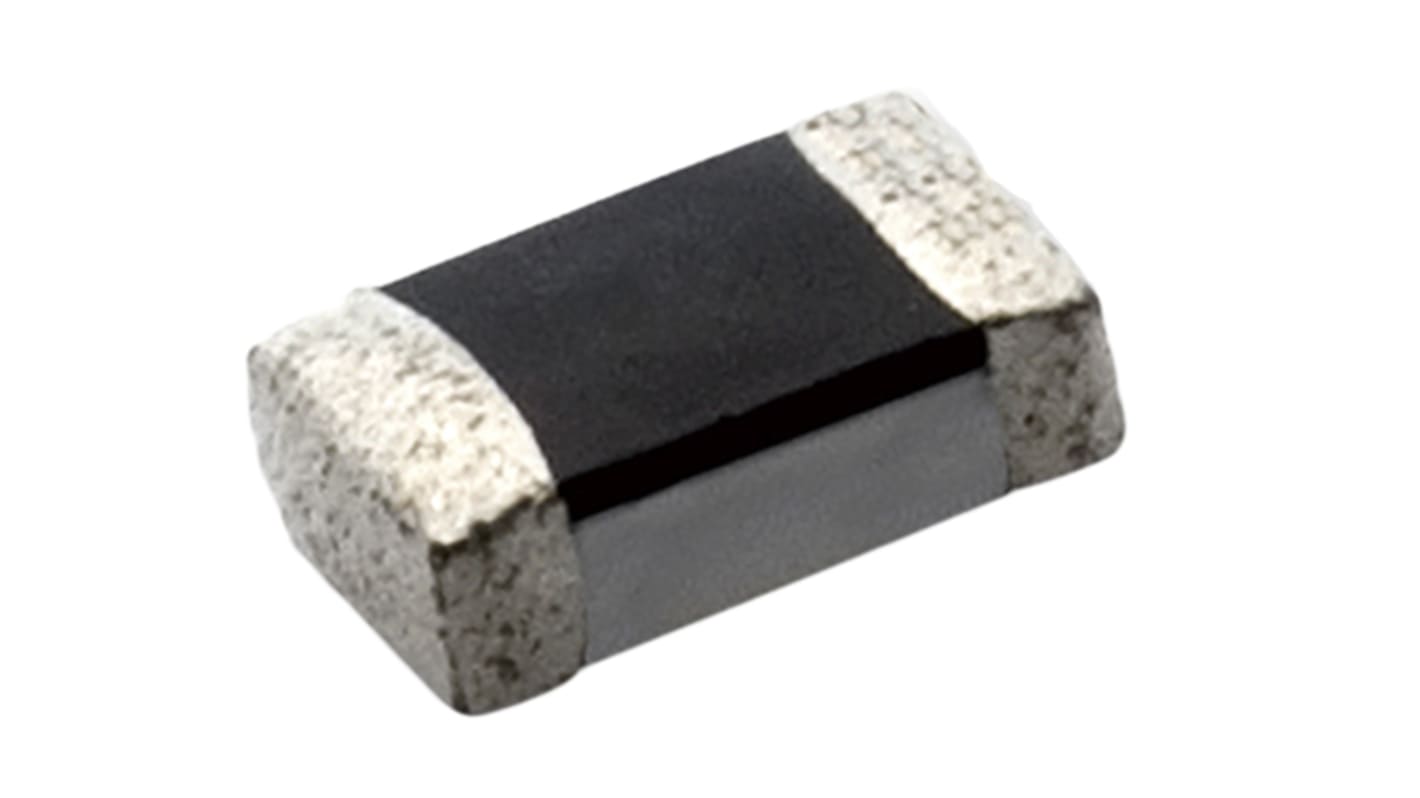

The Littlefuse Wickmann PESD series ESD protector is a 24V DC surge protection device that provides overvoltage protection. It offers many advantages over traditional protection devices, such as multi layer varistors (MLVs), low capacitance. It is generally used in applications like HDMI 1. 3 interfaces, LCD and plasma TV, cellular phones, antennas, portable video player, GPS system, etc.
RoHS compliant
Lead & Halogen free
0.25 pF (typ) capacitance
Low-leakage current
Low-clamping voltage
Fast response time (< 1ns)
Capable of withstanding numerous ESD strikes
Compatible with standard reflow installation procedures
Thick film technology
Bi-directional protection
AEC-Q200 qualified
Lead & Halogen free
0.25 pF (typ) capacitance
Low-leakage current
Low-clamping voltage
Fast response time (< 1ns)
Capable of withstanding numerous ESD strikes
Compatible with standard reflow installation procedures
Thick film technology
Bi-directional protection
AEC-Q200 qualified
