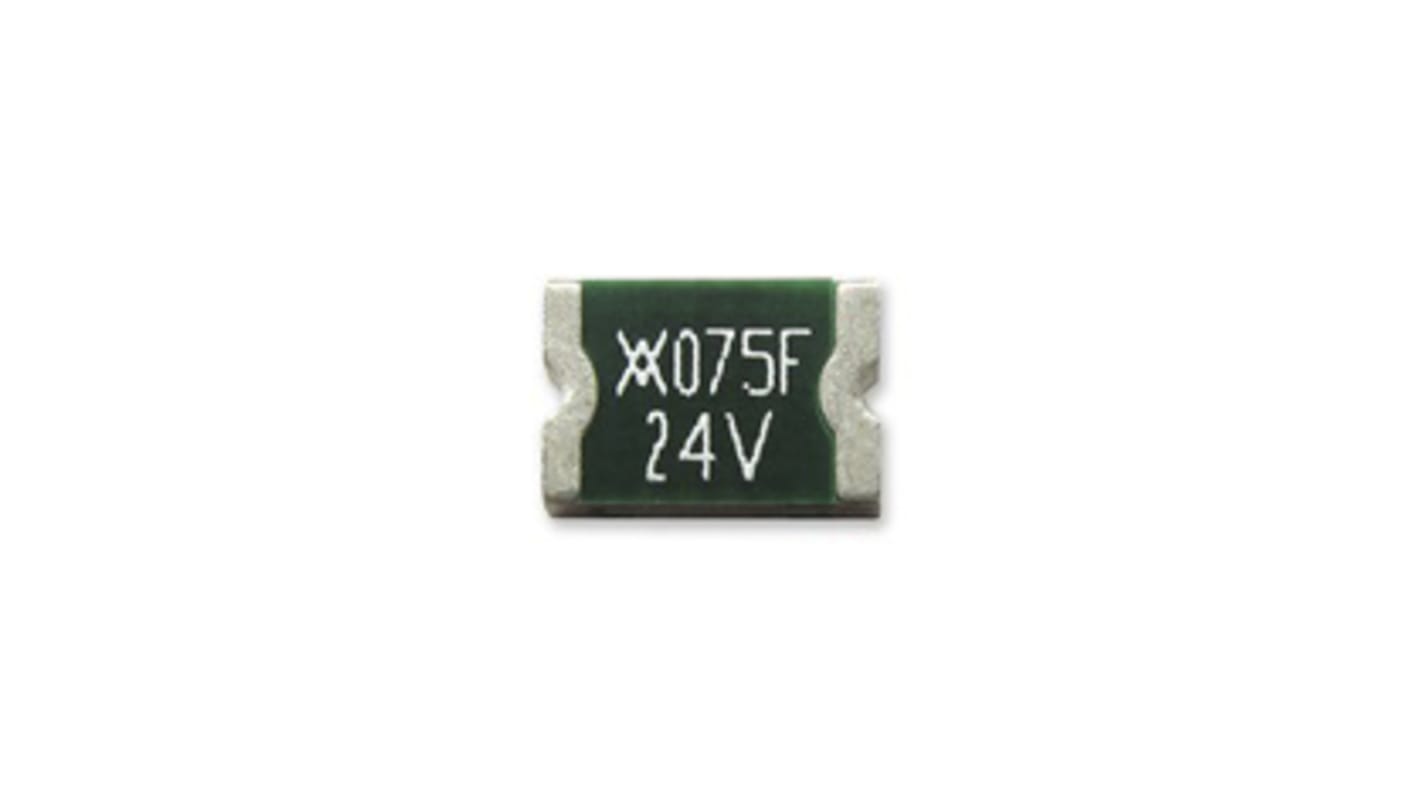

Wickmann 0.75A Resettable Fuse, 24V dc
- RS Stock No.:
- 174-0394
- Mfr. Part No.:
- RF1181-000
- Brand:
- Wickmann
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 174-0394
- Mfr. Part No.:
- RF1181-000
- Brand:
- Wickmann
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Trip Current | 1.5A | |
| Voltage Rating | 24V dc | |
| Time to Trip | 0.3s | |
| Hold Current | 0.75A | |
| Maximum Current | 40 A | |
| Length | 4.83mm | |
| Height | 1.46mm | |
| Width | 3.41mm | |
| Minimum Resistance | 0.09Ω | |
| Maximum Resistance | 290mΩ | |
| Power Dissipation | 0.8W | |
| Minimum Operating Temperature | -40°C | |
| Package Size | 1812 | |
| Maximum Operating Temperature | +85°C | |
| Series | MINISMDC | |
| Operating Temperature Range | -40 → +85 °C | |
| Fuse Speed | F | |
| Body Material | Poly | |
| Dimensions | 4.83 x 3.41 x 1.46mm | |
Select all | ||
|---|---|---|
Brand Wickmann | ||
Trip Current 1.5A | ||
Voltage Rating 24V dc | ||
Time to Trip 0.3s | ||
Hold Current 0.75A | ||
Maximum Current 40 A | ||
Length 4.83mm | ||
Height 1.46mm | ||
Width 3.41mm | ||
Minimum Resistance 0.09Ω | ||
Maximum Resistance 290mΩ | ||
Power Dissipation 0.8W | ||
Minimum Operating Temperature -40°C | ||
Package Size 1812 | ||
Maximum Operating Temperature +85°C | ||
Series MINISMDC | ||
Operating Temperature Range -40 → +85 °C | ||
Fuse Speed F | ||
Body Material Poly | ||
Dimensions 4.83 x 3.41 x 1.46mm | ||
