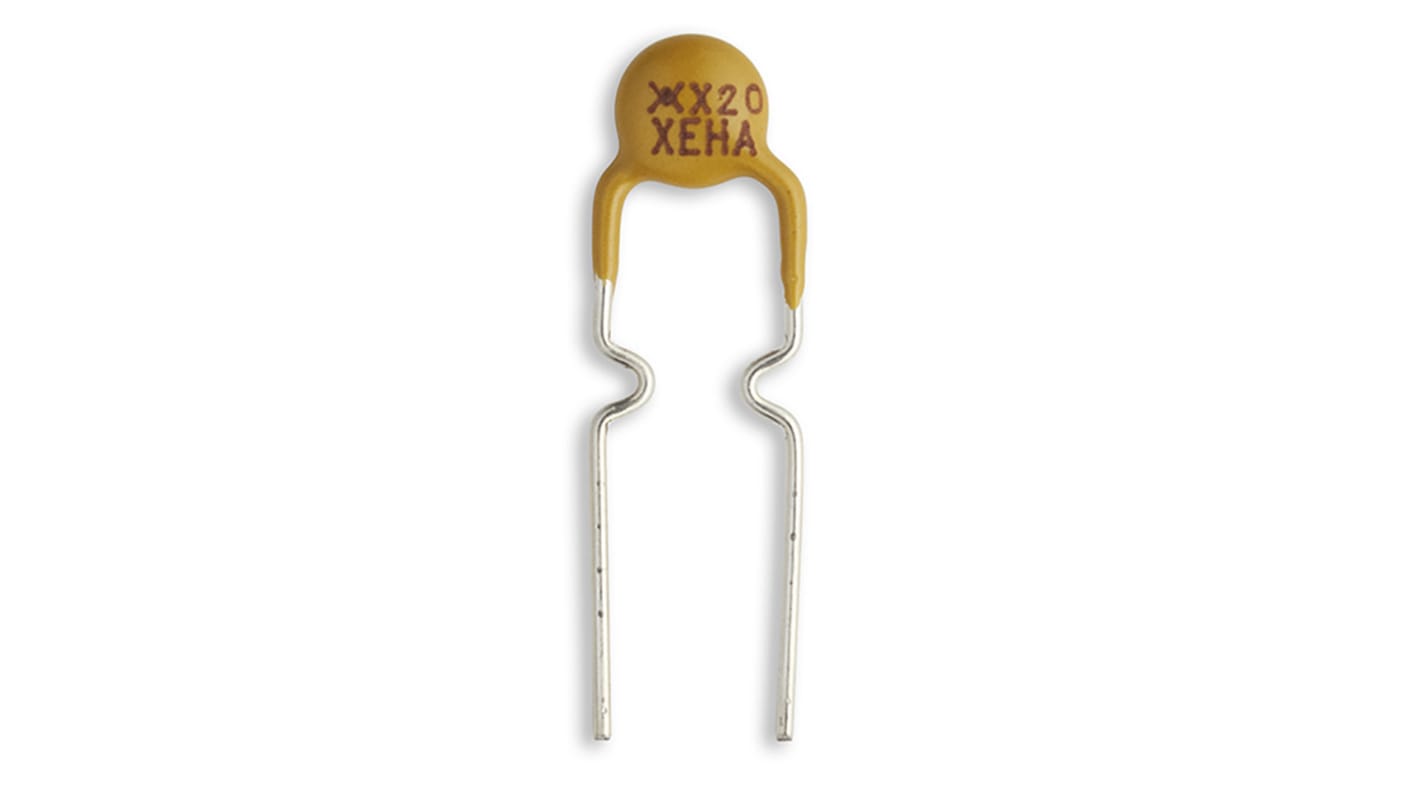

Wickmann 0.2 A Resettable Fuse, 72 V dc, 72 V ac
- RS Stock No.:
- 174-0443
- Mfr. Part No.:
- RF2564-000
- Brand:
- Wickmann
Subtotal (1 box of 10000 units)*
£1,833.63
(exc. VAT)
£2,200.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £1,833.63 | £0.183 |
*price indicative
- RS Stock No.:
- 174-0443
- Mfr. Part No.:
- RF2564-000
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Trip Current | 400mA | |
| Product Type | Resettable Fuse | |
| Voltage | 72 V dc, 72 V ac | |
| Current Rating | 40 A | |
| Time to Trip | 2.2s | |
| Hold Current | 0.2A | |
| Length | 7.4mm | |
| Height | 11.7mm | |
| Width | 3 mm | |
| Minimum Resistance | 1.83Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Resistance | 4.4Ω | |
| Power Dissipation | 0.41W | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL, CSA, RoHS, TUV | |
| Series | RXEF | |
| Lead Orientation | Radial | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Trip Current 400mA | ||
Product Type Resettable Fuse | ||
Voltage 72 V dc, 72 V ac | ||
Current Rating 40 A | ||
Time to Trip 2.2s | ||
Hold Current 0.2A | ||
Length 7.4mm | ||
Height 11.7mm | ||
Width 3 mm | ||
Minimum Resistance 1.83Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Resistance 4.4Ω | ||
Power Dissipation 0.41W | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL, CSA, RoHS, TUV | ||
Series RXEF | ||
Lead Orientation Radial | ||
- COO (Country of Origin):
- CN
The Littlefuse Wickmann RXEF Series, 72V DC PolySwitch lead-free radial leaded resettable PPTC device has 0. 40A trip current and 2. 2s trip time. It is generally used in applications like Satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports, battery packs, phones, fax machine, printers, analog and digital line cards.
Resettable and single-use overcurrent device
Wide range of form factor and termination methods
Devices compatible with high-volume electronics assembly
RoHS compliant
Lead-Free and Halogen-Free
