- RS Stock No.:
- 349-2884
- Mfr. Part No.:

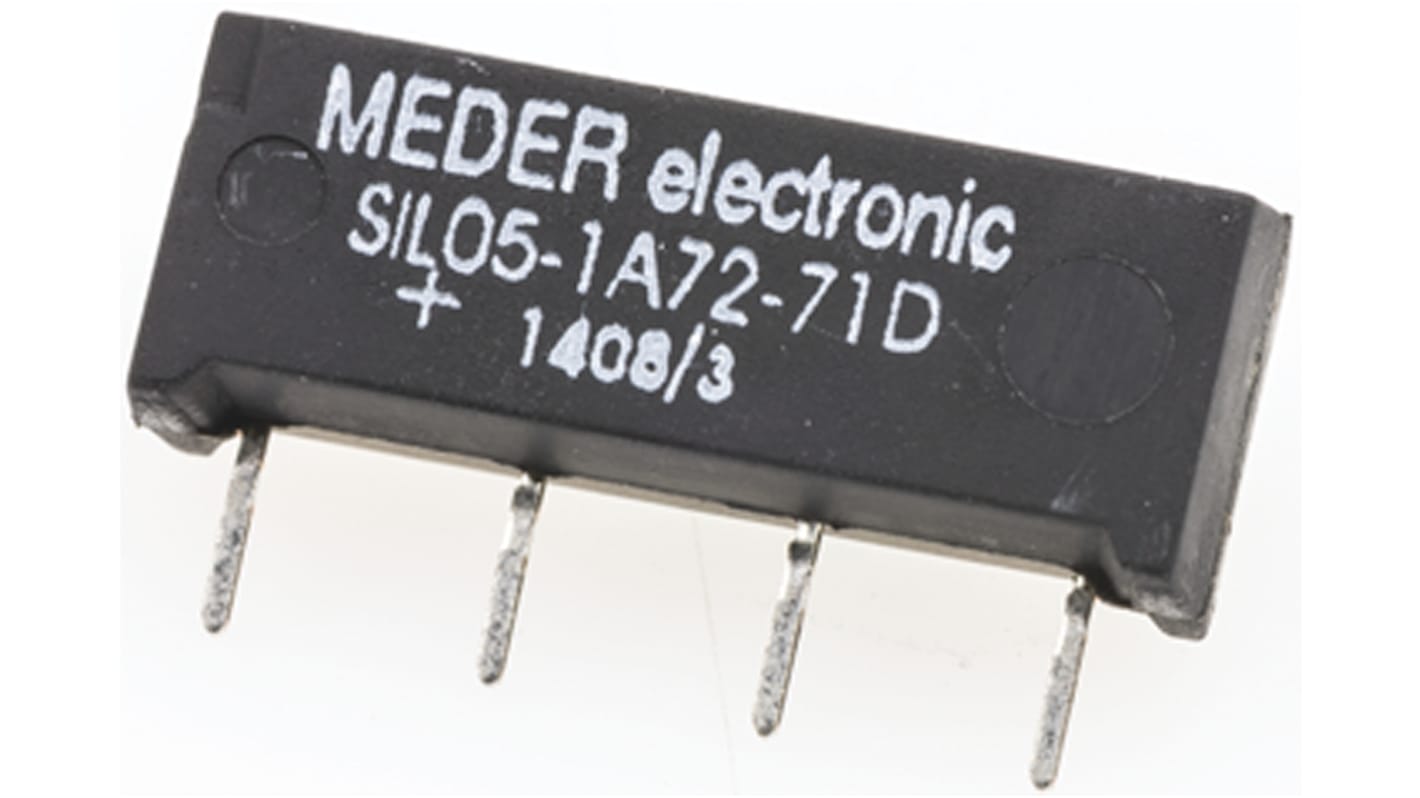

- SIL05-1A72-71D
- Brand:
- Meder
1336 In stock - FREE next working day delivery available
Added
Price Each
£3.87
(exc. VAT)
£4.64
(inc. VAT)
Units | Per unit |
1 - 24 | £3.87 |
25 - 99 | £3.56 |
100 - 249 | £3.26 |
250 - 499 | £3.01 |
500 + | £2.79 |
- RS Stock No.:
- 349-2884
- Mfr. Part No.:
- SIL05-1A72-71D
- Brand:
- Meder
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
SPNO SIL (5 x 19 x 8)
Fully sealed construction
Electrical Life: 5 x 106 operations
Contact Material Rh
Switching voltage 200Vac
Vibration resistance 10 - 2000Hz, 20g
Electrical Life: 5 x 106 operations
Contact Material Rh
Switching voltage 200Vac
Vibration resistance 10 - 2000Hz, 20g
Approvals
VDE, UL
Approvals
VDE; UL
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Coil Voltage | 5V dc |
Mounting Type | PCB Mount |
Maximum Switching Current DC | 1 A |
Maximum Switching Voltage AC | 200V ac |
Maximum Switching Voltage DC | 200V dc |
Coil Power | 50mW |
Coil Resistance | 500Ω |
Length | 19.8mm |
Height | 7.8mm |
Depth | 5.08mm |
Dimensions | 19.8 x 5.08 x 7.8mm |
Isolation Coil To Contact | 1.5kV dc |
Terminal Type | Through Hole |
Maximum Operating Temperature | +70°C |
Operating Temperature Range | -20 → +70°C |
Maximum Switching Power DC | 15 W |
Contact Resistance | 150 mΩ |
Operating Time Including Bounce | 0.5ms |
Life | 1000000000 (Electrical) cycles |
Minimum Operating Temperature | -20°C |
