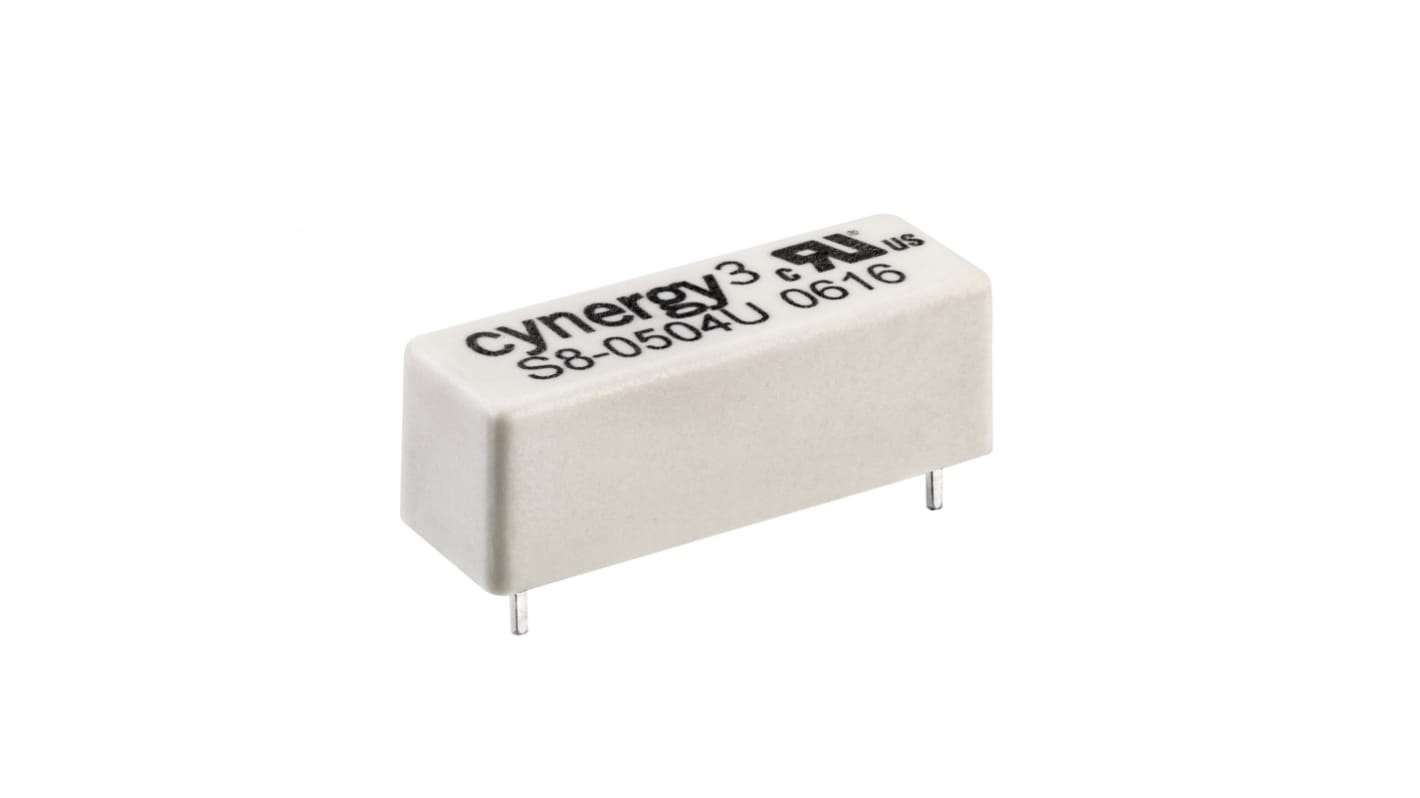

Sensata Cynergy3 PCB Mount Reed Relay, 5V dc Coil, SPST, 1000V Max, 1 A Max, 120Ω

View all Reed Relays
Bulk discount available

Subtotal (1 unit)*

£19.49

(exc. VAT)

£23.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 187 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£19.49
25 - 49£18.74
50 - 99£18.04
100 - 249£17.39
250 +£16.81

*price indicative

RS Stock No.:
124-5136
Mfr. Part No.:
S8-0504VU/RS
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Contact Configuration

SPST

Coil Voltage

5V dc

Mounting Type

PCB Mount

Maximum Switching Current AC

1 A

Maximum Switching Current DC

1 A

Maximum Switching Voltage AC

1000V

Maximum Switching Voltage DC

1000V

Coil Power

100W

Coil Resistance

120Ω

Length

30mm

Height

12mm

Depth

10mm

Dimensions

30 x 10 x 12mm

Isolation Coil To Contact

7kV

Relay Switching Classification

General Purpose Relay

Number of Poles

1

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Standards Met

UL Approved

Contact Material

Rhodium

Terminal Type

PCB Pin

Life

10000000 (100 W) operations, 1000000000 (Dry) operations

Operating Time Including Bounce

1ms

Maximum Switching Power DC

100 W

Operating Temperature Range

-40 → +85°C

Special Features

Space Saving

Contact Resistance

150 mΩ

COO (Country of Origin):
CN

Sensata Cynergy3 Reed Relay, SPNO, 12mm - S8 Series - S8-0504VU/RS


Direct your high-voltage reed switch with this Sensata Cynergy3 S8 series reed relay. It uses its contact pins to efficiently activate the electromagnet in an attached switch. The contact pins are made from durable rhodium that remains stable in high heat and offers corrosion resistance, so you can use this unit in damp environments. The compact design of the relay makes it suitable for high-voltage applications where there isn't a lot of space available.

Features & Benefits


• Standard pins for direct installation on your printed circuit board (PCB)
• Tight seal stops dust from getting in
• Operating range of -40°C to +85°C for use in extreme temperatures
• Approximate lifespan of 10,000,000 operations makes for a long-lasting product

What's the contact configuration of this reed relay?


This reed relay has a contact configuration of SPNO (single pole, normally open). The 'normally open' configuration allows the relay to complete the circuit and directly activate the reed switch when triggered.

How quickly does this relay operate?


Including bounce, this relay has a 1-millisecond (ms) operating time and a 0.5ms release time.
