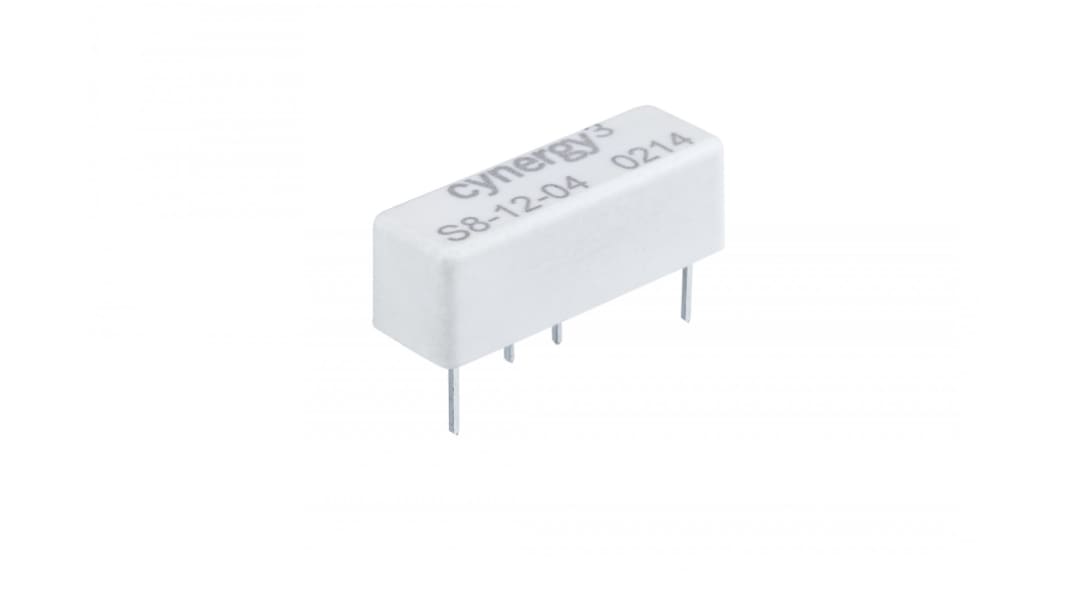

Sensata / Cynergy3 PCB Reed Relay, 12 V dc Coil, SPST, 1000 V dc Max, 1 A Max, 750 Ω

RS Stock No.:: 124-5064
Mfr. Part No.:: S8-1204V/RS
Brand:: Sensata / Cynergy3

Sensata / Cynergy3 PCB Reed Relay, 12 V dc Coil, SPST, 1000 V dc Max, 1 A Max, 750 Ω

Bulk discount available

Subtotal (1 unit)*

£15.92

(exc. VAT)

£19.10

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 - 24	£15.92
25 - 49	£15.12
50 - 99	£14.38
100 - 249	£13.68
250 +	£12.96

*price indicative

RS Stock No.:: 124-5064
Mfr. Part No.:: S8-1204V/RS
Brand:: Sensata / Cynergy3

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Cynergy3
	Product Type	Reed Relay
	Contact Configuration	SPST
	Coil Voltage	12 V dc
	Mount Type	PCB
	Switching Current	1 A
	Switching AC Voltage	1000 V ac
	Switching DC Voltage	1000 V dc
	Coil Power	100VA
	Coil Resistance	750Ω
	Terminal Type	PCB Terminal
	Minimum Operating Temperature	-40°C
	Switching Power	100VA
	Operating Time	1ms
	Maximum Operating Temperature	85°C
	Length	30mm
	Standards/Approvals	UR
	Series	S8
	Width	10 mm
	Height	12mm
	Isolation Coil To Contact	7kV
	Contact Resistance	150mΩ
	Latching	No

	Select all
	Brand Sensata / Cynergy3
	Product Type Reed Relay
	Contact Configuration SPST
	Coil Voltage 12 V dc
	Mount Type PCB
	Switching Current 1 A
	Switching AC Voltage 1000 V ac
	Switching DC Voltage 1000 V dc
	Coil Power 100VA
	Coil Resistance 750Ω
	Terminal Type PCB Terminal
	Minimum Operating Temperature -40°C
	Switching Power 100VA
	Operating Time 1ms
	Maximum Operating Temperature 85°C
	Length 30mm
	Standards/Approvals UR
	Series S8
	Width 10 mm
	Height 12mm
	Isolation Coil To Contact 7kV
	Contact Resistance 150mΩ
	Latching No

COO (Country of Origin):: GB

Sensata Cynergy3 SPNO Reed Relay, 12V DC, 750Ω - S8 Series - S8-1204V/RS

If you're looking for a reliable reed relay but have limited space on your PCB (printed circuit board), go for this miniature option from Sensata Cynergy3. It has rhodium contacts that ensure a strong connection thanks to their low-contact resistance. The design of this relay, with coil pins at the centre and contact pins at the end, improves isolation between the two, despite the unit's compact size. Choose it for applications where both space efficiency and reliability are important, such as cardiac defibrillators and test equipment.

Features and Benefits

• Durable rhodium contacts give a long life cycle of ten million wet and one billion dry operations

• Large operating temperature range (-40°C to +85°C) makes it suitable for harsher environments

• Small size means a fast operating time of 1ms (millisecond) including bounce

What's the maximum switching voltage of this relay?

Despite its compact dimensions, this relay has a high maximum switching voltage of 1000V.

How is the reed switch in this relay configured?

The reed switch is configured as normally open – that means the contacts are separated (or open) unless the electromagnetic coil is powered on.

Miniature high voltage relay

The Cynergy3 S8 series miniature high voltage reed relay is perfect for applications where space saving is a prime consideration. To give improved isolation between the high voltage contacts and the low voltage coil S8 miniature reed relays have the coil pins positioned near the centre of the relay while the contact pins are near the ends.

Space saving package

Isolation Voltage across contacts 4kV or 5kV (dependant on coil voltage)

Isolation Voltage 7kV contact to coil

2.5A carry current
