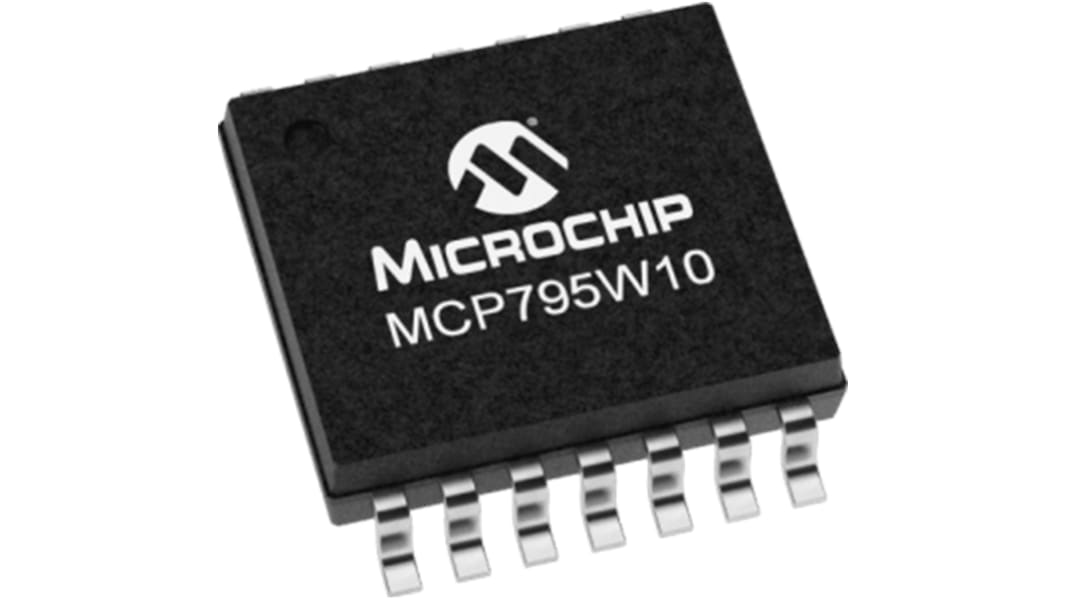

Microchip MCP795W10-I/SL, 14-Pin SOIC Surface Mount
- RS Stock No.:
- 177-0905
- Mfr. Part No.:
- MCP795W10-I/SL
- Brand:
- Microchip
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 177-0905
- Mfr. Part No.:
- MCP795W10-I/SL
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Time Format | HH:MM:SS | |
| Mount Type | Surface Mount | |
| Package Type | SOIC | |
| Pin Count | 14 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 3.9mm | |
| Height | 1.5mm | |
| Length | 8.65mm | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Time Format HH:MM:SS | ||
Mount Type Surface Mount | ||
Package Type SOIC | ||
Pin Count 14 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 3.9mm | ||
Height 1.5mm | ||
Length 8.65mm | ||
- COO (Country of Origin):
- US
The MCP795W10 SPI RTCC is highly integrated with memory and Advanced features normally found in higher priced devices. By starting with a Basic real-time clock, digital trimming was added for higher accuracy, a battery switchover for backup power, a time stamp to log power failures and three types of memory, which includes SRAM, EEPROM and a blank unique ID in a locked section of EEPROM that can also be ordered with a 48-bit or 64-bit MAC Address.
VCC Min = 1.8V
Icc < 1 μA Typical Standby Current
VBAT Min = 1.3V
Ibat < 700nA Typical Timekeeping & SRAM Retention Current
VCC to VBAT (VCC Lost)
VBAT to VCC (VCC Restored)
Low Power Operation
VCC Min = 1.8V
Icc < 1 μA Typical Standby Current
Low Backup Power
VBAT Min = 1.3V
Ibat < 700nA Typical Timekeeping & SRAM Retention Current
Automatic Battery Switchover with Timestamp
VCC to VBAT (VCC Lost)
VBAT to VCC (VCC Restored)
