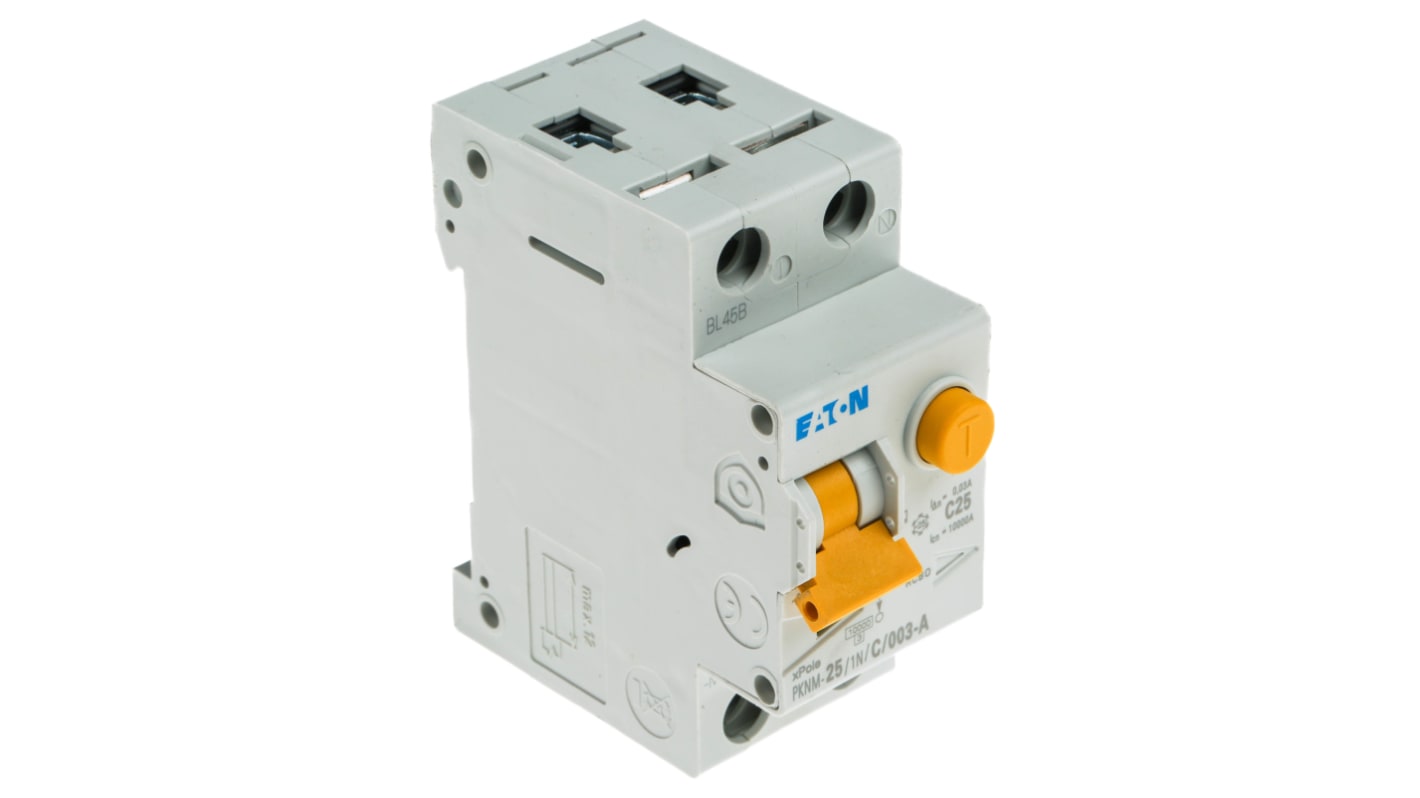

Eaton PKNM Series Residual Current Device, 25A, 2-Pole, 30 mA, Type C, 10 kA 230V ac
- RS Stock No.:
- 922-8743
- Mfr. Part No.:
- 236279 PKNM-25/1N/C/003-A-MW
- Brand:
- Eaton
Subtotal (1 unit)*
£111.48
(exc. VAT)
£133.78
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4 unit(s) shipping from 09 June 2026
- Plus 9 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £111.48 |
*price indicative
- RS Stock No.:
- 922-8743
- Mfr. Part No.:
- 236279 PKNM-25/1N/C/003-A-MW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Residual Current Device | |
| Current Rating | 25A | |
| Number of Poles | 2 | |
| Range | PKNM | |
| Series | PKNM | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Standards/Approvals | CE | |
| Width | 70mm | |
| Depth | 70.5mm | |
| Height | 80mm | |
| Breaking Capacity | 10kA | |
| Break Time | Instantaneous | |
| Earth Leakage Protection Type | Type A | |
| Application | Industrial | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Electromagnetic | |
| Rated AC Voltage | 230V ac | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Residual Current Device | ||
Current Rating 25A | ||
Number of Poles 2 | ||
Range PKNM | ||
Series PKNM | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Standards/Approvals CE | ||
Width 70mm | ||
Depth 70.5mm | ||
Height 80mm | ||
Breaking Capacity 10kA | ||
Break Time Instantaneous | ||
Earth Leakage Protection Type Type A | ||
Application Industrial | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Electromagnetic | ||
Rated AC Voltage 230V ac | ||
- COO (Country of Origin):
- RO
Eaton RCD, DIN Rail Mounting, Screw Terminals - PKNM Series - 236279 PKNM-25/1N/C/003-A-MW
Install this RCD from Eaton to stay safe from electric shocks caused by current leakage. With its type-C tripping characteristics, it allows inrush currents sufficient to start up equipment but will trip instantaneously if its 25A current rating is exceeded by five to ten times. Trip sensitivity of 30mA means it springs into action even when the current leakage is very small. That makes it ideal for guarding against ground faults in residential settings or small commercial operations such as B&Bs or doctors' surgeries. Once you've found and rectified a fault, resetting the RCD is a simple matter of flicking the toggle switch.
Features & Benefits
• DIN rail mounting style to help you build an organised system
• Red and green contact position indicators for easy monitoring
• Screw-terminal method for vibration-resistant connections
• Single-pole plus neutral configuration protects both the phase and neutral conductors in single-phase loads
What equipment can I make safe with a 25A RCD?
A 25A RCD is a versatile option that's the ideal protector to install in circuits powering everything from IT hardware and heating systems to outdoor lighting and power tools in small workshops.
Note
Eaton formerly known as Moeller
