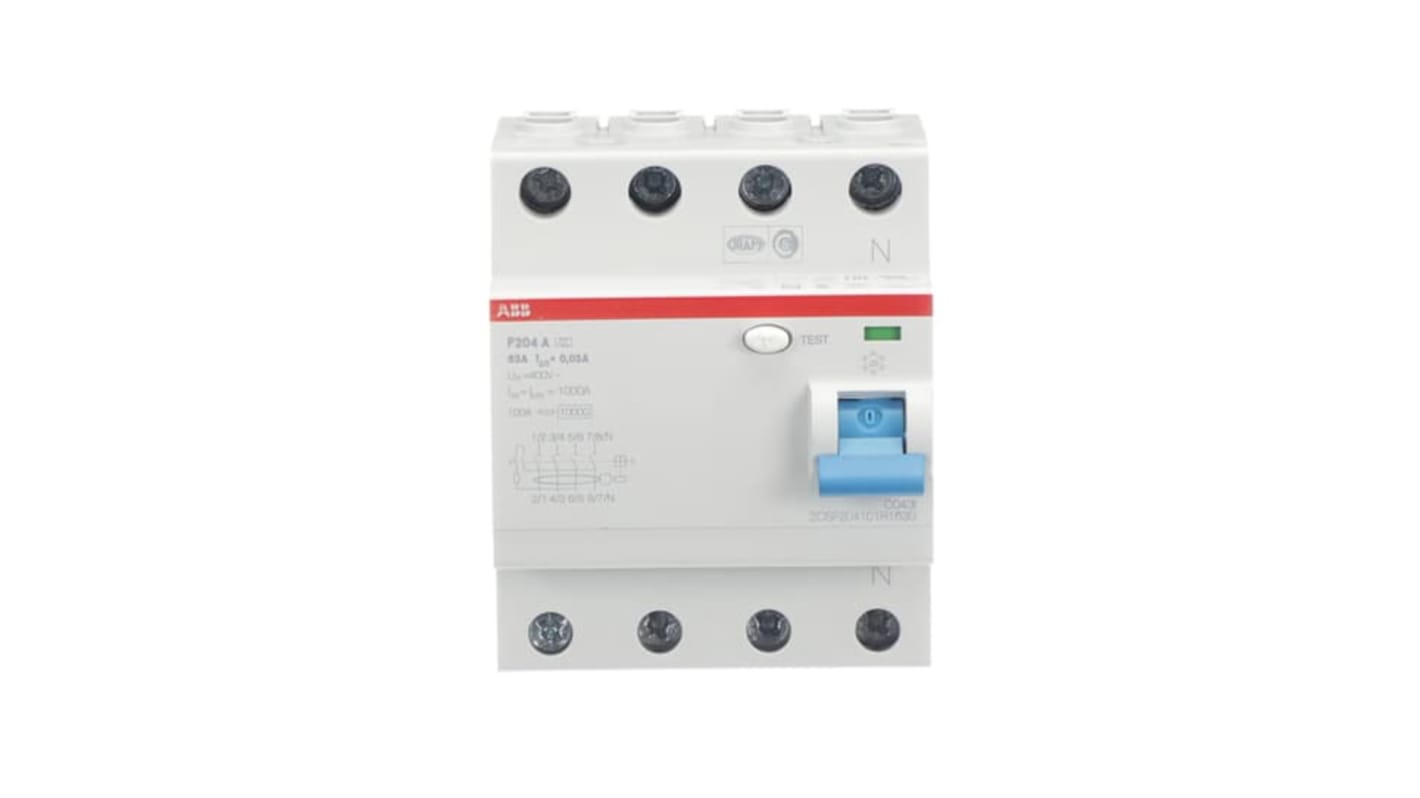

ABB F200 RCCB, 63A, 4 Pole, 30mA, Type A, 230/400V ac
- RS Stock No.:
- 488-6404
- Mfr. Part No.:
- 2CSF204101R1630 - F204A-63/0.03
- Brand:
- ABB
Subtotal (1 unit)*
£204.42
(exc. VAT)
£245.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £204.42 |
*price indicative
- RS Stock No.:
- 488-6404
- Mfr. Part No.:
- 2CSF204101R1630 - F204A-63/0.03
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Circuit Breaker Type | RCCB | |
| Current Rating | 63A | |
| Number of Poles | 4 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type A | |
| Voltage Rating | 230/400V ac | |
| Series | F200 | |
| Standards Met | RoHS Compliant, UL Recognized | |
| Earth Leakage Protection Type | A | |
| Overall Dimensions | 69 x 70 x 85mm | |
| Reset Actuator Type | Lever | |
| Breaking Capacity at Maximum Voltage Rating | 1 kA | |
| Rated AC Voltage | 230/400V | |
| Mounting Style | DIN Rail Mount | |
| Overall Length | 85mm | |
| Overall Depth | 69mm | |
| Overall Width | 70mm | |
Select all | ||
|---|---|---|
Brand ABB | ||
Circuit Breaker Type RCCB | ||
Current Rating 63A | ||
Number of Poles 4 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type A | ||
Voltage Rating 230/400V ac | ||
Series F200 | ||
Standards Met RoHS Compliant, UL Recognized | ||
Earth Leakage Protection Type A | ||
Overall Dimensions 69 x 70 x 85mm | ||
Reset Actuator Type Lever | ||
Breaking Capacity at Maximum Voltage Rating 1 kA | ||
Rated AC Voltage 230/400V | ||
Mounting Style DIN Rail Mount | ||
Overall Length 85mm | ||
Overall Depth 69mm | ||
Overall Width 70mm | ||
- COO (Country of Origin):
- IT
ABB RCCB, 10kA Conditional Short-Circuit Current Rating, 360g Weight - F200 Series - 2CSF204101R1630 - F204A-63/0.03
Keep earth leakages away from your electrical equipment with this RCCB from ABB. It keeps a keen eye on your network, cutting power in the event of a ground fault and protecting against electric shocks or fire outbreaks. The unit's four-pole construction means it's the right choice for use with three-phase circuits. It handles up to 4kV of impulse voltage without experiencing damage, so you'll find it useful in volatile settings.
Features & Benefits
• Trip sensitivity of 30mA for quick reactions to detected faults
• Current rating of 63A means it fits the bill for heavy-duty applications
• Light weight of 360g makes it easy to handle during installation and puts minimal pressure on your mounting rail
• Withstands an operating temperature range between -25°C and +55°C, making it safe for use in challenging settings
• DIN rail mounting is simple and tool-free, saving time and hassle
• Current rating of 63A means it fits the bill for heavy-duty applications
• Light weight of 360g makes it easy to handle during installation and puts minimal pressure on your mounting rail
• Withstands an operating temperature range between -25°C and +55°C, making it safe for use in challenging settings
• DIN rail mounting is simple and tool-free, saving time and hassle
Applications
• HVAC equipment
• Robotics and automation systems
• Process and packaging industry
• Robotics and automation systems
• Process and packaging industry
Is this RCCB finger-safe?
Yes, its IP2X rating shows that it's protected from objects larger than 12mm, including your fingers.
