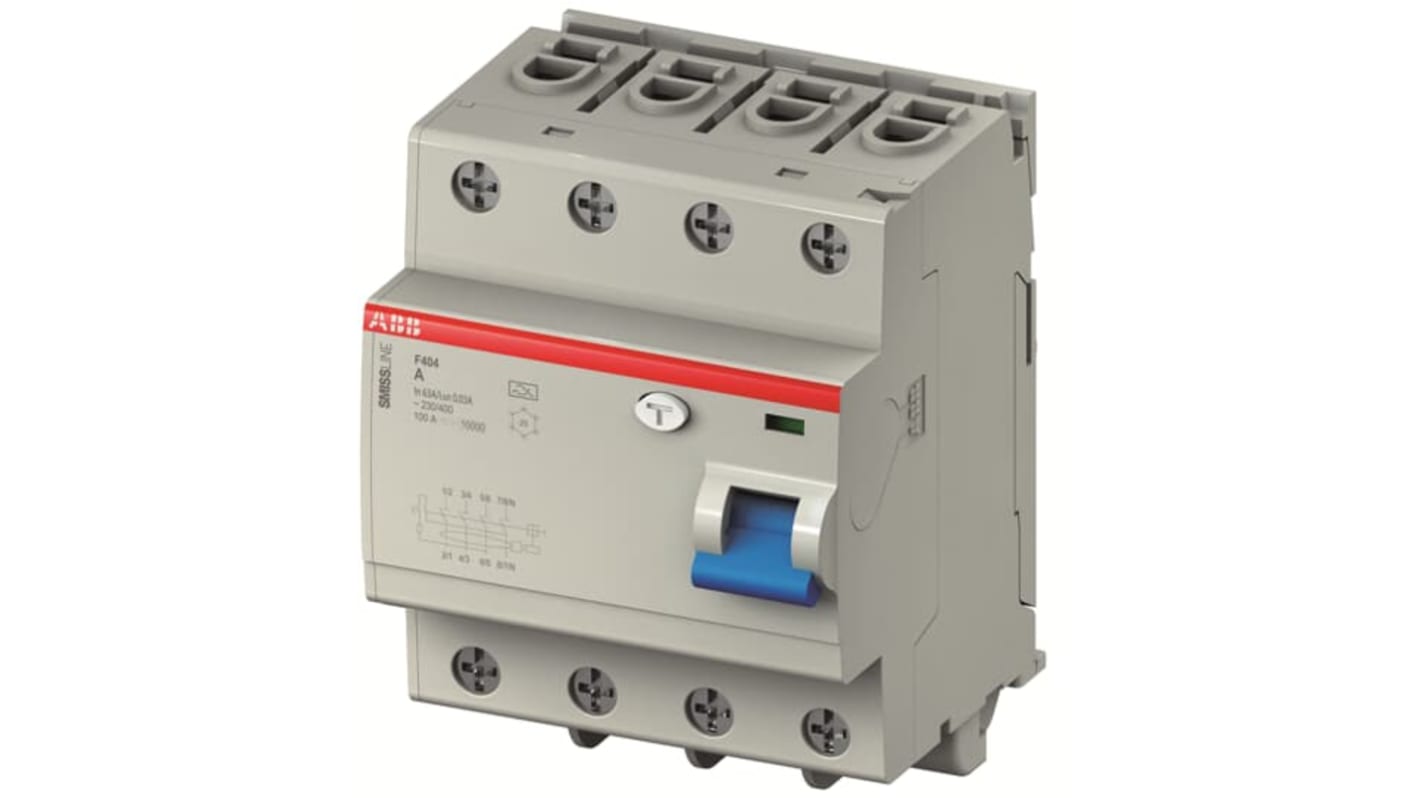

ABB F404 Series Residual Current Circuit Breaker, 25A, 4-Pole, 30 mA, Type A, 1 kA 400V ac
- RS Stock No.:
- 246-2240
- Mfr. Part No.:
- 2CCF544110E0250 F404A25/0.03
- Brand:
- ABB
Subtotal (1 unit)*
£144.42
(exc. VAT)
£173.30
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £144.42 |
*price indicative
- RS Stock No.:
- 246-2240
- Mfr. Part No.:
- 2CCF544110E0250 F404A25/0.03
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 25A | |
| Number of Poles | 4 | |
| Range | SMISSLINE TP | |
| Series | F404 | |
| Trip Sensitivity | 30mA | |
| Mount Type | Conductor Bar Mount | |
| Tripping Characteristics | Type A | |
| Standards/Approvals | IEC/EN 61008 | |
| Terminal Type | Neutral Terminal | |
| Height | 91mm | |
| Width | 72mm | |
| Depth | 75mm | |
| Breaking Capacity | 1kA | |
| Earth Leakage Protection Type | Type A | |
| Rated AC Voltage | 400V ac | |
| Reset Actuator Type | Lever | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 25A | ||
Number of Poles 4 | ||
Range SMISSLINE TP | ||
Series F404 | ||
Trip Sensitivity 30mA | ||
Mount Type Conductor Bar Mount | ||
Tripping Characteristics Type A | ||
Standards/Approvals IEC/EN 61008 | ||
Terminal Type Neutral Terminal | ||
Height 91mm | ||
Width 72mm | ||
Depth 75mm | ||
Breaking Capacity 1kA | ||
Earth Leakage Protection Type Type A | ||
Rated AC Voltage 400V ac | ||
Reset Actuator Type Lever | ||
- COO (Country of Origin):
- IT
The ABB 4-pole residual current operated circuit breaker with instantaneous operation from series F404 (RCCB) is developed for the SMISSLINE TP System. The rated operational voltage range is 230 Vac to 400 Vac and rated current is 25 A.
IP20 degree of protection and rated sensitivity ( Δn) is 0,03
Operating temperature range is from -25°C to 55°C
