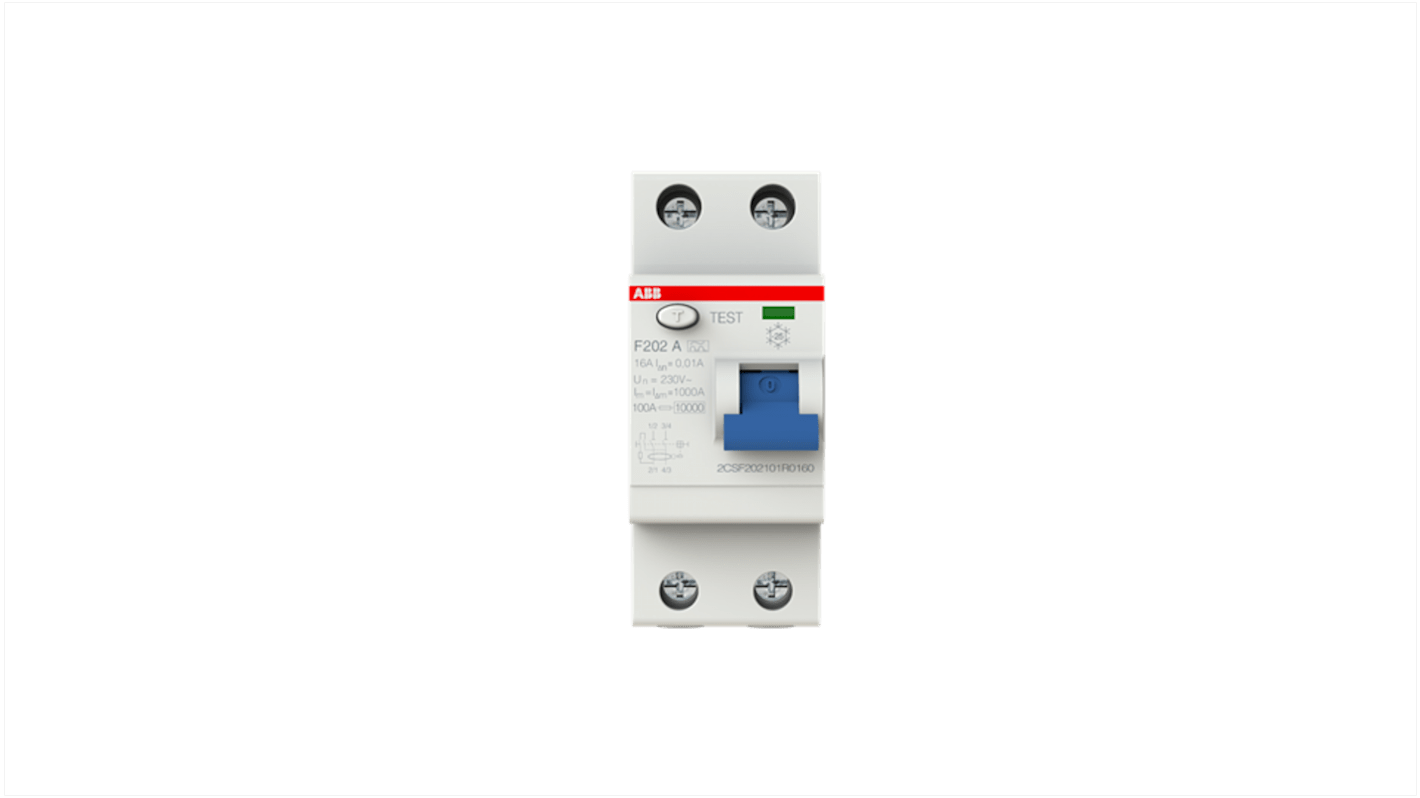

ABB F200 RCCB, 16A, 2 Pole, 10mA, Type A, 230V ac
- RS Stock No.:
- 225-6100
- Mfr. Part No.:
- 2CSF202101R0160 F202 A-16/0.01
- Brand:
- ABB
8 In stock - FREE next working day delivery available
Added
Price Each
£149.45
(exc. VAT)
£179.34
(inc. VAT)
| Units | Per unit |
| 1 + | £149.45 |
- RS Stock No.:
- 225-6100
- Mfr. Part No.:
- 2CSF202101R0160 F202 A-16/0.01
- Brand:
- ABB
Technical Reference
Legislation and Compliance
Product Details
ABB Type A RCCB, 16A Current Rating, 230V Voltage Rating - F200 Series - 2CSF202101R0160 F202 A-16/0.01
Protect your residential building from fire with this RCCB from ABB. Designed for high-powered circuits, the safety device has a current rating of 16A, enabling it to keep large appliances reliably safe. It has a rated impulse voltage of 4kV to handle sudden voltage spikes without damage. The component's terminals give you the freedom to link it to busbars or wire conductors, so it's a versatile electric safety solution. With a low power loss of 1.5W, you can rely on this circuit breaker for energy efficiency.
Features & Benefits
• Compact dimensions of 85 (H) x 35 (W) x 69mm (D) for installation in setups with limited space
• IP20 rating indicates that it's protected from objects larger than 12mm in size
• Broad operating temperature range of -25°C to +55°C for use in demanding conditions
• DIN rail mounting style is simple and needs no specialist intallation tools
• IP20 rating indicates that it's protected from objects larger than 12mm in size
• Broad operating temperature range of -25°C to +55°C for use in demanding conditions
• DIN rail mounting style is simple and needs no specialist intallation tools
Applications
• Garden equipment
• Public buildings
• Public buildings
What's the voltage rating of this RCCB?
This circuit breaker has a 230V voltage rating, making it a practical choice for protecting low-voltage systems.
Specifications
Attribute | Value |
|---|---|
| Circuit Breaker Type | RCCB |
| Current Rating | 16A |
| Number of Poles | 2 |
| Trip Sensitivity | 10mA |
| Tripping Characteristics | Type A |
| Voltage Rating | 230V ac |
| Series | F200 |
| Overall Length | 35mm |
| Earth Leakage Protection Type | A |
| Overall Dimensions | 35 x 69 x 85mm |
| Overall Depth | 85mm |
| Overall Width | 69mm |
| Mounting Style | DIN Rail Mount |
