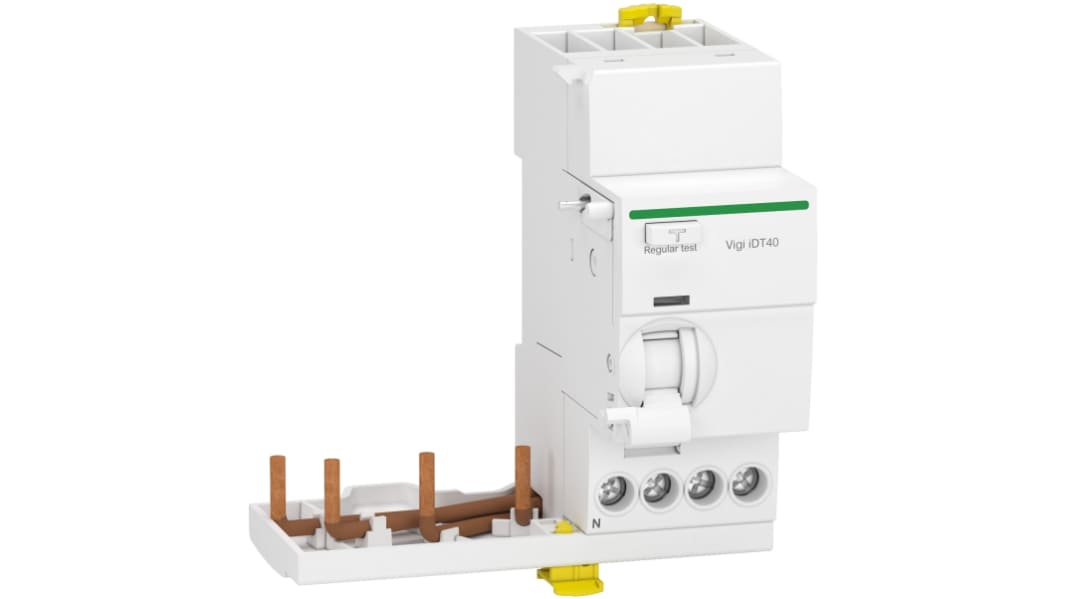

Schneider Electric Acti9 iDT40 Series Residual Current Device, 40A, 3-Pole, 30 mA
- RS Stock No.:
- 191-6148
- Mfr. Part No.:
- A9Y62740
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£354.19
(exc. VAT)
£425.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £354.19 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 191-6148
- Mfr. Part No.:
- A9Y62740
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Device | |
| Current Rating | 40A | |
| Number of Poles | 3 | |
| Series | Acti9 iDT40 | |
| Range | Acti9 | |
| Trip Sensitivity | 30mA | |
| Mount Type | DIN Rail | |
| Terminal Type | Tunnel | |
| Standards/Approvals | NF, EN/IEC 61009-2-1, CE | |
| Width | 93mm | |
| Height | 99.5mm | |
| Depth | 74mm | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Break Time | Instantaneous | |
| Earth Leakage Protection Type | AC | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Device | ||
Current Rating 40A | ||
Number of Poles 3 | ||
Series Acti9 iDT40 | ||
Range Acti9 | ||
Trip Sensitivity 30mA | ||
Mount Type DIN Rail | ||
Terminal Type Tunnel | ||
Standards/Approvals NF, EN/IEC 61009-2-1, CE | ||
Width 93mm | ||
Height 99.5mm | ||
Depth 74mm | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
Break Time Instantaneous | ||
Earth Leakage Protection Type AC | ||
- COO (Country of Origin):
- ES
Schneider Electric RCD, 40A Current Rating, 400V Voltage Rating - A9Y62740
This RCD is essential for electrical installations, providing protection against earth leakage. With a current rating of 40A and voltage of 400V, its compact dimensions of 93x74x99.5mm make it suitable for DIN rail mounting, facilitating integration into existing systems.
Features & Benefits
• Instantaneous tripping for rapid fault response
• Type AC earth leakage protection for enhanced safety
• Tunnel type terminals for secure electrical connections
• Designed for 3 pole systems, supporting diverse applications
• Capable of withstanding up to 10,000 electrical durability cycles
Applications
• Utilised in electrical systems requiring dependable earth leakage protection
• Suitable for commercial and industrial installations
• Appropriate for residential electrical distribution boards
Can it provide protection against earth faults?
Yes, it offers effective protection against earth leakage currents.
Will it fit in standard DIN rail systems?
Yes, it is designed for effortless mounting on DIN rails.
Is it suitable for use in humid environments?
It functions effectively in environments with humidity levels up to 95%.
Can it handle diverse electrical loads?
It is rated to safely manage currents up to 40A.
