Schneider Electric Vigi iDT40 RCD, 40A, 1+N Pole, 30mA, 230V ac
- RS Stock No.:
- 191-6146
- Mfr. Part No.:
- A9Y62640
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£234.19
(exc. VAT)
£281.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £234.19 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 191-6146
- Mfr. Part No.:
- A9Y62640
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Circuit Breaker Type | RCD | |
| Current Rating | 40A | |
| Number of Poles | 1+N | |
| Range | Acti9 | |
| Trip Sensitivity | 30mA | |
| Voltage Rating | 230V ac | |
| Series | Vigi iDT40 | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Overall Length | 36mm | |
| Break Time | Instantaneous | |
| Mounting Style | DIN Rail Mount | |
| Rated AC Voltage | 230V | |
| Tripping Mechanism | Thermal-Magnetic | |
| Overall Depth | 91mm | |
| Overall Width | 74mm | |
| Terminal Contact Type | Tunnel Terminal | |
| Reset Actuator Type | Toggle Switch | |
| Overall Dimensions | 36 x 74 x 91mm | |
| Earth Leakage Protection Type | Type AC | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Circuit Breaker Type RCD | ||
Current Rating 40A | ||
Number of Poles 1+N | ||
Range Acti9 | ||
Trip Sensitivity 30mA | ||
Voltage Rating 230V ac | ||
Series Vigi iDT40 | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Overall Length 36mm | ||
Break Time Instantaneous | ||
Mounting Style DIN Rail Mount | ||
Rated AC Voltage 230V | ||
Tripping Mechanism Thermal-Magnetic | ||
Overall Depth 91mm | ||
Overall Width 74mm | ||
Terminal Contact Type Tunnel Terminal | ||
Reset Actuator Type Toggle Switch | ||
Overall Dimensions 36 x 74 x 91mm | ||
Earth Leakage Protection Type Type AC | ||
- COO (Country of Origin):
- FR

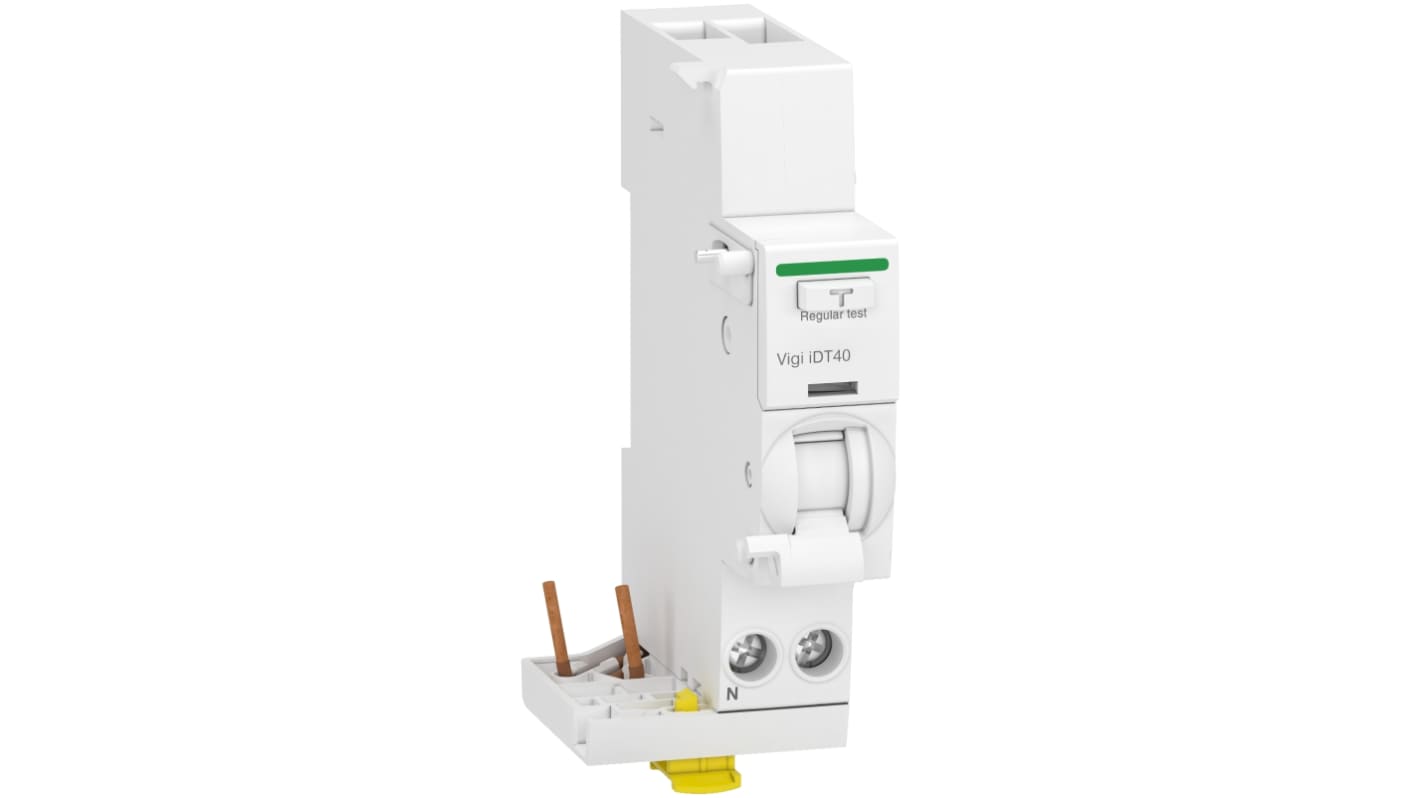

Schneider Electric RCD, 40A Current Rating, 230V Voltage Rating - A9Y62640
This RCD is essential for electrical systems, providing circuit protection against earth leakage. It has a current rating of 40A and is designed for single pole and neutral configurations. Specifically intended for DIN rail mounting, its compact dimensions of 36x74x91mm make it suitable for various installations.
Features & Benefits
• Instantaneous tripping for prompt disconnection
• Type AC earth leakage protection enhances safety
• Tunnel terminals for easy accommodation of varying wire sizes
• Complies with EN/IEC 61009-2-1 standards
• Type AC earth leakage protection enhances safety
• Tunnel terminals for easy accommodation of varying wire sizes
• Complies with EN/IEC 61009-2-1 standards
Applications
• Suitable for commercial installations requiring dependable safety
• Used in automation systems for effective control
• Used in automation systems for effective control
Can it be mounted on a standard DIN rail?
Yes, it is specifically designed for DIN rail mounting.
Will it respond quickly to electrical faults?
Yes, it features instantaneous tripping for rapid disconnection.
Is it suitable for use in humid environments?
It can operate at humidity levels of up to 95% at 55°C.
