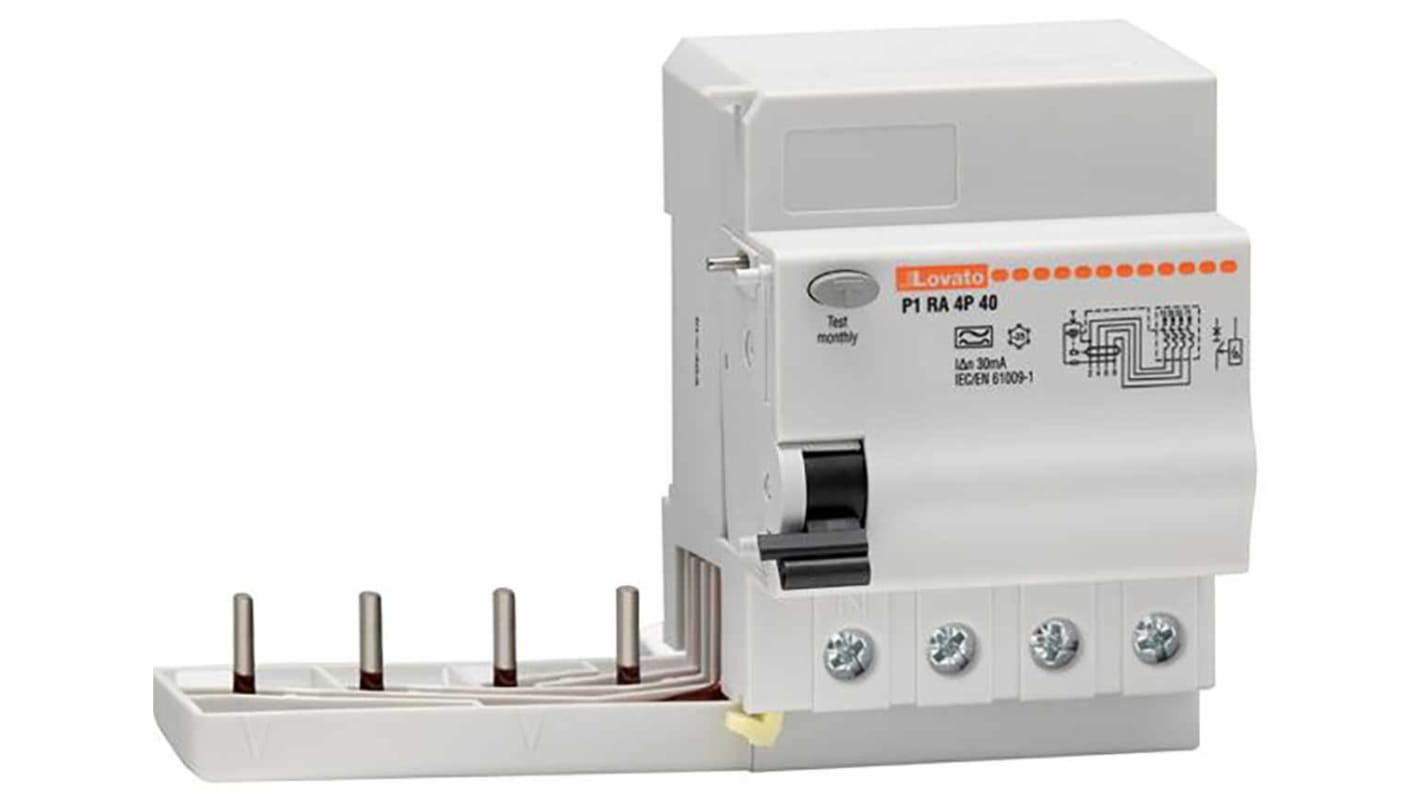

Lovato P1RA RCCB, 63A, 4 Pole, 30mA, Type A, 230 V ac, 400 V ac
- RS Stock No.:
- 188-1683
- Mfr. Part No.:
- P1RA4P63A030
- Brand:
- Lovato
Subtotal (1 unit)*
£175.02
(exc. VAT)
£210.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £175.02 |
*price indicative
- RS Stock No.:
- 188-1683
- Mfr. Part No.:
- P1RA4P63A030
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Circuit Breaker Type | RCCB | |
| Current Rating | 63A | |
| Number of Poles | 4 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type A | |
| Voltage Rating | 230 V ac, 400 V ac | |
| Series | P1RA | |
| Standards Met | IEC | |
| Mounting Style | DIN Rail Mount | |
| Rated AC Voltage | 400V | |
| Tripping Mechanism | Thermal-Magnetic | |
| Overall Depth | 92mm | |
| Overall Width | 69.2mm | |
| Overall Dimensions | 133 x 69.2 x 92mm | |
| Earth Leakage Protection Type | Type A | |
| Overall Length | 133mm | |
Select all | ||
|---|---|---|
Brand Lovato | ||
Circuit Breaker Type RCCB | ||
Current Rating 63A | ||
Number of Poles 4 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type A | ||
Voltage Rating 230 V ac, 400 V ac | ||
Series P1RA | ||
Standards Met IEC | ||
Mounting Style DIN Rail Mount | ||
Rated AC Voltage 400V | ||
Tripping Mechanism Thermal-Magnetic | ||
Overall Depth 92mm | ||
Overall Width 69.2mm | ||
Overall Dimensions 133 x 69.2 x 92mm | ||
Earth Leakage Protection Type Type A | ||
Overall Length 133mm | ||
RoHS Status: Exempt
Lovato P1RA Series RCCB, 63A Current Rating, 30mA Trip Sensitivity - P1RA4P63A030
This RCCB is a critical component for electrical safety in various applications, designed to safeguard against earth leakage. The unit features a 4-pole configuration, rated at 63 A with a tripping sensitivity of 30 mA, catering to both 230 V AC and 400 V AC environments. This compact device measures 133 x 69.2 x 92 mm, making it suitable for DIN rail mounting.
Features & Benefits
• Type A design ensures protection against both AC and pulsating DC earth faults
• Thermal-magnetic mechanism offers reliable tripping for enhanced safety
• IP20 frontal rating protects against solid objects >12.5 mm
• Suitable for operating temperatures ranging from -35°C to 70°C
• IEC compliance guarantees adherence to international safety standards
• Quick and easy installation on a standard 35 mm DIN rail
• Thermal-magnetic mechanism offers reliable tripping for enhanced safety
• IP20 frontal rating protects against solid objects >12.5 mm
• Suitable for operating temperatures ranging from -35°C to 70°C
• IEC compliance guarantees adherence to international safety standards
• Quick and easy installation on a standard 35 mm DIN rail
Applications
• Used for residential and commercial electrical panels
• Applied in industrial automation systems for enhanced safety
• Ideal for use in machinery requiring earth leakage protection
• Utilised in distribution boards across various sectors
• Applied in industrial automation systems for enhanced safety
• Ideal for use in machinery requiring earth leakage protection
• Utilised in distribution boards across various sectors
What is the maximum rated operational voltage this device can handle?
The device can handle a rated operational voltage of 400 V AC, ensuring compatibility with a wide range of electrical systems.
How does the tripping mechanism contribute to operational safety?
The thermal-magnetic tripping mechanism provides reliable protection by promptly disconnecting the circuit in case of earth leakage, improving user safety.
What are the specified conductor section requirements when using this RCCB?
The device accommodates conductor sections from 1 mm² to a maximum of 16 mm², allowing for versatile installation options across different wiring configurations.
What are the advantages of choosing a Type A RCCB?
Choosing a Type A RCCB ensures protection against both AC and residual pulsating DC currents, making it suitable for applications with modern electronic equipment.
