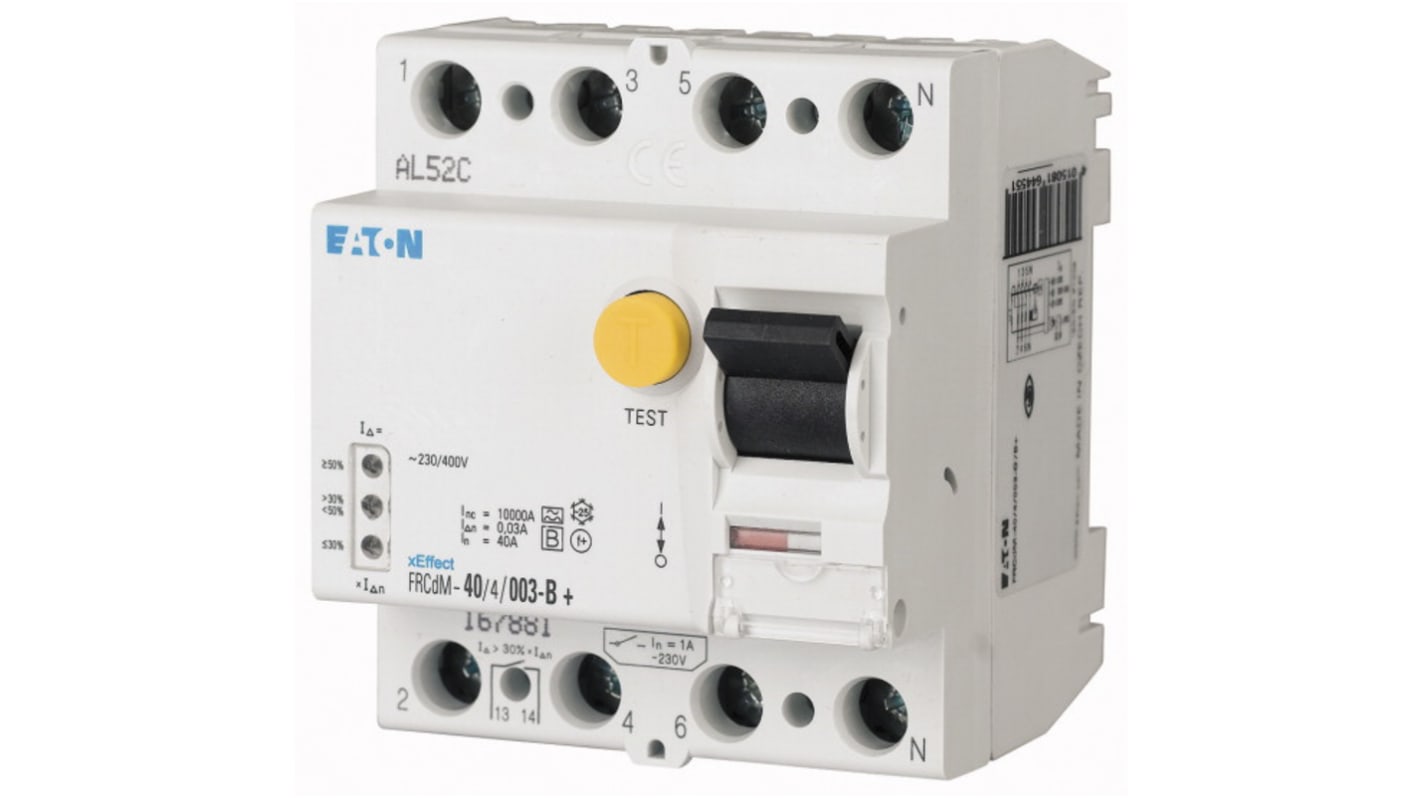

Eaton FRCdM Series Residual Current Circuit Breaker, 40A, 4-Pole, 30 mA, Type B, 10 kA, 220 V dc 240V ac

RS Stock No.:: 183-3547
Distrelec Article No.:: 300-42-673
Mfr. Part No.:: 167893 FRCDM-40/4/003-G/B
Brand:: Eaton

Eaton FRCdM Series Residual Current Circuit Breaker, 40A, 4-Pole, 30 mA, Type B, 10 kA, 220 V dc 240V ac

Subtotal (1 unit)*

£678.36

(exc. VAT)

£814.03

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£678.36

*price indicative

RS Stock No.:: 183-3547
Distrelec Article No.:: 300-42-673
Mfr. Part No.:: 167893 FRCDM-40/4/003-G/B
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Residual Current Circuit Breaker
	Current Rating	40A
	Number of Poles	4
	Series	FRCdM
	Range	FRCdM
	Trip Sensitivity	30mA
	Mount Type	DIN Rail
	Tripping Characteristics	Type B
	Standards/Approvals	EN 45545-2, IEC 61373, IEC/EN 61008
	Terminal Type	Screw
	Width	70mm
	Depth	70.5mm
	Height	80mm
	Breaking Capacity	10kA
	Earth Leakage Protection Type	Type B
	Tripping Mechanism	Electromagnetic
	Application	Residential, Commercial
	Rated AC Voltage	240V ac
	Reset Actuator Type	Toggle Switch
	Rated DC Voltage	220V dc

	Select all
	Brand Eaton
	Product Type Residual Current Circuit Breaker
	Current Rating 40A
	Number of Poles 4
	Series FRCdM
	Range FRCdM
	Trip Sensitivity 30mA
	Mount Type DIN Rail
	Tripping Characteristics Type B
	Standards/Approvals EN 45545-2, IEC 61373, IEC/EN 61008
	Terminal Type Screw
	Width 70mm
	Depth 70.5mm
	Height 80mm
	Breaking Capacity 10kA
	Earth Leakage Protection Type Type B
	Tripping Mechanism Electromagnetic
	Application Residential, Commercial
	Rated AC Voltage 240V ac
	Reset Actuator Type Toggle Switch
	Rated DC Voltage 220V dc

COO (Country of Origin):: CZ

Eaton RCCB, 40 A Current Rating, DIN Rail Mount Mounting Style - 167893 FRCDM-40/4/003-G/B

This digital residual current circuit-breaker from Eaton, with a current rating of 40A and trip sensitivity of 30mA, offers advanced protection for industrial and commercial applications. With a Type B tripping characteristic and 4 poles, it provides surge-proof performance with a breaking capacity of 500A.

Features & Benefits

• All-current sensitive for precise operation

• DIN rail mount for easy installation

• Screw terminal contact type for secure connections

• Time delay feature for flexibility in circuit protection

• Surge-proof design for enhanced durability

Applications

• Ideal for use in switchgear for industrial and advanced commercial applications

• Suitable for environments requiring reliable residual current protection

Can it be used in industrial settings?

Yes, it is designed for switchgear in industrial and advanced commercial applications.

Will it provide surge-proof operation?

This RCCB offers surge-proof performance with a maximum breaking capacity of 500A.

Is the installation process easy?

Yes, the DIN rail mount design allows for quick and convenient installation.

Can it be used in environments with specific protection requirements?

Yes, it is suitable for environments requiring reliable residual current protection.

Does it offer flexible protection options?

Yes, the time delay feature provides flexibility in circuit protection settings.

Note

Eaton formerly known as Moeller
