ABB F200 Series Residual Current Circuit Breaker, 40 A, 2-Pole, 30 mA, Type A, 1 kA 277 V ac
- RS Stock No.:
- 177-5065
- Mfr. Part No.:
- 2CSF202199R1400 F202 A-40/0,03 110V
- Brand:
- ABB
Subtotal (1 unit)*
£150.58
(exc. VAT)
£180.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £150.58 |
*price indicative
- RS Stock No.:
- 177-5065
- Mfr. Part No.:
- 2CSF202199R1400 F202 A-40/0,03 110V
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 40 A | |
| Number of Poles | 2 | |
| Range | F200 | |
| Series | F200 | |
| Trip Sensitivity | 30mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A | |
| Standards/Approvals | IEC EN 61008, RoHS, CE | |
| Terminal Type | Screw | |
| Width | 35 mm | |
| Height | 85mm | |
| Depth | 69mm | |
| Breaking Capacity | 1kA | |
| Break Time | Instantaneous | |
| Earth Leakage Protection Type | Type A | |
| Tripping Mechanism | Electromagnetic | |
| Reset Actuator Type | Toggle Switch | |
| Rated AC Voltage | 277 V ac | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 40 A | ||
Number of Poles 2 | ||
Range F200 | ||
Series F200 | ||
Trip Sensitivity 30mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A | ||
Standards/Approvals IEC EN 61008, RoHS, CE | ||
Terminal Type Screw | ||
Width 35 mm | ||
Height 85mm | ||
Depth 69mm | ||
Breaking Capacity 1kA | ||
Break Time Instantaneous | ||
Earth Leakage Protection Type Type A | ||
Tripping Mechanism Electromagnetic | ||
Reset Actuator Type Toggle Switch | ||
Rated AC Voltage 277 V ac | ||
- COO (Country of Origin):
- IT

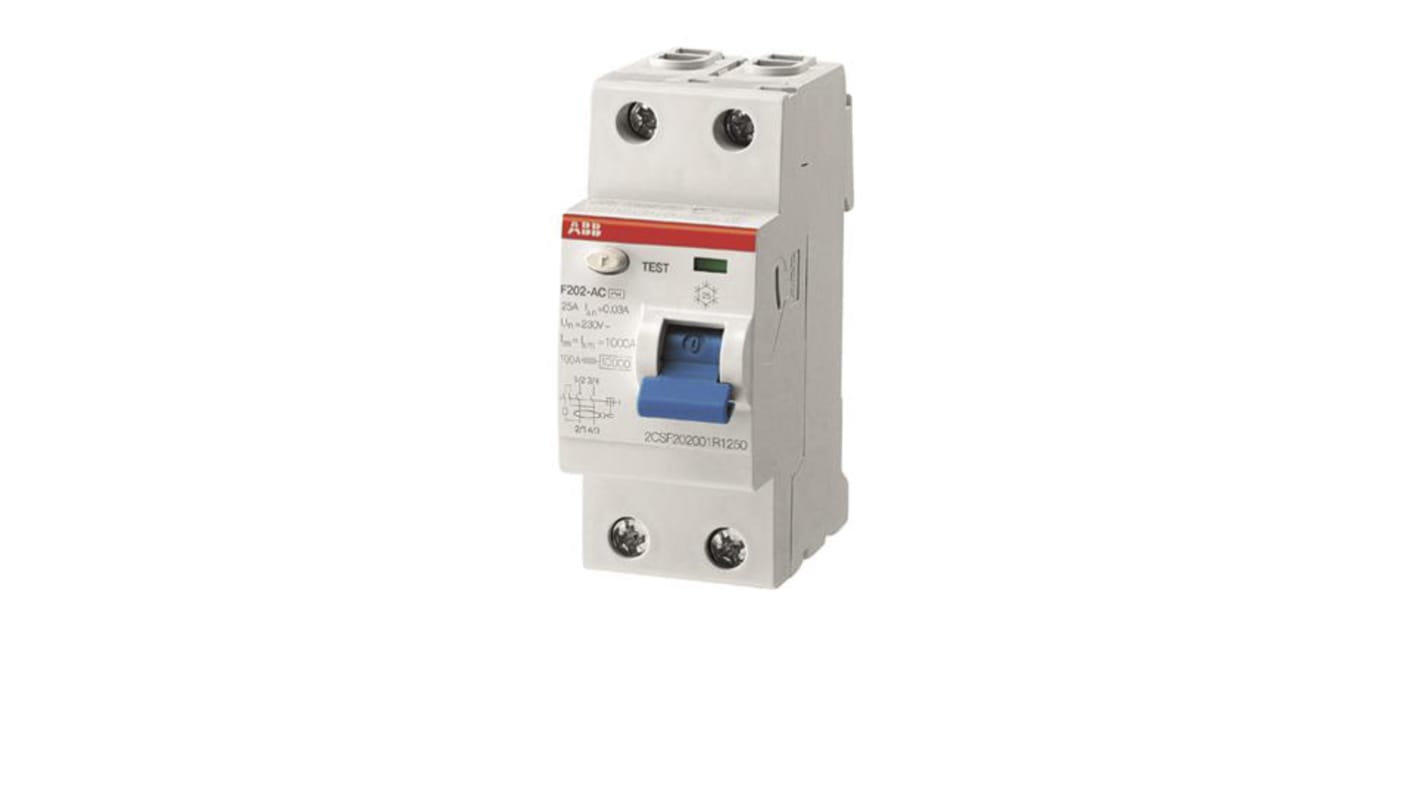

ABB Residual Current Circuit Breaker
The ABB F200 series residual current circuit breaker is a 2-pole type A device. It has an electrical rating of 110VAC and 40A. A green LED is used to indicate the operation of the residual circuit breaker.
Features and Benefits
• Compact design
• DIN rail type mounting
• Earth fault safety protection
• It protects against sinusoidal alternating and direct pulsating earth fault currents
• Operation temperature ranges in between -25°C and 55°C
• Trip sensitivity is 30mA
Applications
• Commercial
• Industrial application
• Residential
Certifications
• IEC 61008
• UL 1053 listed
