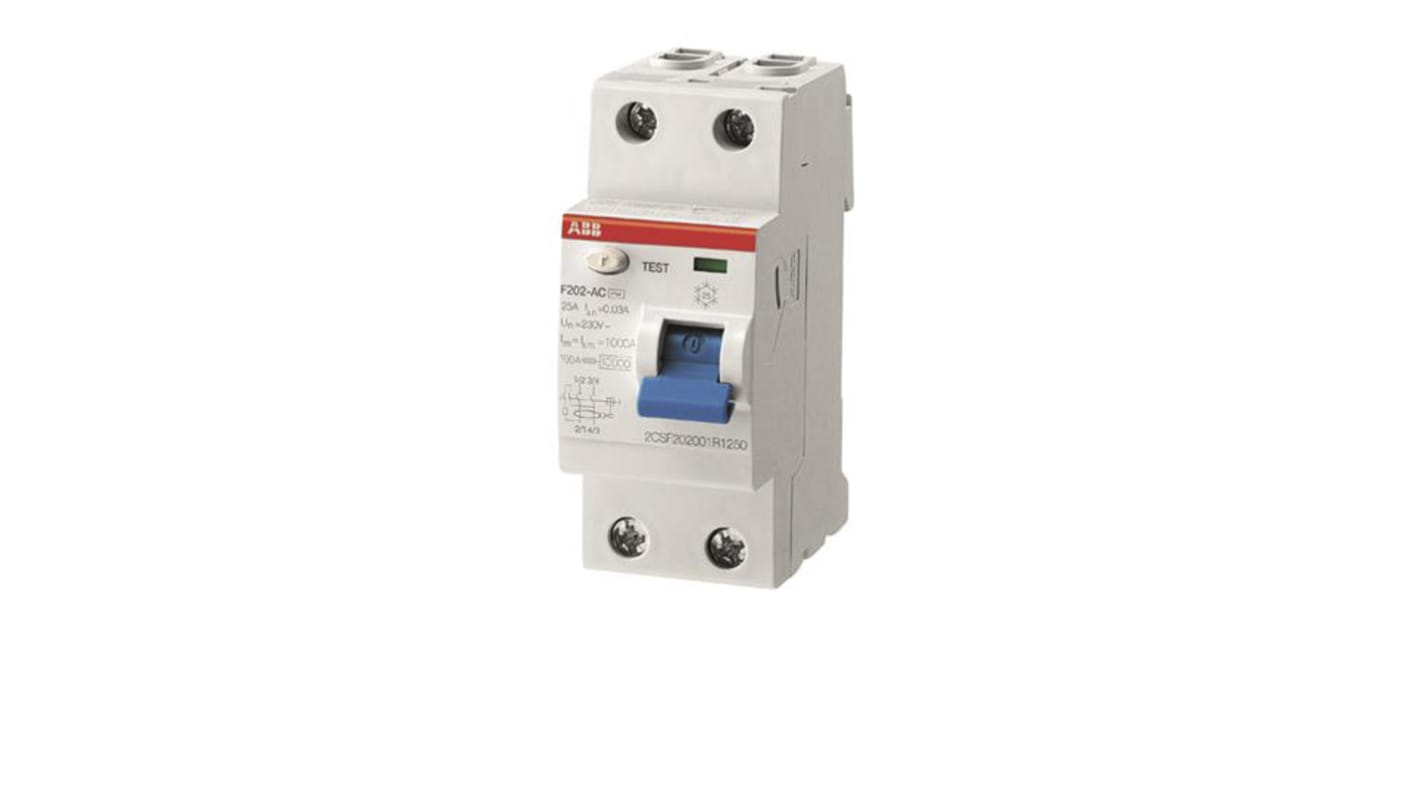

ABB F200 RCCB, 25A, 2 Pole, 30mA, Type A, 110V ac
- RS Stock No.:
- 177-5063
- Distrelec Article No.:
- 303-96-292
- Mfr. Part No.:
- 2CSF202199R1250 F202 A-25/0,03 110V
- Brand:
- ABB
Subtotal (1 unit)*
£149.56
(exc. VAT)
£179.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 3 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £149.56 |
*price indicative
- RS Stock No.:
- 177-5063
- Distrelec Article No.:
- 303-96-292
- Mfr. Part No.:
- 2CSF202199R1250 F202 A-25/0,03 110V
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Circuit Breaker Type | RCCB | |
| Current Rating | 25A | |
| Number of Poles | 2 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type A | |
| Voltage Rating | 110V ac | |
| Series | F200 | |
| Standards Met | IEC/EN 61008 | |
| Overall Dimensions | 85 x 69 x 35mm | |
| Earth Leakage Protection Type | A | |
| Overall Depth | 69mm | |
| Overall Width | 35mm | |
| Rated AC Voltage | 277V | |
| Mounting Style | DIN Rail Mount | |
| Break Time | Instantaneous | |
| Overall Length | 85mm | |
Select all | ||
|---|---|---|
Brand ABB | ||
Circuit Breaker Type RCCB | ||
Current Rating 25A | ||
Number of Poles 2 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type A | ||
Voltage Rating 110V ac | ||
Series F200 | ||
Standards Met IEC/EN 61008 | ||
Overall Dimensions 85 x 69 x 35mm | ||
Earth Leakage Protection Type A | ||
Overall Depth 69mm | ||
Overall Width 35mm | ||
Rated AC Voltage 277V | ||
Mounting Style DIN Rail Mount | ||
Break Time Instantaneous | ||
Overall Length 85mm | ||
ABB RCCB, 2 Poles, 277V AC Maximum Operating Voltage - F200 Series - 2CSF202199R1250 F202 A-25/0,03 110V
Looking for a way to increase electrical safety by protecting your system from earth leakage? Choose this 2-pole RCCB from ABB. It detects sinusoidal alternating and direct pulsating faults to help prevent electric shocks and equipment damage. A 110V AC voltage rating makes it compatible with residential, commercial and industrial applications. As it breaks attached circuits instantaneously, this safety device limits potential damage and unnecessary downtime. Installation is simple – just snap the RCCB onto a DIN rail, where its light weight of 200g adds minimal strain.
• Blue toggle switch lets you see the position of contacts, making troubleshooting easy
• Robust plastic housing protects live components
• Wide operating temperature range between -25°C and +55°C for use in challenging conditions
• Robust plastic housing protects live components
• Wide operating temperature range between -25°C and +55°C for use in challenging conditions
Applications
• Automated factory processes
• Medical imaging equipment
• Construction industry
• Food and beverage processing facilities
• Medical imaging equipment
• Construction industry
• Food and beverage processing facilities
The RCCBs F200 series assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial. This particular series has the minimum operating voltage of test button 0f 110V and it is suitable for application at 230V.
What's the difference between an RCCB and RCD?
RCDs are safety devices that prevent electric shocks and other risks such as fires. Essentially, an RCCB is an RCD without overload protection and is used in environments where the risk of electric shocks is limited.
How do I choose the right RCCB?
You do this by matching the operating voltage and current ratings with that of your electrical installation.
