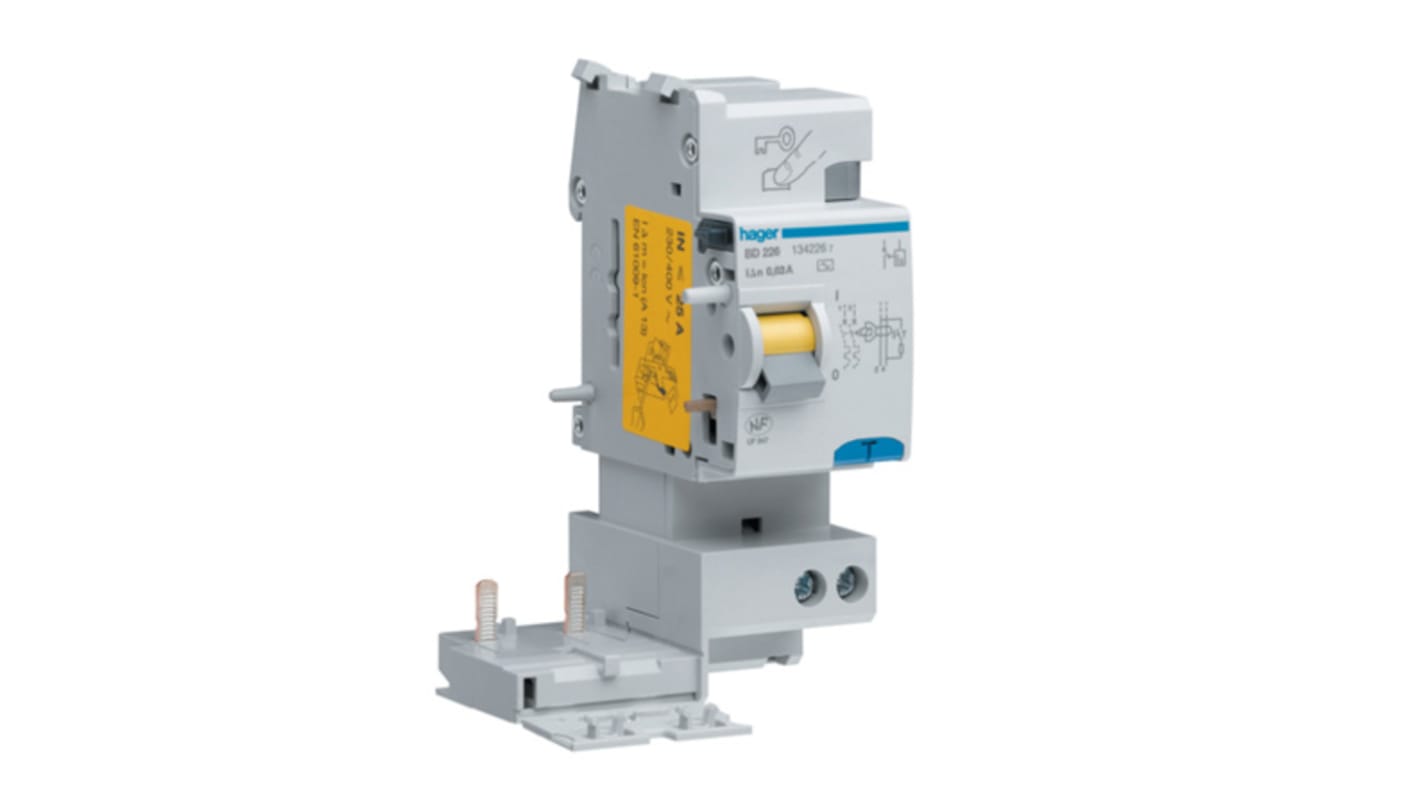

Hager BP RCD, 63A, 2 Pole, 300mA, Type AC
- RS Stock No.:
- 144-4885
- Mfr. Part No.:
- BP264
- Brand:
- Hager
Subtotal (1 unit)*
£346.78
(exc. VAT)
£416.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £346.78 |
*price indicative
- RS Stock No.:
- 144-4885
- Mfr. Part No.:
- BP264
- Brand:
- Hager
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hager | |
| Circuit Breaker Type | RCD | |
| Current Rating | 63A | |
| Number of Poles | 2 | |
| Trip Sensitivity | 300mA | |
| Tripping Characteristics | Type AC | |
| Series | BP | |
| Application | Residential | |
| Reset Actuator Type | Toggle Switch | |
| Terminal Contact Type | Screw | |
| Rated AC Voltage | 240 → 400V | |
| Mounting Style | DIN Rail Mount | |
Select all | ||
|---|---|---|
Brand Hager | ||
Circuit Breaker Type RCD | ||
Current Rating 63A | ||
Number of Poles 2 | ||
Trip Sensitivity 300mA | ||
Tripping Characteristics Type AC | ||
Series BP | ||
Application Residential | ||
Reset Actuator Type Toggle Switch | ||
Terminal Contact Type Screw | ||
Rated AC Voltage 240 → 400V | ||
Mounting Style DIN Rail Mount | ||
- COO (Country of Origin):
- FR
Hager Add-on Residual Current Devices
These Hager add on residual current devices (RCDs) provide people with protection from electrical shock by direct or indirect contact and protect installations against the risk of fire. They are intended to be fixed on the right hand side of the circuit breakers to form differential circuit breakers from 25 A to 63 A, one, two, three or four pole.
Features and Benefits
• AC, A and HI
• 1, 2, 3 and 4 pole
• 25 A to 63 A
• 30 mA and 300 mA
• 1, 2, 3 and 4 pole
• 25 A to 63 A
• 30 mA and 300 mA
Standards
NF EN 61009-1, NF EN 60947-2.
