Schneider Electric Acti9 iID Series Residual Current Circuit Breaker, 40A, 2-Pole, 300 mA, Type A-SI 500V ac
- RS Stock No.:
- 654-749
- Mfr. Part No.:
- A9R61240
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£255.25
(exc. VAT)
£306.30
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £255.25 |
*price indicative
- RS Stock No.:
- 654-749
- Mfr. Part No.:
- A9R61240
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 40A | |
| Number of Poles | 2 | |
| Series | Acti9 iID | |
| Range | Acti9 | |
| Trip Sensitivity | 300mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A-SI | |
| Standards/Approvals | RoHS, EN/IEC 61008-2-1, EN/IEC 61008-1 | |
| Width | 36mm | |
| Depth | 73.5mm | |
| Height | 91mm | |
| Earth Leakage Protection Type | AC | |
| Rated AC Voltage | 500V ac | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 40A | ||
Number of Poles 2 | ||
Series Acti9 iID | ||
Range Acti9 | ||
Trip Sensitivity 300mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A-SI | ||
Standards/Approvals RoHS, EN/IEC 61008-2-1, EN/IEC 61008-1 | ||
Width 36mm | ||
Depth 73.5mm | ||
Height 91mm | ||
Earth Leakage Protection Type AC | ||
Rated AC Voltage 500V ac | ||
- COO (Country of Origin):
- ES

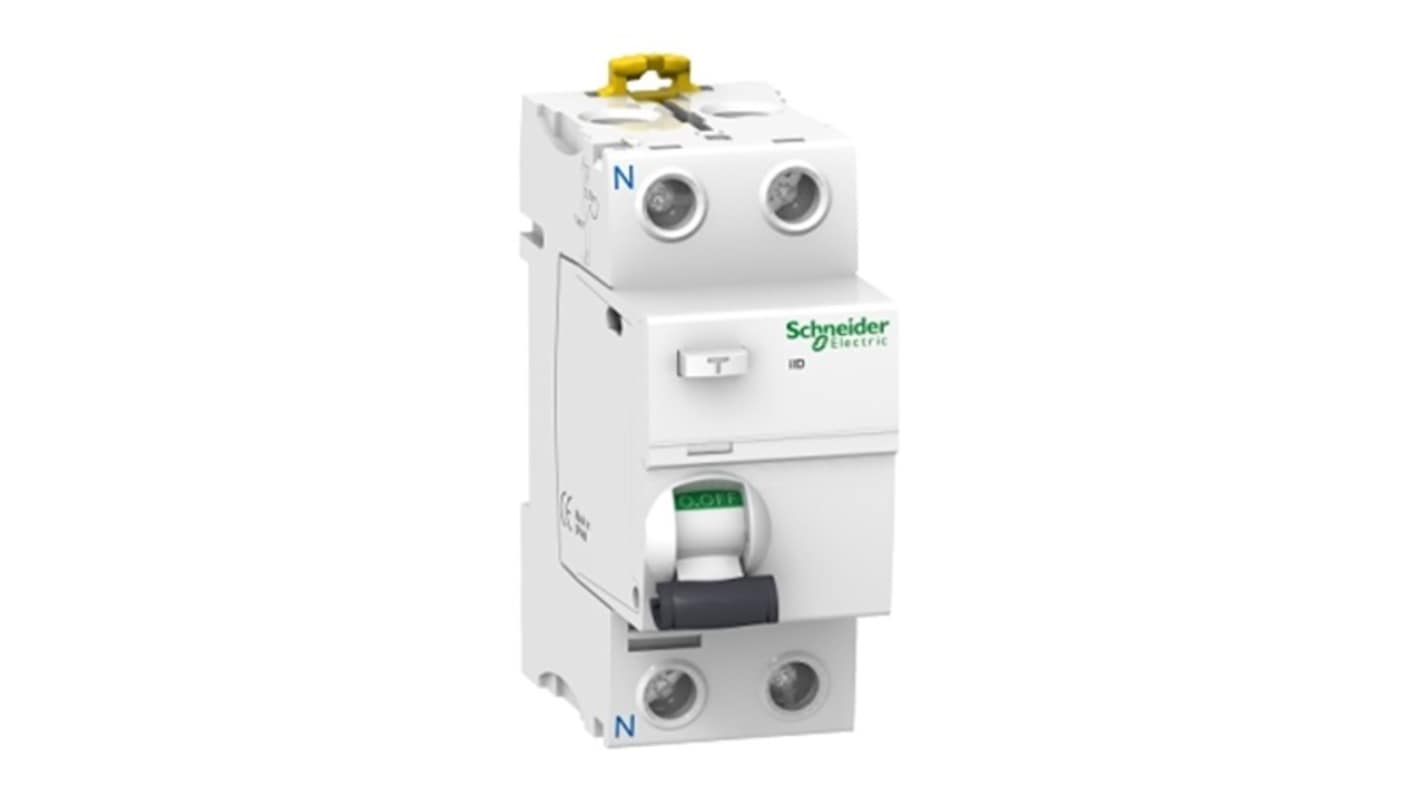

The Schneider Electric Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, a sensitivity of 30mA with a A-SI type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance.
Greater continuity of service with VisiTrip
Greater electrical immunity with Si type (Super immune)
Simple to choose with meaningful part numbers
