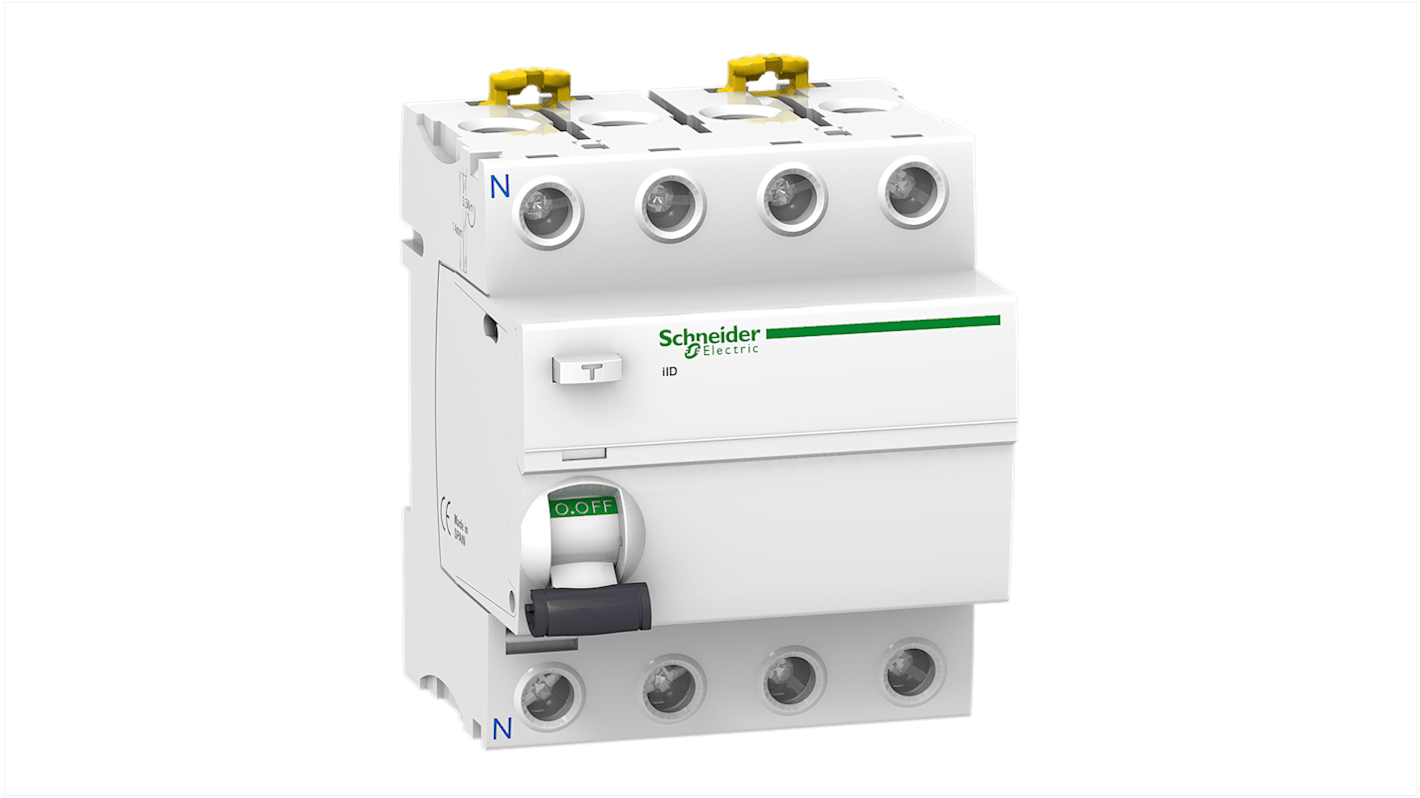

Schneider Electric IID Series Residual Current Circuit Breaker, 80 A, 4-Pole, 30 mA, Type A-SI 415 V ac
- RS Stock No.:
- 130-793
- Mfr. Part No.:
- A9R31480
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£532.42
(exc. VAT)
£638.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £532.42 |
*price indicative
- RS Stock No.:
- 130-793
- Mfr. Part No.:
- A9R31480
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 80 A | |
| Number of Poles | 4 | |
| Range | Acti9 | |
| Series | IID | |
| Trip Sensitivity | 30mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type A-SI | |
| Terminal Type | Single Terminal | |
| Standards/Approvals | EN/IEC 61008-1, EN/IEC 61008-2-1 | |
| Width | 72 mm | |
| Height | 91mm | |
| Depth | 73.5mm | |
| Rated AC Voltage | 415 V ac | |
| Reset Actuator Type | Toggle | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 80 A | ||
Number of Poles 4 | ||
Range Acti9 | ||
Series IID | ||
Trip Sensitivity 30mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type A-SI | ||
Terminal Type Single Terminal | ||
Standards/Approvals EN/IEC 61008-1, EN/IEC 61008-2-1 | ||
Width 72 mm | ||
Height 91mm | ||
Depth 73.5mm | ||
Rated AC Voltage 415 V ac | ||
Reset Actuator Type Toggle | ||
- COO (Country of Origin):
- ES
The Schneider Electric Acti 9 iID RCCB residual current circuit breaker with a rated current, offers voltage-independent residual current tripping and has a compact design suitable for DIN rail mounting.
Enhanced safety
Compact design
Toggle control type for easy operation
Green Premium product with sustainable offer status
Halogen-free plastic parts for environmental friendliness
