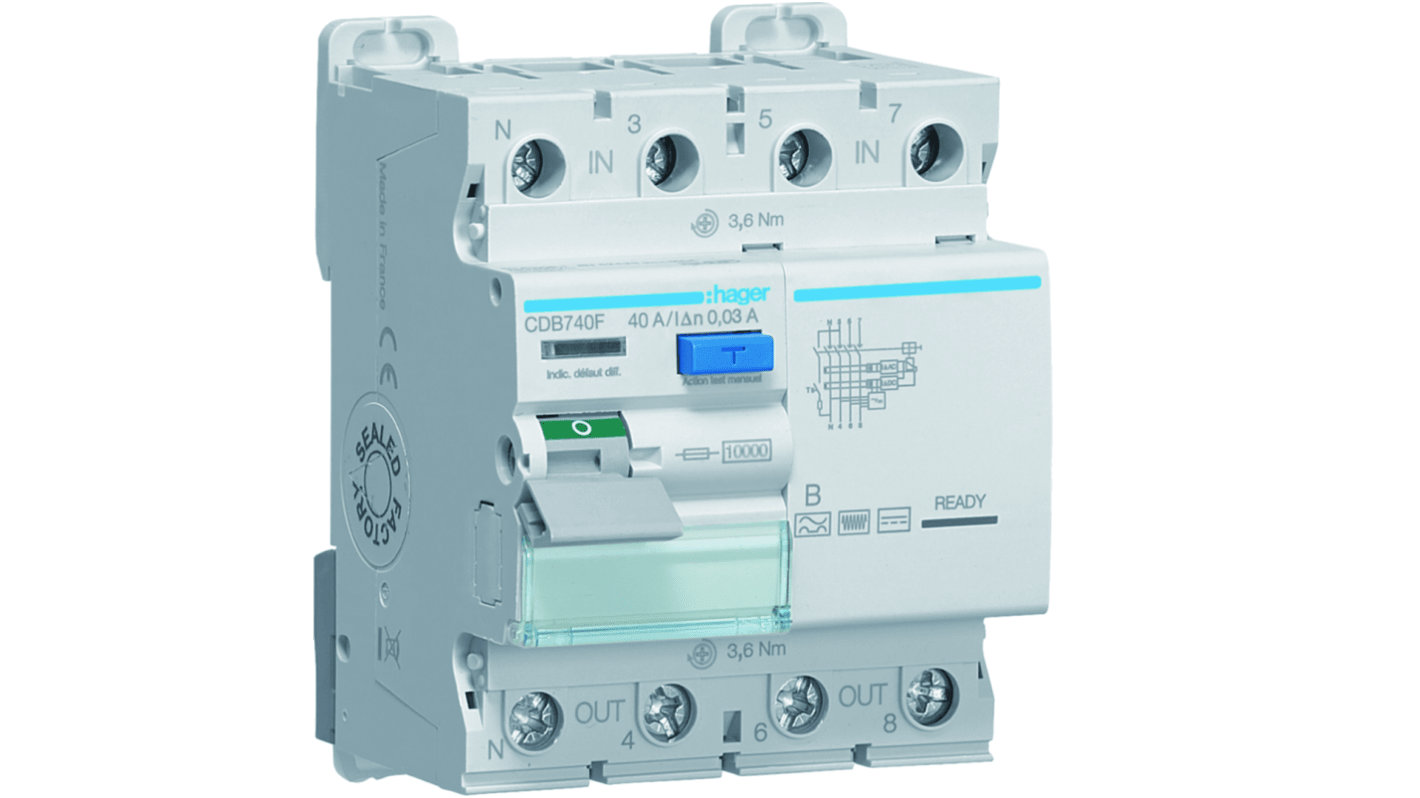

Hager CDB Series RCD Switch, 40A, 4-Pole, 30 mA, Type B, 0.8 kA 400V ac
- RS Stock No.:
- 599-740
- Mfr. Part No.:
- CDB740F
- Brand:
- Hager
Subtotal (1 unit)*
£1,136.06
(exc. VAT)
£1,363.27
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,136.06 |
*price indicative
- RS Stock No.:
- 599-740
- Mfr. Part No.:
- CDB740F
- Brand:
- Hager
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hager | |
| Product Type | RCD Switch | |
| Current Rating | 40A | |
| Number of Poles | 4 | |
| Range | Hager | |
| Series | CDB | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type B | |
| Mount Type | DIN Rail | |
| Terminal Type | Screw | |
| Standards/Approvals | EN 61008-1 | |
| Height | 85mm | |
| Width | 72mm | |
| Depth | 70mm | |
| Breaking Capacity | 0.8kA | |
| Rated AC Voltage | 400V ac | |
| Earth Leakage Protection Type | Type B | |
| Select all | ||
|---|---|---|
Brand Hager | ||
Product Type RCD Switch | ||
Current Rating 40A | ||
Number of Poles 4 | ||
Range Hager | ||
Series CDB | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type B | ||
Mount Type DIN Rail | ||
Terminal Type Screw | ||
Standards/Approvals EN 61008-1 | ||
Height 85mm | ||
Width 72mm | ||
Depth 70mm | ||
Breaking Capacity 0.8kA | ||
Rated AC Voltage 400V ac | ||
Earth Leakage Protection Type Type B | ||
- COO (Country of Origin):
- PL
The Hager 3P+N 40A 30mA type B residual current device with aligned terminals protects people from the effects of earth leakage currents. Suitable for three-phase networks, this 40 amp device has a sensitivity of 30mA and detects type B fault currents. This model is particularly recommended for tertiary applications.
RoHS compliant
IP20 protection rated
Compatible with DIN rail mounting
