Hager CPC Series Residual Current Circuit Breaker, 80 A, 1-Pole, 300 mA, Type AC, 1.25 kA 230 V ac
- RS Stock No.:
- 597-883
- Mfr. Part No.:
- CPC580F
- Brand:
- Hager
Subtotal (1 unit)*
£453.72
(exc. VAT)
£544.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £453.72 |
*price indicative
- RS Stock No.:
- 597-883
- Mfr. Part No.:
- CPC580F
- Brand:
- Hager
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hager | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 80 A | |
| Number of Poles | 1 | |
| Series | CPC | |
| Trip Sensitivity | 300mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Type AC | |
| Standards/Approvals | EN 61008-1, IEC 60947-3 | |
| Terminal Type | Screw | |
| Width | 36 mm | |
| Height | 85mm | |
| Depth | 70mm | |
| Breaking Capacity | 1.25kA | |
| Earth Leakage Protection Type | AC | |
| Rated AC Voltage | 230 V ac | |
| Select all | ||
|---|---|---|
Brand Hager | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 80 A | ||
Number of Poles 1 | ||
Series CPC | ||
Trip Sensitivity 300mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Type AC | ||
Standards/Approvals EN 61008-1, IEC 60947-3 | ||
Terminal Type Screw | ||
Width 36 mm | ||
Height 85mm | ||
Depth 70mm | ||
Breaking Capacity 1.25kA | ||
Earth Leakage Protection Type AC | ||
Rated AC Voltage 230 V ac | ||
- COO (Country of Origin):
- PL

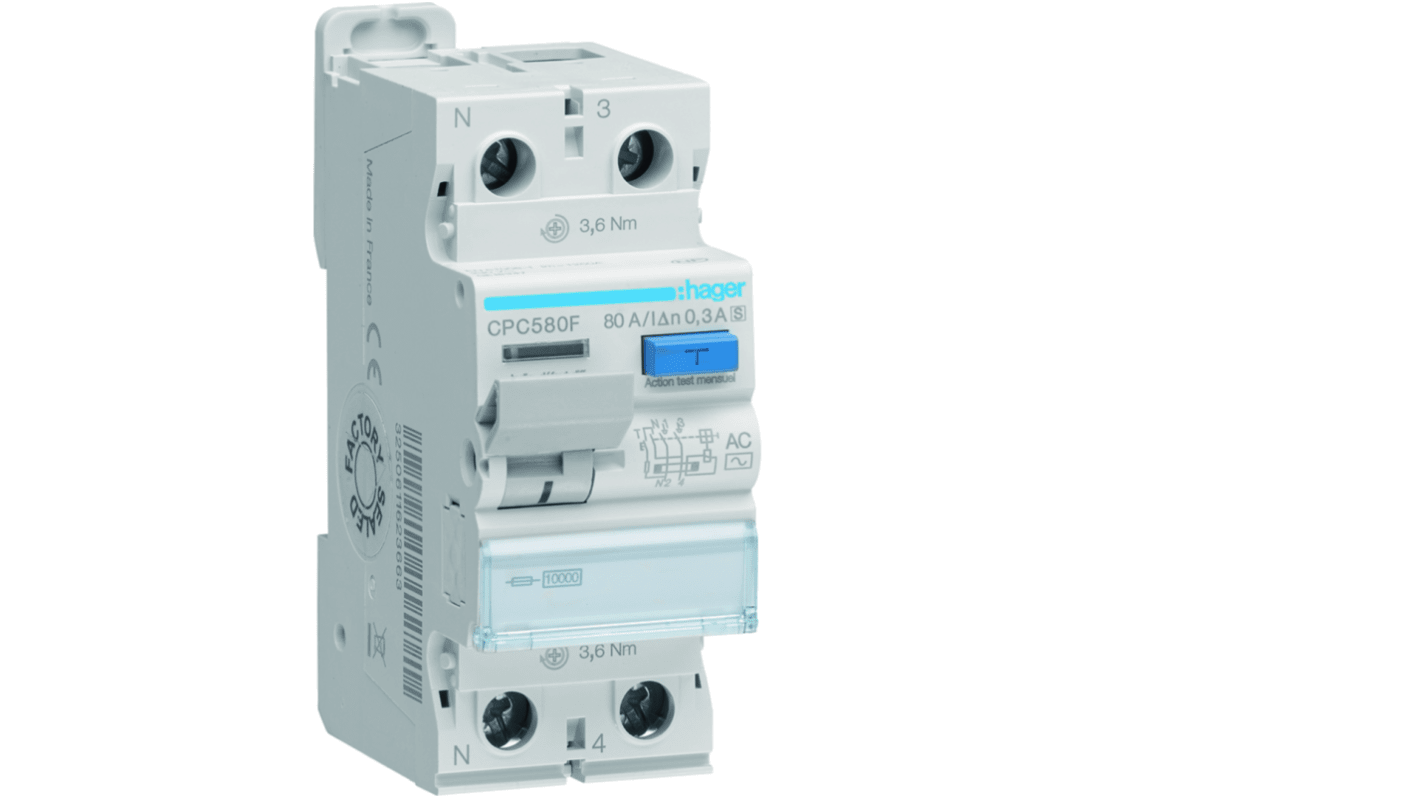

The Hager Residual current circuit breaker (RCCB) designed for electrical protection against leakage currents. It features a rated operational voltage of 230V AC and a rated current of 80A. With a differential sensitivity of 300mA, it ensures protection against earth leakage faults.
No of modules 2
Compact modular design
IP20 protection
