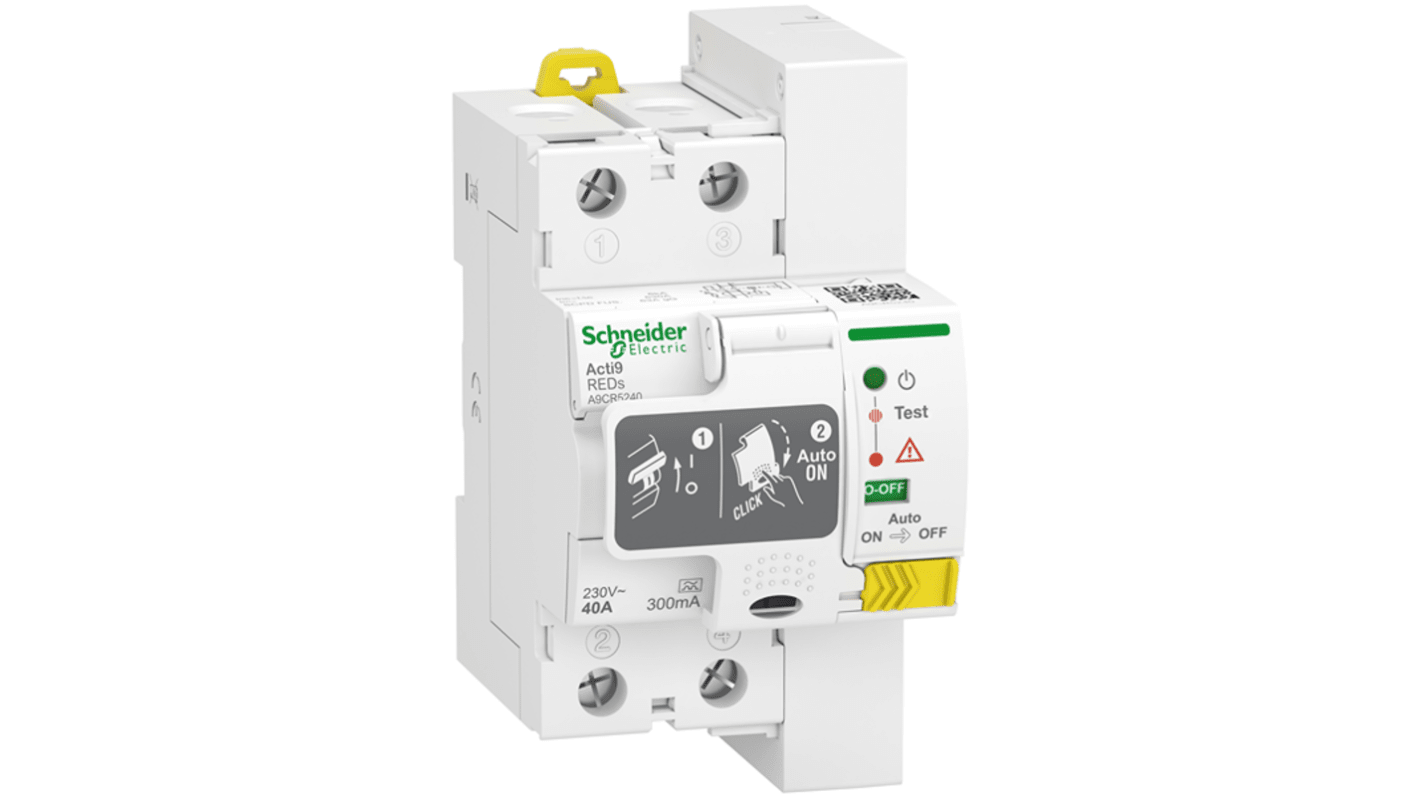

Schneider Electric A9 Series Residual Current Circuit Breaker, 40A, 2-Pole, 30 mA, Instantaneous, 630 A 230V ac
- RS Stock No.:
- 358-300
- Mfr. Part No.:
- A9CR5240
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£609.17
(exc. VAT)
£731.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £609.17 |
*price indicative
- RS Stock No.:
- 358-300
- Mfr. Part No.:
- A9CR5240
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker | |
| Current Rating | 40A | |
| Number of Poles | 2 | |
| Series | A9 | |
| Range | Acti9 | |
| Trip Sensitivity | 30mA | |
| Mount Type | DIN Rail | |
| Tripping Characteristics | Instantaneous | |
| Standards/Approvals | RoHS, EN 50557 | |
| Height | 106mm | |
| Width | 54mm | |
| Depth | 82mm | |
| Breaking Capacity | 630A | |
| Rated AC Voltage | 230V ac | |
| Reset Actuator Type | Toggle | |
| Earth Leakage Protection Type | Type A | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker | ||
Current Rating 40A | ||
Number of Poles 2 | ||
Series A9 | ||
Range Acti9 | ||
Trip Sensitivity 30mA | ||
Mount Type DIN Rail | ||
Tripping Characteristics Instantaneous | ||
Standards/Approvals RoHS, EN 50557 | ||
Height 106mm | ||
Width 54mm | ||
Depth 82mm | ||
Breaking Capacity 630A | ||
Rated AC Voltage 230V ac | ||
Reset Actuator Type Toggle | ||
Earth Leakage Protection Type Type A | ||
- COO (Country of Origin):
- PT
The Schneider Electric Residual Current Circuit Breaker, with the device short name REDs, is designed to provide recloser protection. It is typically located in the outgoer section of the system, ensuring protection for downstream circuits. The device operates at a network frequency of 50 Hz, effectively detecting and responding to any residual current faults, enhancing safety and preventing electrical hazards in the system.
Mechanical durability is of 4000 cycles
EN 50557 certified
IP20 rated
RoHS compliant
