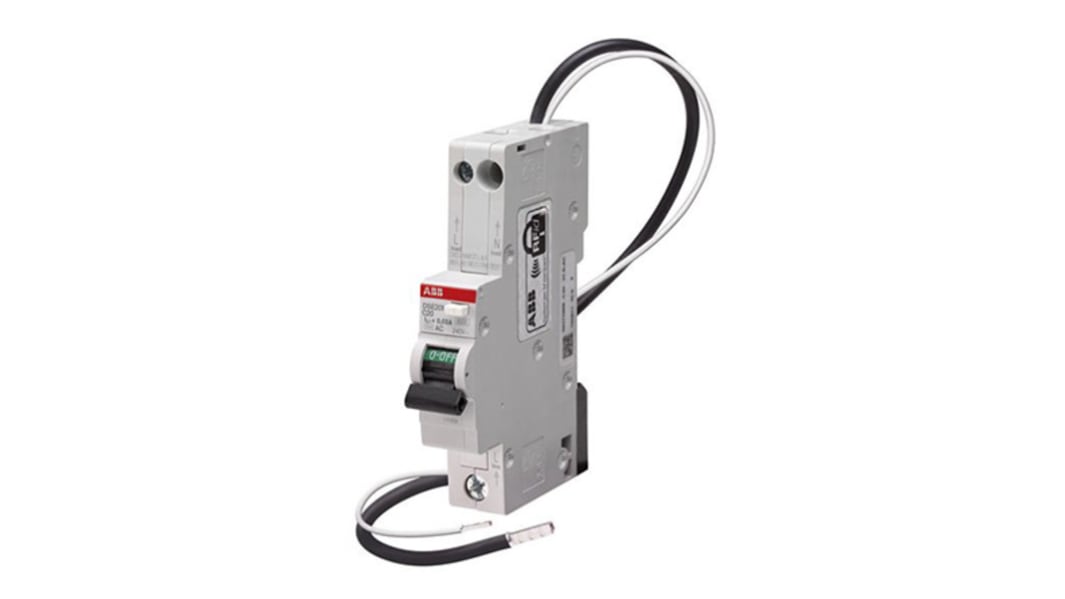

ABB RCBO, 25A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range
- RS Stock No.:
- 914-4067
- Mfr. Part No.:
- 2CSR255051R1255 DSE201 B25 AC30 - N Blue
- Brand:
- ABB
Subtotal (1 unit)*
£69.72
(exc. VAT)
£83.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 7 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £69.72 |
*price indicative
- RS Stock No.:
- 914-4067
- Mfr. Part No.:
- 2CSR255051R1255 DSE201 B25 AC30 - N Blue
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Current Rating | 25A | |
Range | System Pro M Compact | |
Number of Poles | 1P+N | |
Circuit Breaker Type | RCBO | |
Trip Sensitivity | 30mA | |
Series | DSE201 | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 240V | |
Mounting Style | DIN Rail Mount | |
Overall Depth | 68.9mm | |
Tripping Mechanism | Thermal-Magnetic | |
Reset Actuator Type | Toggle Switch | |
Overall Width | 100mm | |
Overall Length | 17.5mm | |
Terminal Contact Type | Screw | |
Overall Dimensions | 17.5 x 100 x 68.9mm | |
Select all | ||
---|---|---|
Brand ABB | ||
Current Rating 25A | ||
Range System Pro M Compact | ||
Number of Poles 1P+N | ||
Circuit Breaker Type RCBO | ||
Trip Sensitivity 30mA | ||
Series DSE201 | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 240V | ||
Mounting Style DIN Rail Mount | ||
Overall Depth 68.9mm | ||
Tripping Mechanism Thermal-Magnetic | ||
Reset Actuator Type Toggle Switch | ||
Overall Width 100mm | ||
Overall Length 17.5mm | ||
Terminal Contact Type Screw | ||
Overall Dimensions 17.5 x 100 x 68.9mm | ||
- COO (Country of Origin):
- IT
DSE201 Series Type B RCBO's
ABB DSE201 series are 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module. For the protection against short circuit currents, overload, earth fault currents, indirect contacts and additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.
ABB RCBO's & RCCB's
RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
