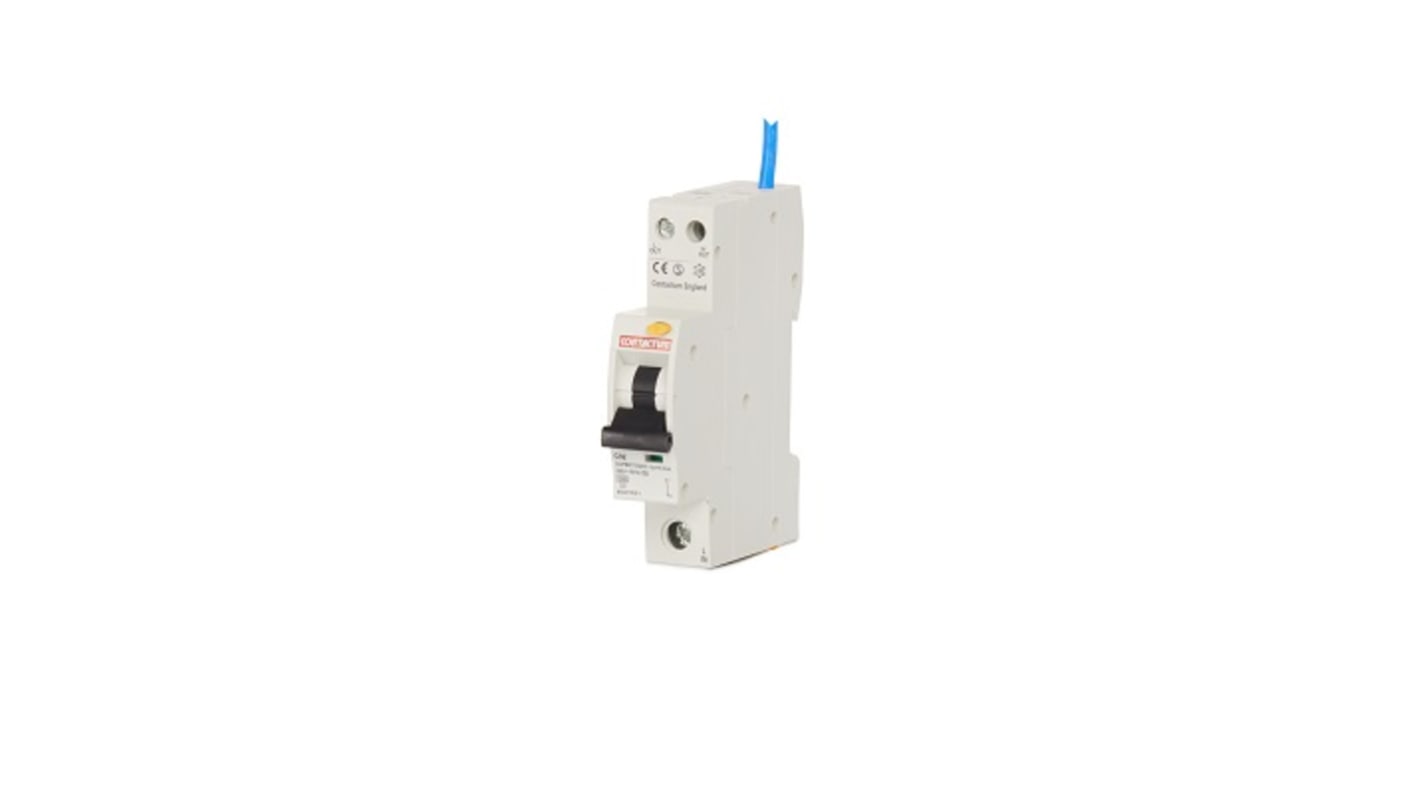

Contactum RCBO, 32A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type C, CCPBR Range
- RS Stock No.:
- 240-6402
- Mfr. Part No.:
- CCPBR1032AC
- Brand:
- Contactum
5 In stock - FREE next working day delivery available
Added
Price Each
£29.62
(exc. VAT)
£35.54
(inc. VAT)
| Units | Per unit |
| 1 + | £29.62 |
- RS Stock No.:
- 240-6402
- Mfr. Part No.:
- CCPBR1032AC
- Brand:
- Contactum
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Contactum 32A 10KA Class A Type C SP Compact RCBO comes with a box quantity 5.
ABC indicator: A
Colour: White
Associated standards: BS EN 61009
Rated voltage: 220-250V
Rated kA: 10
Frequency: 50-60Hz
Wiring system: 1 pole
Min. switch contact gap: 4mm
Ambient operating temperature: -5 to 40°C (24hour average not exceeding 25°C)
Width in number of modular spacing's: 1
Nature of supply: AC
Release characteristic: C
Mounting method: DIN Rail
Colour: White
Associated standards: BS EN 61009
Rated voltage: 220-250V
Rated kA: 10
Frequency: 50-60Hz
Wiring system: 1 pole
Min. switch contact gap: 4mm
Ambient operating temperature: -5 to 40°C (24hour average not exceeding 25°C)
Width in number of modular spacing's: 1
Nature of supply: AC
Release characteristic: C
Mounting method: DIN Rail
Specifications
Attribute | Value |
|---|---|
| Current Rating | 32A |
| Number of Poles | 1 |
| Trip Sensitivity | 30mA |
| Tripping Characteristics | Type C |
| Range | CCPBR |
| Series | COMPACT |
