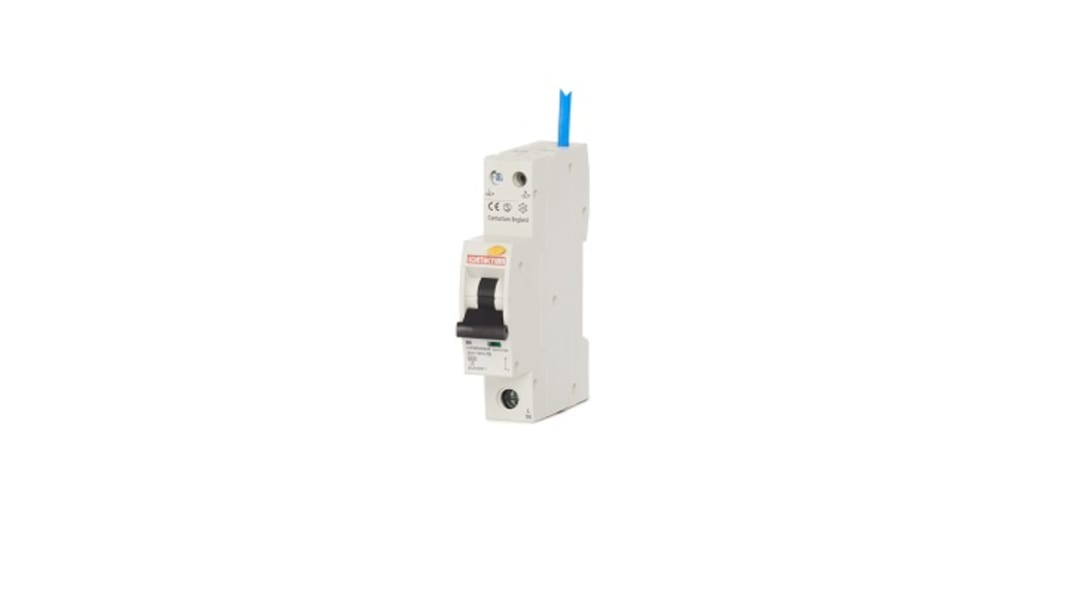

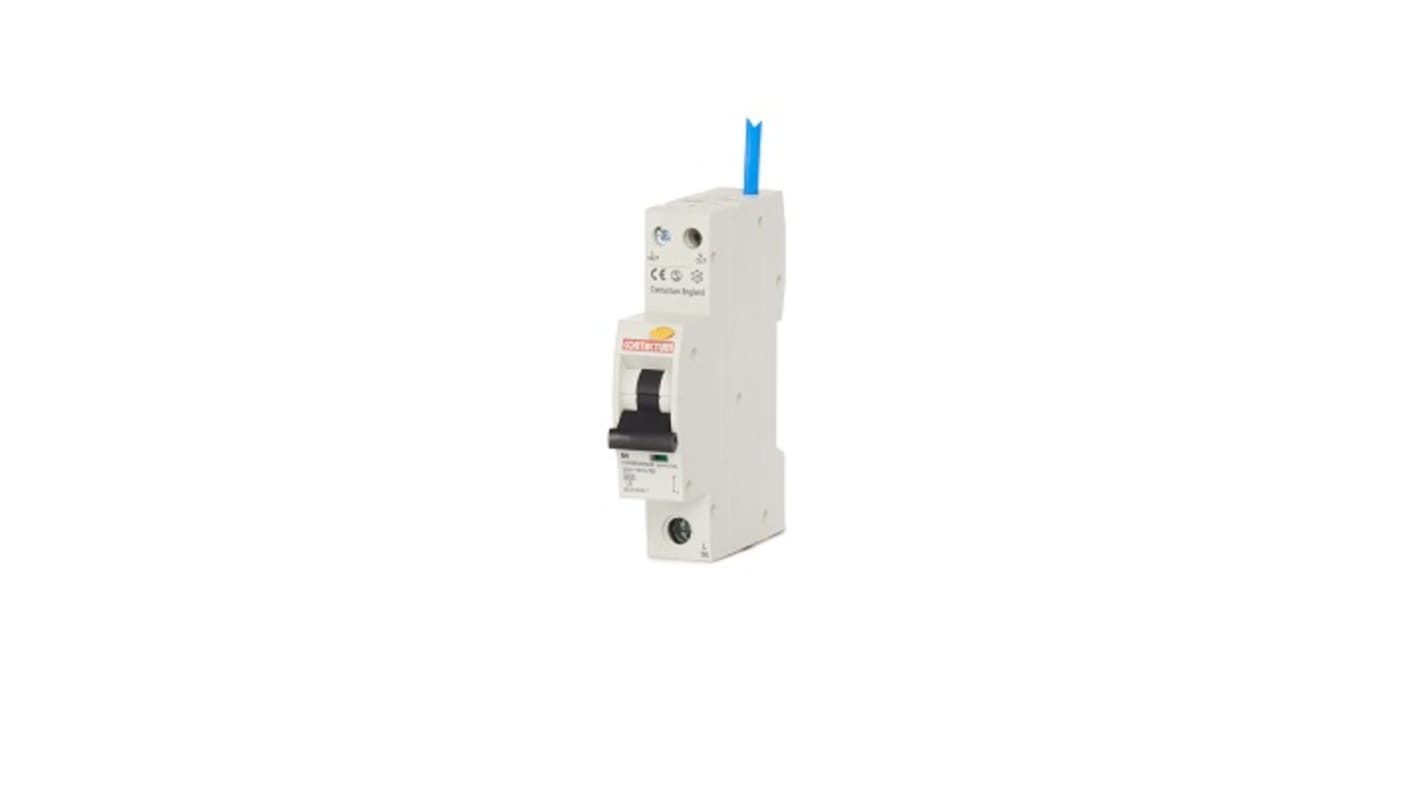

Contactum Residual Current Circuit Breaker with Overload Protection, 6A Current Rating, 1-Pole, 30 mA Trip Sensitivity,

View all RCBOs

Subtotal (1 unit)*

£23.70

(exc. VAT)

£28.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 11 unit(s) shipping from 13 April 2026
  • Plus 1 unit(s) shipping from 13 April 2026
  • Plus 40 unit(s) shipping from 14 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£23.70

*price indicative

RS Stock No.:
240-6382
Mfr. Part No.:
CCPBR0606AB
Brand:
Contactum
Find similar products by selecting one or more attributes.
Select all

Brand

Contactum

Current Rating

6A

Product Type

Residual Current Circuit Breaker with Overload Protection

Series

Compact

Number of Poles

1

Range

CCPBR

Trip Sensitivity

30mA

Tripping Characteristics

Type B

Mount Type

DIN Rail

Rated AC Voltage

230V ac

Terminal Type

Screw

Earth Leakage Protection Type

Type A

Width

19mm

Height

90mm

Depth

75mm

Standards/Approvals

RoHS, IEC, CE

Tripping Mechanism

Thermal Magnetic

Reset Actuator Type

Lever

Breaking Capacity

6kA

Application

General Purpose

COO (Country of Origin):
CN
The Contactum 6A 6KA Class A Type B SP Compact RCBO comes with a box quantity 5.

ABC indicator: A

Colour: White

Associated standards: BS EN 61009

Rated voltage: 220-250V

Rated kA: 6

Frequency: 50-60Hz

Wiring system: 1 pole

Ambient operating temperature: -5 to 40°C (24hour average not exceeding 25°C)

Width in number of modular spacing's: 1

Nature of supply: AC

Release characteristic: B

Mounting method: DIN Rail
