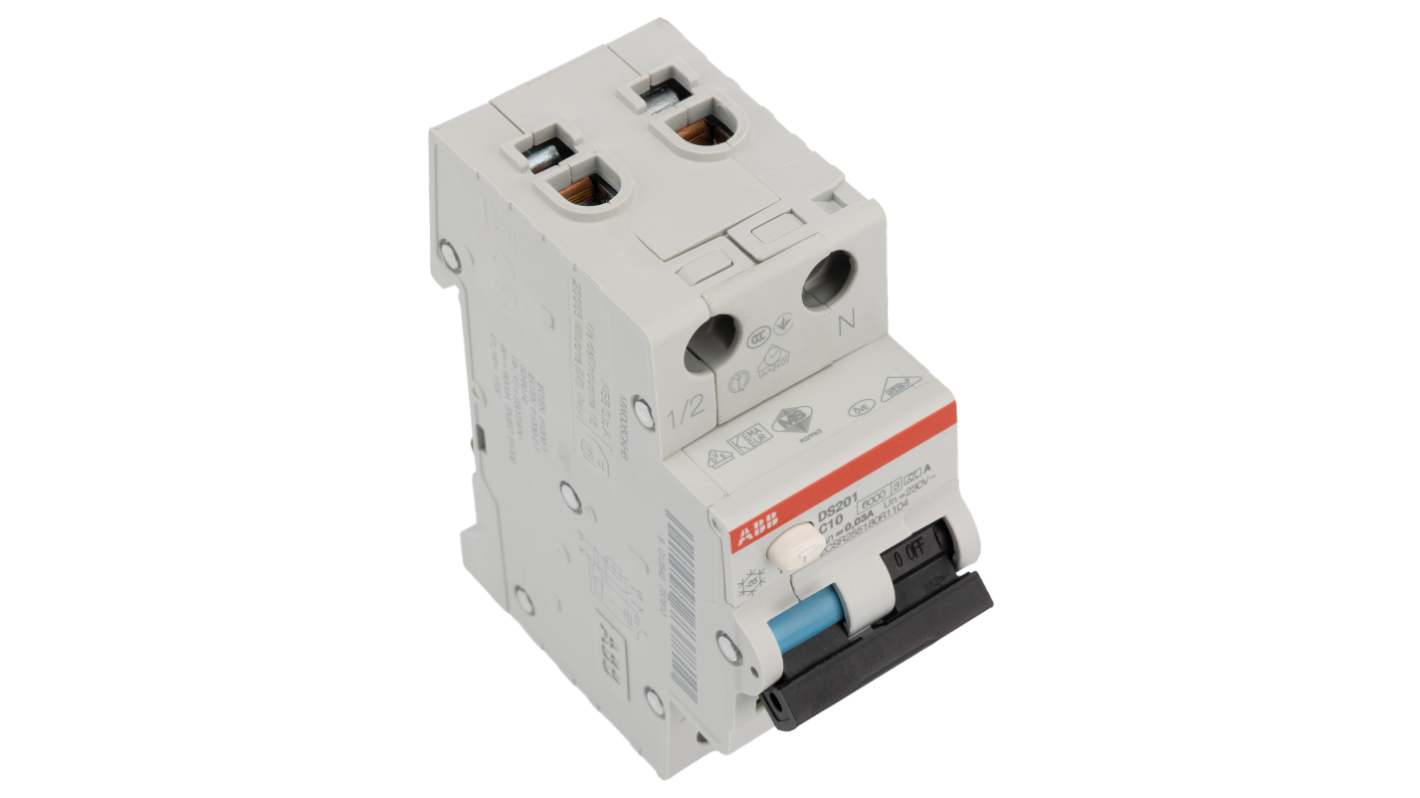

ABB Residual Current Circuit Breaker with Overload Protection, 10A Current Rating, 2-Pole, 30 mA Trip Sensitivity, Type

RS Stock No.:: 201-6938
Distrelec Article No.:: 303-11-551
Mfr. Part No.:: 2CSR255180R1104 DS201 C10 A30
Brand:: ABB

ABB Residual Current Circuit Breaker with Overload Protection, 10A Current Rating, 2-Pole, 30 mA Trip Sensitivity, Type

View all RCBOs

Subtotal (1 unit)*

£178.48

(exc. VAT)

£214.18

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

9 unit(s) ready to ship
Plus 6 unit(s) shipping from 04 December 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£178.48

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS Stock No.:: 201-6938
Distrelec Article No.:: 303-11-551
Mfr. Part No.:: 2CSR255180R1104 DS201 C10 A30
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Current Rating	10A
	Product Type	Residual Current Circuit Breaker with Overload Protection
	Series	DS201
	Range	System Pro M Compact
	Number of Poles	2
	Trip Sensitivity	30mA
	Tripping Characteristics	Type C
	Mount Type	DIN Rail
	Rated AC Voltage	230V ac
	Terminal Type	Screw
	Width	35mm
	Depth	69mm
	Height	85mm
	Better World Claim	Designed for Disassembly, Extended Product Life
	Better World Product	Yes
	Standards/Approvals	RoHS, IEC
	Tripping Mechanism	Thermal Magnetic
	Breaking Capacity	6kA

	Select all
	Brand ABB
	Current Rating 10A
	Product Type Residual Current Circuit Breaker with Overload Protection
	Series DS201
	Range System Pro M Compact
	Number of Poles 2
	Trip Sensitivity 30mA
	Tripping Characteristics Type C
	Mount Type DIN Rail
	Rated AC Voltage 230V ac
	Terminal Type Screw
	Width 35mm
	Depth 69mm
	Height 85mm
	Better World Claim Designed for Disassembly, Extended Product Life
	Better World Product Yes
	Standards/Approvals RoHS, IEC
	Tripping Mechanism Thermal Magnetic
	Breaking Capacity 6kA

ABB DS201 Series RCBO, 10A Current Rating, 2 Poles - 2CSR255180R1104 DS201 C10 A30

This RCBO is a reliable solution designed for the protection of single-phase circuits. It offers a current rating of 10A and a trip sensitivity of 30 mA, ensuring safety against overloads and earth fault currents. With compact dimensions of 69 x 35 x 85mm, this DIN Rail RCBO is suitable for various installations while meeting IEC standards.

Features & Benefits

• Designed with a toggle switch for easy manual reset

• Provides protection against indirect and direct contacts

• Features Type C tripping characteristics for reliable circuit safety

• Offers a breaking capacity of 10 kA at maximum voltage

• Suitable for use in environments up to 55°C ambient temperatures

• Equipped with screw terminals for secure cable connections

Applications

• Ideal for safeguarding residential electrical circuits

• Used with automation and control systems requiring surge protection

• Employed in situations needing reliable earth fault protection

• Suitable for installations in commercial electrical systems

• Integrates seamlessly into various electrical configurations

What standards does this device comply with?

This device meets the IEC 61009-1 and IEC 61009-2-1 standards, ensuring it adheres to crucial safety regulations for residual current devices.

Can this device support various cable sizes for connection?

Yes, it accommodates a range of cable sizes, from 0.75 mm² to 25 mm² for stranded cables, allowing flexibility in installation.

What type of environments can it operate in?

It operates effectively in environments ranging from -25°C to 55°C, making it suitable for diverse applications.

How does the tripping characteristic affect its performance?

The Type C tripping characteristic allows it to handle short-circuit currents, optimising performance in circuits with inductive loads.
