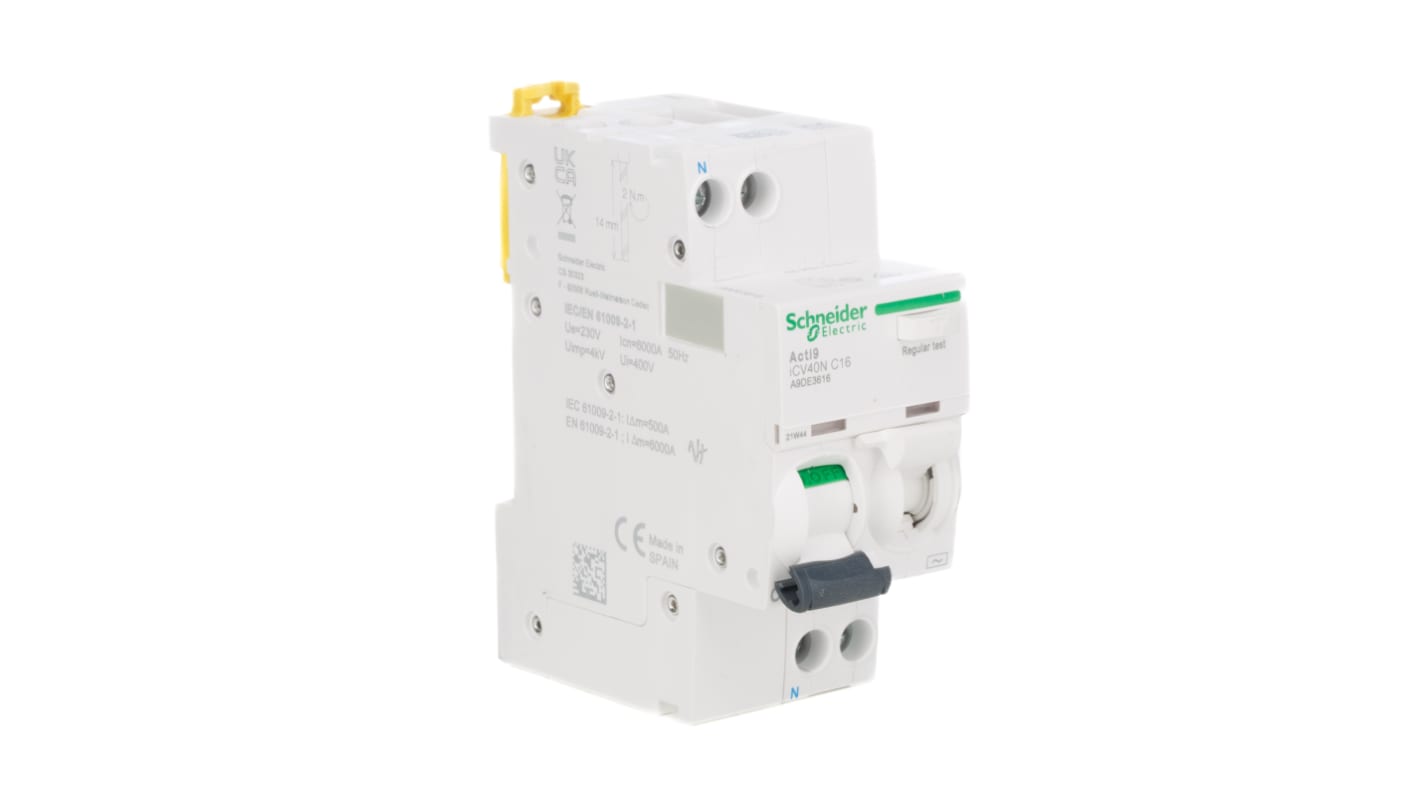

Schneider Electric RCBO, 16A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Acti9 Range

View all RCBOs

Subtotal (1 unit)*

£195.13

(exc. VAT)

£234.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship
  • Plus 7 unit(s) ready to ship from another location
  • Plus 55 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£195.13

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
201-2260
Distrelec Article No.:
303-97-026
Mfr. Part No.:
A9DE3616
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Current Rating

16A

Number of Poles

1P+N

Range

Acti9

Series

Acti9 iCV40

Trip Sensitivity

30mA

Circuit Breaker Type

RCBO

Rated AC Voltage

230V

Mounting Style

DIN Rail Mount

Earth Leakage Protection Type

Type AC

Better World Product

Yes

Better World Verification

Green Premium

Overall Depth

85mm

Overall Width

73mm

Tripping Mechanism

Thermal-Magnetic

Overall Length

36mm

Overall Dimensions

36 x 73 x 85mm

Breaking Capacity at Maximum Voltage Rating

6 kA

Schneider Electric Residual Current Breaker With Over-Current, 16A, 30mA Trip Sensitivity - A9 Series - A9DE3616


Ensure the safety of people, equipment and buildings with this residual current breaker from Schneider Electric. It includes overcurrent protection to help prevent short circuits or overloads and is suited to low-voltage DIN rail systems. The innovative device also offers protection to people against direct or indirect shock and reduces the risk of an electrical fire. Its visible fault indicator allows for fast and optimised on-site servicing, while its reinforced insulation keeps operators safe during maintenance. This unit is simple to install, thanks to its reduced wiring and connection requirements.

Features & Benefits


• Thermal magnetic trip technology for high responsiveness to excessive current flow and heat for enhanced versatility
• Reacts instantly to earth leakages for improved safety levels
• Clip-on mounting for simple and tool-free attachment to a DIN rail

Applications


• Commercial lighting systems
• Residential power distribution boards
• Multi-occupancy buildings and office blocks

How long will this residual circuit device last?


This robust residual circuit breaker from Schneider Electric has a mechanical and electrical lifetime of 20,000 cycles, so it's long-lasting and durable. Exact service length is determined by factors such as frequency of use and environmental conditions.
