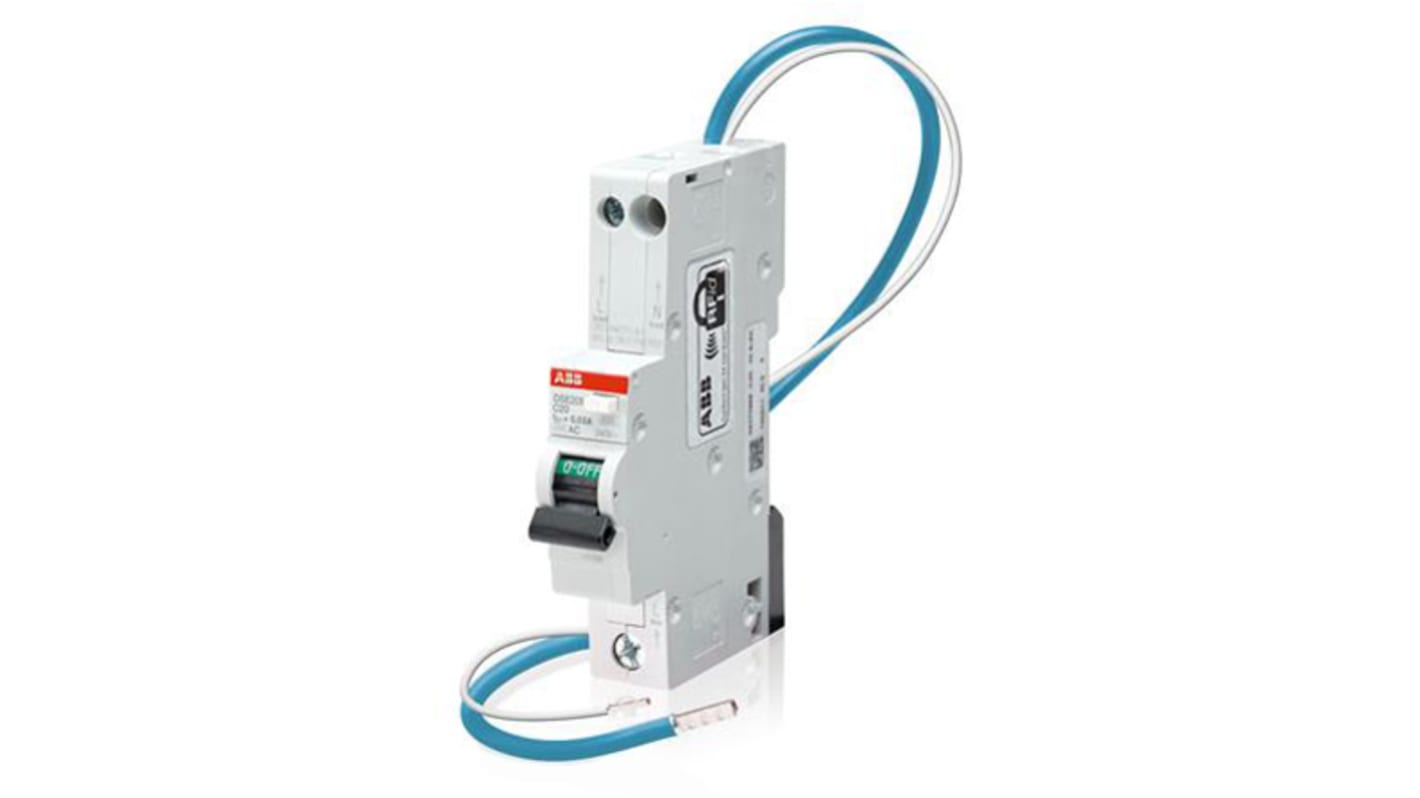

ABB RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range

View all RCBOs

Subtotal (1 unit)*

£103.00

(exc. VAT)

£123.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£103.00

*price indicative

RS Stock No.:
136-7787
Mfr. Part No.:
2CSR275151R1204 DSE201 M C20 A30 - N Blue
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Current Rating

20A

Range

System Pro M Compact

Number of Poles

1P+N

Circuit Breaker Type

RCBO

Series

DSE201 M

Trip Sensitivity

30mA

Tripping Characteristics

Type C

Rated AC Voltage

230 → 240V

Mounting Style

DIN Rail Mount

Earth Leakage Protection Type

A

Overall Depth

68.9mm

Standards Met

IEC

Overall Width

115mm

Terminal Contact Type

Screw

Overall Dimensions

17.6 x 115 x 68.9mm

Tripping Mechanism

Thermal-Magnetic

Reset Actuator Type

Toggle Switch

Breaking Capacity at Maximum Voltage Rating

10 kA

Overall Length

17.6mm

ABB RCBO, 264V Max Operating Voltage, 500V AC Insulation Voltage - DSE201 M Series - 2CSR275151R1204 DSE201 M C20 A30 - N Blue


Want to guard your appliances against electrical faults? Put with this RCBO from ABB on duty. It uses a thermal-magnetic tripping system to monitor your circuit and cut power when it senses imbalances in the current flow, preventing the risk of fire and electric shocks. The unit has type-C characteristics, which means it trips at 5 to 10 times its rated 20A current, making it a practical option for applications where you expect frequent power surges. Thanks to its modular design, this piece of kit is a good fit when teamed up with other circuit-protection components.

Features & Benefits


• Breaking capacity of 10kA to withstand high inrush currents without experiencing damage
• Broad operating temperature range between -25°C and +55°C for use in challenging conditions
• Green and red window for easy identification of the contact position
• Maximum operating voltage of 264V for use in low voltage settings

Applications


• Commercial buildings
• Warehouses and storage facilities
• Automotive workshops

What size is this RCBO?


This unit has compact dimensions of 115 (H) x 17.6 (W) x 68.9mm (D), meaning it's a space-efficient solution for use in confined settings.


ABB RCBO's & RCCB's


RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
