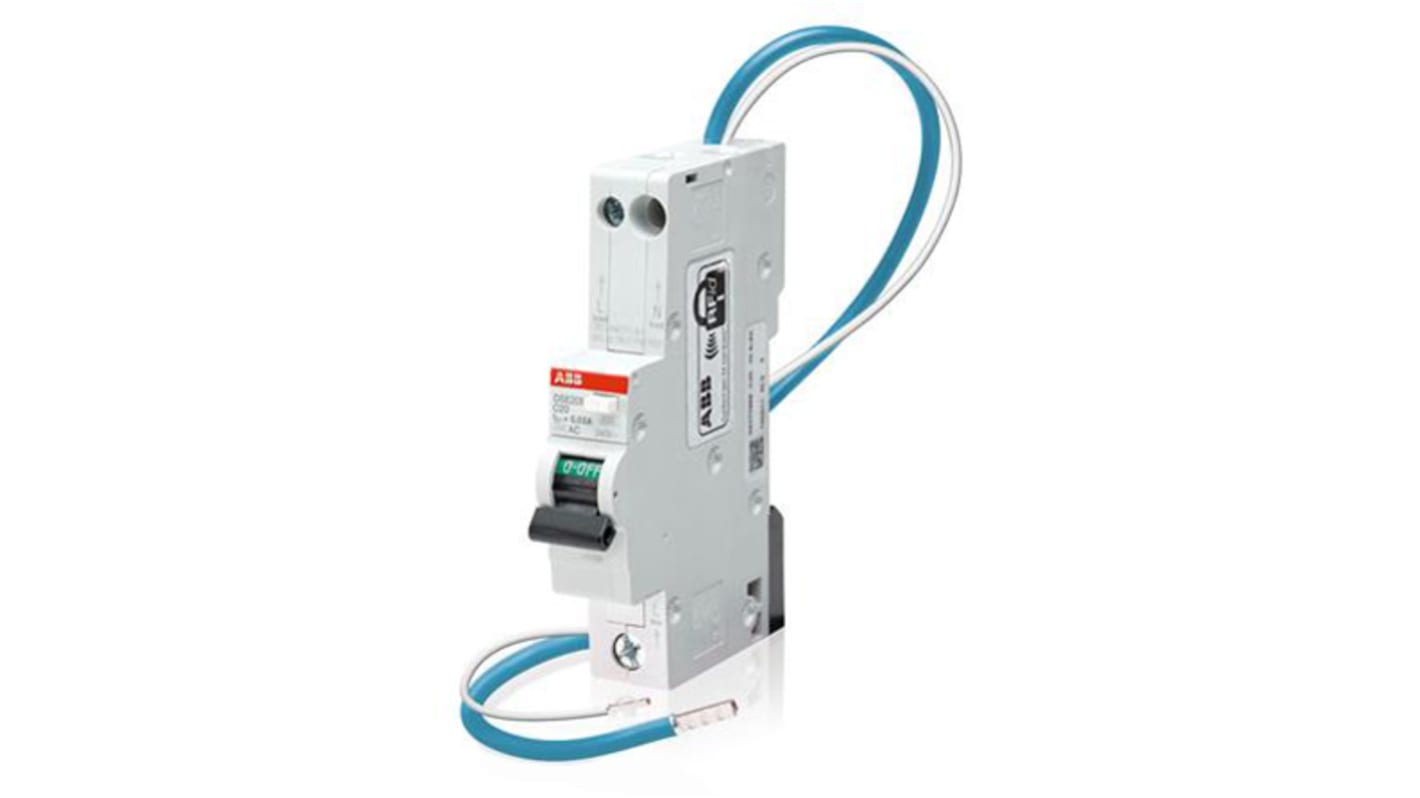

ABB Residual Current Circuit Breaker with Overload Protection, 20 A Current Rating, 1-Pole, 30 mA Trip Sensitivity, Type

RS Stock No.:: 136-7779
Mfr. Part No.:: 2CSR275151R1205 DSE201 M B20 A30 - N Blue
Brand:: ABB

ABB Residual Current Circuit Breaker with Overload Protection, 20 A Current Rating, 1-Pole, 30 mA Trip Sensitivity, Type

View all RCBOs

Subtotal (1 unit)*

£103.00

(exc. VAT)

£123.60

(inc. VAT)

FREE delivery for orders over £50.00

Stocked by manufacturer

Ready to ship from 10 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£103.00

*price indicative

RS Stock No.:: 136-7779
Mfr. Part No.:: 2CSR275151R1205 DSE201 M B20 A30 - N Blue
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Current Rating	20 A
	Product Type	Residual Current Circuit Breaker with Overload Protection
	Number of Poles	1
	Range	System Pro M Compact
	Series	System Pro M Compact
	Trip Sensitivity	30mA
	Tripping Characteristics	Type B
	Mount Type	DIN Rail
	Rated AC Voltage	240 V ac
	Terminal Type	Screw
	Earth Leakage Protection Type	Type A
	Height	115mm
	Depth	69mm
	Width	18 mm
	Standards/Approvals	CE
	Breaking Capacity	10kA
	Reset Actuator Type	Toggle Switch
	Tripping Mechanism	Thermal Magnetic

	Select all
	Brand ABB
	Current Rating 20 A
	Product Type Residual Current Circuit Breaker with Overload Protection
	Number of Poles 1
	Range System Pro M Compact
	Series System Pro M Compact
	Trip Sensitivity 30mA
	Tripping Characteristics Type B
	Mount Type DIN Rail
	Rated AC Voltage 240 V ac
	Terminal Type Screw
	Earth Leakage Protection Type Type A
	Height 115mm
	Depth 69mm
	Width 18 mm
	Standards/Approvals CE
	Breaking Capacity 10kA
	Reset Actuator Type Toggle Switch
	Tripping Mechanism Thermal Magnetic

ABB RCBO, 3W Power Loss, 4kV Rated Impulse Withstand Voltage - DSE201 M Series - 2CSR275151R1205 DSE201 M B20 A30 - N Blue

Don't let residual currents and overloads trip up productivity – protect your circuits with this RCBO from ABB. In the event of a fault, it steps in to cut power to your equipment instantly, saving it from damage. The unit's thermoplastic housing can resist impact, so it's tough enough to brave the rigours of tough industrial environments. Thanks to its narrow 18mm width, it sits neatly in setups with limited space. After it's done its job, a toggle switch makes it a doddle to reset.

Features & Benefits

• Mechanical endurance of 20,000 operating cycles for long-term performance

• 4kV rated impulse withstand voltage to handle sudden power surges without suffering damage

• 20A current rating makes it suitable for high-current-consuming applications

• Wide operating temperature range between -25°C and +55°C for use in demanding conditions

Applications

• Residential wiring

• Industrial lighting systems

• Process and packaging equipment

Is this RCBO finger-safe?

Yes, this unit's terminals have an IP20 rating, which means that it's protected against anything larger than 12mm, like your fingers. This prevents contact with live parts and enhances safety.
