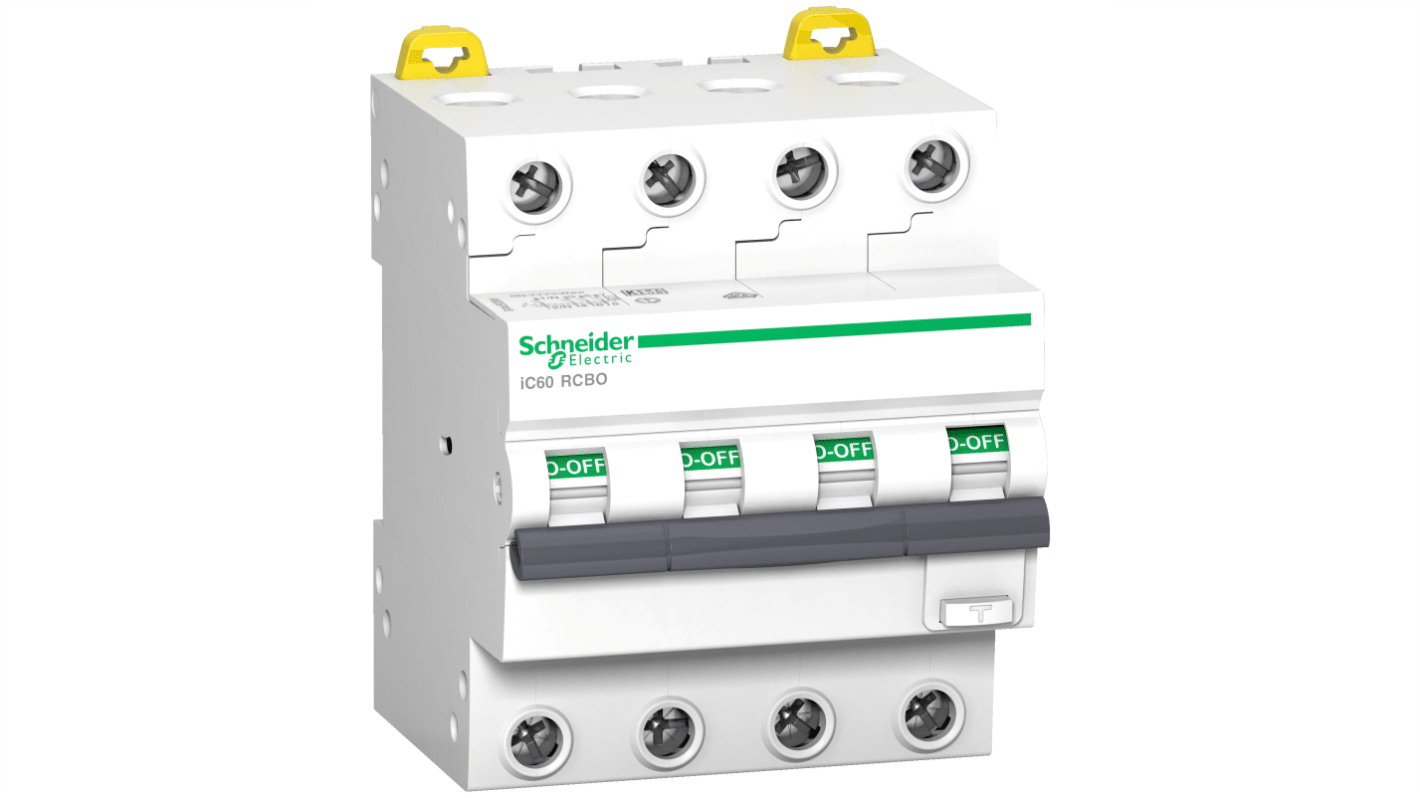

Schneider Electric RCBO, 16A Current Rating, 4-Pole, 30 mA Trip Sensitivity, Type B, Acti9 Range, A9d Range
- RS Stock No.:
- 654-647
- Mfr. Part No.:
- A9D67416
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£280.82
(exc. VAT)
£336.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £280.82 |
*price indicative
- RS Stock No.:
- 654-647
- Mfr. Part No.:
- A9D67416
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | RCBO | |
| Current Rating | 16A | |
| Range | Acti9 | |
| Series | A9d | |
| Number of Poles | 4 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type B | |
| Terminal Type | Screw Clamp | |
| Height | 110mm | |
| Depth | 72mm | |
| Width | 18mm | |
| Breaking Capacity | 10000A | |
| Standards/Approvals | BS EN 61009-1, IEC 61009-2-2, IEC 61009-1 | |
| Application | Distribution | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type RCBO | ||
Current Rating 16A | ||
Range Acti9 | ||
Series A9d | ||
Number of Poles 4 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type B | ||
Terminal Type Screw Clamp | ||
Height 110mm | ||
Depth 72mm | ||
Width 18mm | ||
Breaking Capacity 10000A | ||
Standards/Approvals BS EN 61009-1, IEC 61009-2-2, IEC 61009-1 | ||
Application Distribution | ||
- COO (Country of Origin):
- PT
The Schneider Electric Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 4P RCBO with 4 protected poles, rated current is 16A, and operating voltage is 380VAC to 415VAC. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. Breaking capacity at 280VAC to 415VAC is 6000A according to EN/IEC 61009-2-1 and 6kA according to EN/IEC 60947-2. Its unique Visit rip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with EN/IEC 60947-2 and EN/IEC 61009-2-1 standards.
Number of protected poles is 4
[In] rated current is 16 A
Network type is AC
