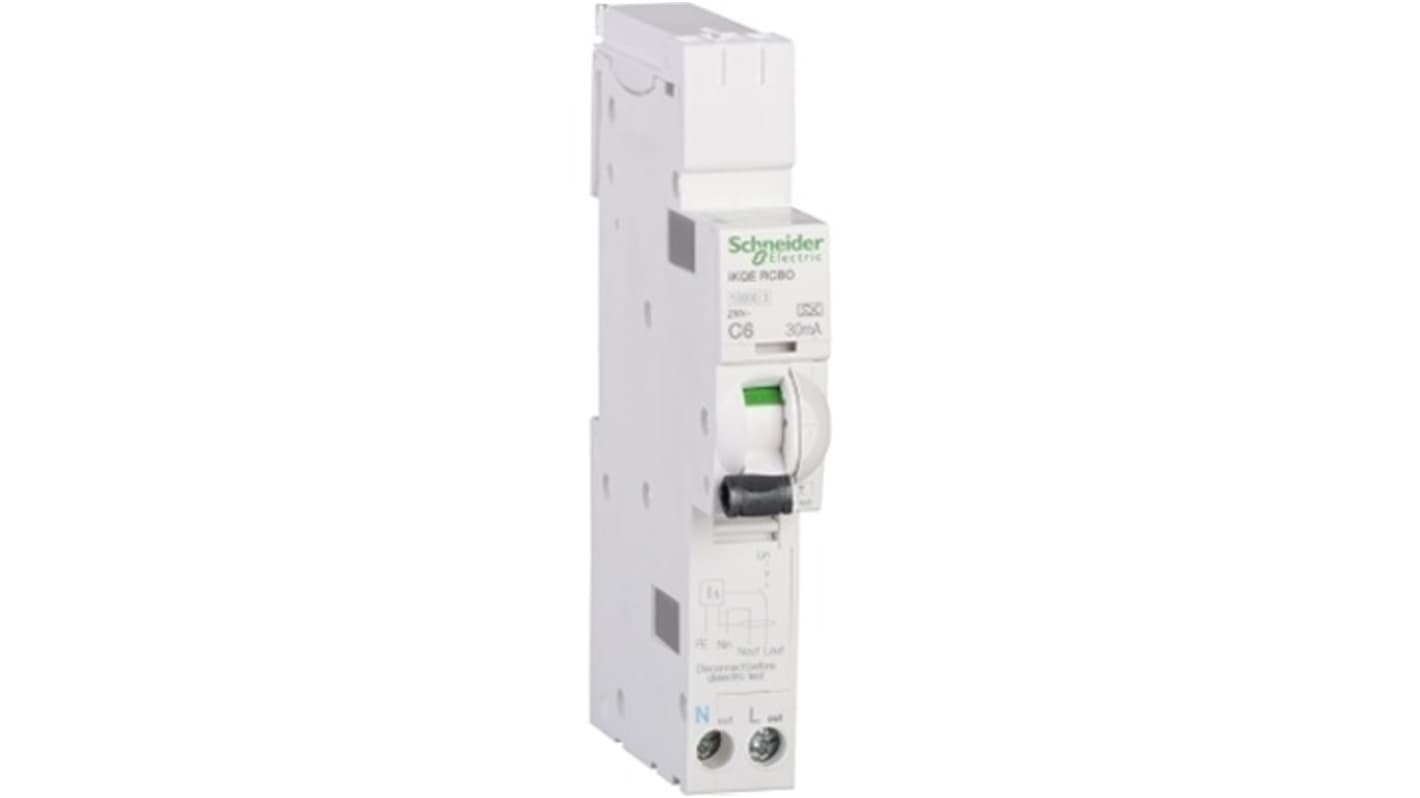

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 6A Current Rating, 1-Pole, 30 mA Trip
- RS Stock No.:
- 339-384
- Mfr. Part No.:
- SEE106C03
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£137.42
(exc. VAT)
£164.90
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £137.42 |
*price indicative
- RS Stock No.:
- 339-384
- Mfr. Part No.:
- SEE106C03
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Current Rating | 6A | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Series | Acti9 | |
| Number of Poles | 1 | |
| Range | Acti9 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 230V ac | |
| Terminal Type | Screw Clamp | |
| Earth Leakage Protection Type | Type A | |
| Width | 18mm | |
| Depth | 70mm | |
| Height | 117mm | |
| Reset Actuator Type | Toggle | |
| Standards/Approvals | IEC 61009-1 IEC 61009-2-2 | |
| Breaking Capacity | 10000A | |
| Tripping Mechanism | Thermal Magnetic | |
| Application | Main Circuit Breaker Application Distribution | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Current Rating 6A | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Series Acti9 | ||
Number of Poles 1 | ||
Range Acti9 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Rated AC Voltage 230V ac | ||
Terminal Type Screw Clamp | ||
Earth Leakage Protection Type Type A | ||
Width 18mm | ||
Depth 70mm | ||
Height 117mm | ||
Reset Actuator Type Toggle | ||
Standards/Approvals IEC 61009-1 IEC 61009-2-2 | ||
Breaking Capacity 10000A | ||
Tripping Mechanism Thermal Magnetic | ||
Application Main Circuit Breaker Application Distribution | ||
RoHS Status: Exempt
- COO (Country of Origin):
- BG
The Schneider Electric RCBO is a robust and reliable earth-leakage circuit breaker designed for distribution applications. It features advanced thermal-magnetic trip unit technology and instantaneous earth-leakage protection, ensuring enhanced operational safety. Its compact design supports easy mounting on DIN rails and compatibility with comb busbars, making it ideal for efficient electrical installations.
1P plus Ns Pole configuration
C curve type
Rated current 6 A
Earth leakage sensitivity 30 mA
IP20 protection
RoHS and REACH compliant
