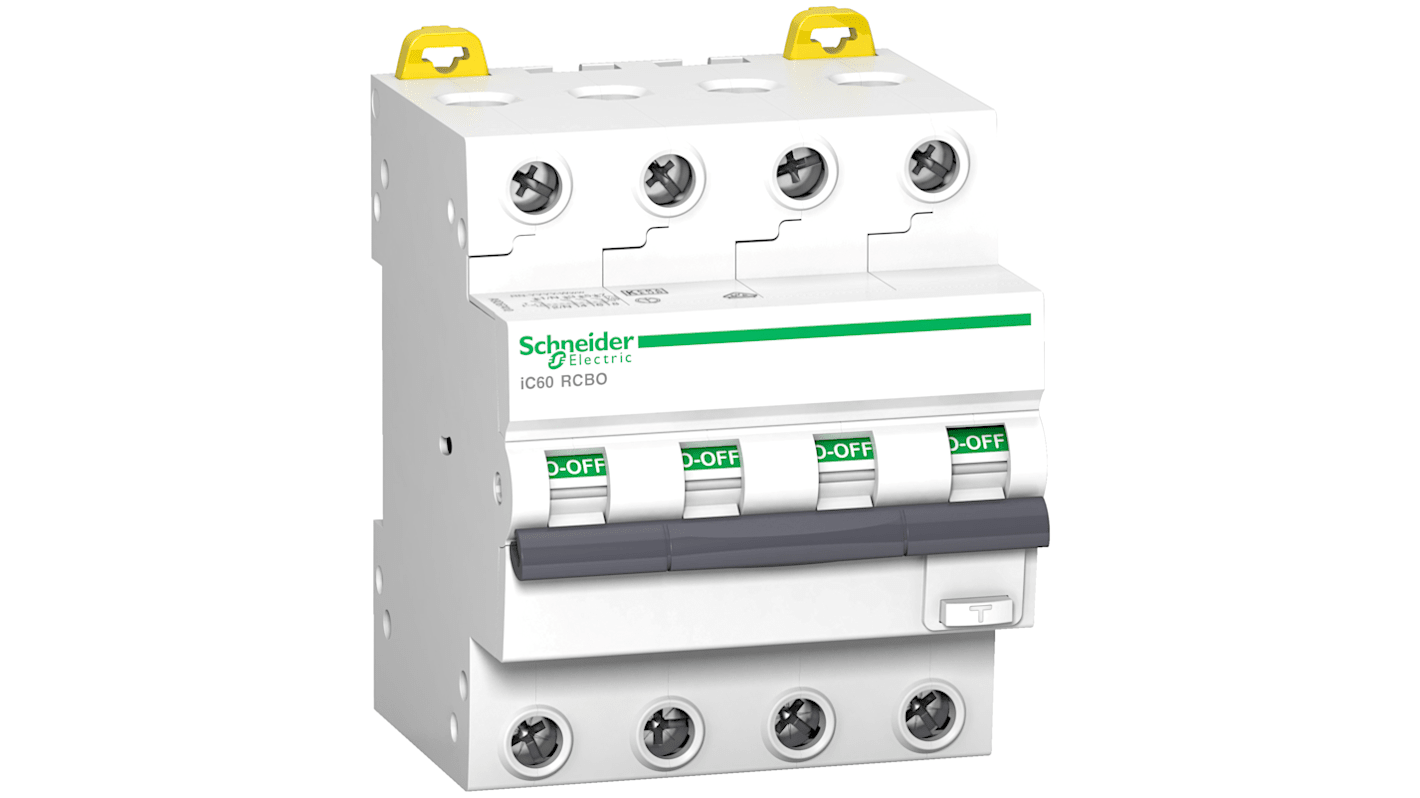

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 25A Current Rating, 4-Pole, 30 mA Trip
- RS Stock No.:
- 130-866
- Mfr. Part No.:
- A9D77425
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£623.50
(exc. VAT)
£748.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £623.50 |
*price indicative
- RS Stock No.:
- 130-866
- Mfr. Part No.:
- A9D77425
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 25A | |
| Series | Acti9 | |
| Range | Acti9 | |
| Number of Poles | 4 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 415V ac | |
| Terminal Type | Tunnel | |
| Depth | 78mm | |
| Width | 72mm | |
| Height | 86mm | |
| Breaking Capacity | 6000A | |
| Application | Distribution | |
| Standards/Approvals | EN/IEC 60947-2, EN/IEC 61009-2-1 | |
| Tripping Mechanism | Thermal Magnetic | |
| Reset Actuator Type | Toggle | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 25A | ||
Series Acti9 | ||
Range Acti9 | ||
Number of Poles 4 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Rated AC Voltage 415V ac | ||
Terminal Type Tunnel | ||
Depth 78mm | ||
Width 72mm | ||
Height 86mm | ||
Breaking Capacity 6000A | ||
Application Distribution | ||
Standards/Approvals EN/IEC 60947-2, EN/IEC 61009-2-1 | ||
Tripping Mechanism Thermal Magnetic | ||
Reset Actuator Type Toggle | ||
- COO (Country of Origin):
- PT
The Schneider Electric Acti9 iC60 RCBO residual current breaker with overcurrent protection. It offers high breaking capacity and sensitivity. It is designed for distribution applications and provides voltage independent tripping technology for enhanced safety.
4P poles configuration for comprehensive protection
30mA earth-leakage sensitivity for quick response
Thermal-magnetic trip unit technology for reliable performance
Toggle control type for easy operation
DIN rail mounting support for flexibility
