nVent SCHROFF Adhesive Base for Use with PCB, 19 x 19 x 9mm
- RS Stock No.:
- 810-4548
- Distrelec Article No.:
- 304-09-153
- Mfr. Part No.:
- 24827009
- Brand:
- nVent SCHROFF

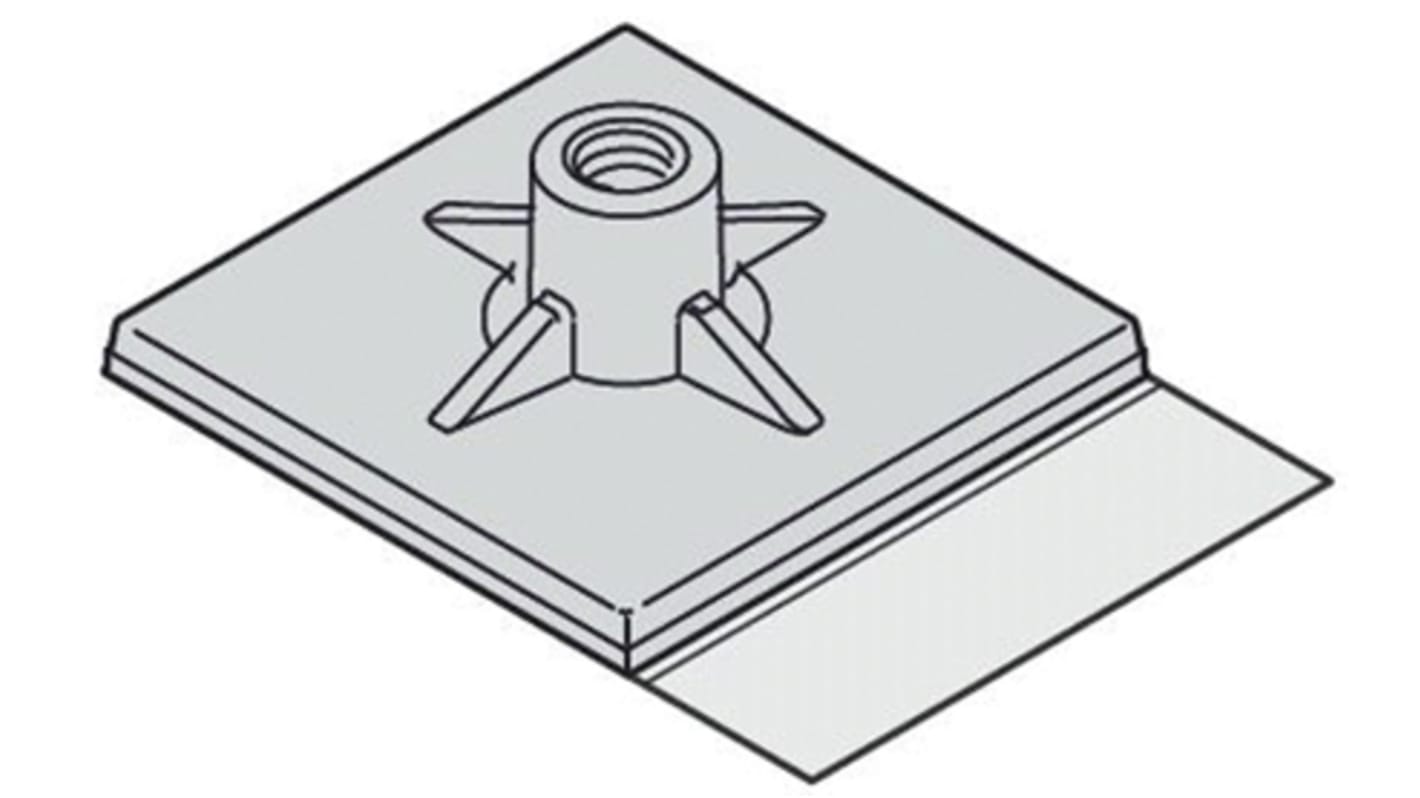

Image representative of range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 810-4548
- Distrelec Article No.:
- 304-09-153
- Mfr. Part No.:
- 24827009
- Brand:
- nVent SCHROFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent SCHROFF | |
| Type | Adhesive Base | |
| For Use With | PCB | |
| Material | Plastic | |
| Dimensions | 19 x 19 x 9mm | |
Select all | ||
|---|---|---|
Brand nVent SCHROFF | ||
Type Adhesive Base | ||
For Use With PCB | ||
Material Plastic | ||
Dimensions 19 x 19 x 9mm | ||
- COO (Country of Origin):
- DE
Interscale M Adhesive Base for Mounting PCBs
For individually fixing PCBs or smaller components
Base is affixed with adhesive foil which acts as a spacer
PCB or component is then bolted to the base with the screw
Can be fixed onto mounting plate or directly onto bottom of case
Base is affixed with adhesive foil which acts as a spacer
PCB or component is then bolted to the base with the screw
Can be fixed onto mounting plate or directly onto bottom of case
Supplied with
10 x adhesive bases, 10 x Torx T8 screws, 10 x A2.7 washers and user manual.
