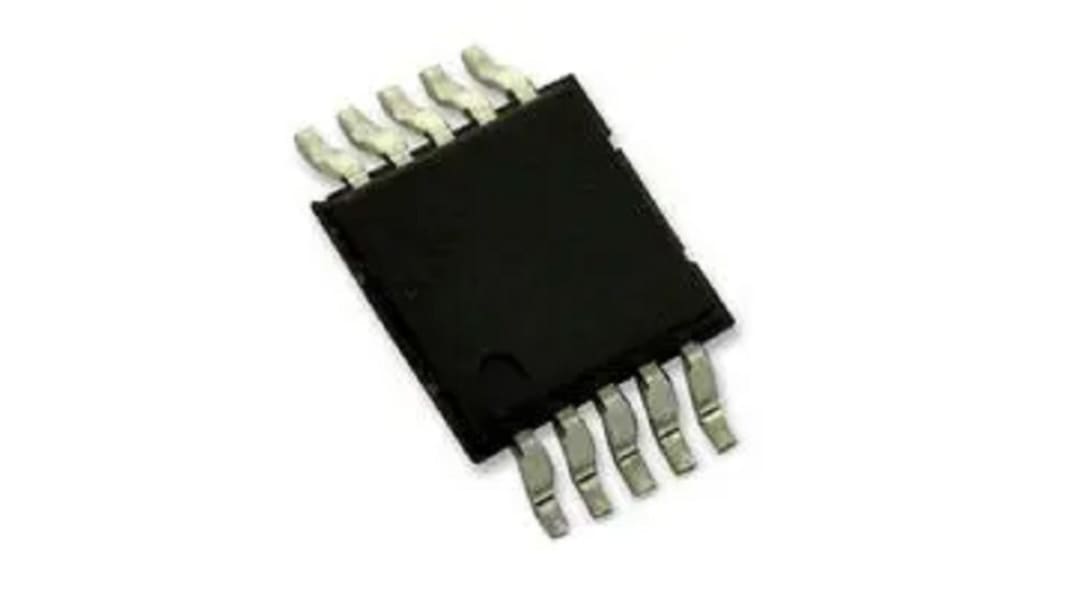

onsemi NCP12711ADNR2G frequency peak current mode PWM Controller, 30 kHz 45 V 10-Pin, MSOP-10
- RS Stock No.:
- 284-9012
- Mfr. Part No.:
- NCP12711ADNR2G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.08
(exc. VAT)
£7.295
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.216 | £6.08 |
| 50 - 95 | £1.048 | £5.24 |
| 100 - 495 | £0.908 | £4.54 |
| 500 - 995 | £0.798 | £3.99 |
| 1000 + | £0.726 | £3.63 |
*price indicative
- RS Stock No.:
- 284-9012
- Mfr. Part No.:
- NCP12711ADNR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Switching Frequency | 30kHz | |
| Product Type | frequency peak current mode PWM Controller | |
| Start-up Supply Current | 35mA | |
| Supply Current | 35mA | |
| Package Type | MSOP-10 | |
| Pin Count | 10 | |
| Maximum Supply Voltage | 45V | |
| Series | NCP12711 | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Switching Frequency 30kHz | ||
Product Type frequency peak current mode PWM Controller | ||
Start-up Supply Current 35mA | ||
Supply Current 35mA | ||
Package Type MSOP-10 | ||
Pin Count 10 | ||
Maximum Supply Voltage 45V | ||
Series NCP12711 | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The ON Semiconductor fixed frequency peak current mode PWM controller containing all of the features necessary for implementing single−ended power converter topologies. The device operates from 4 V to 45 V without auxiliary winding and within its thermal capabilities. The controller contains a programmable oscillator capable of operating from 100 kHz to 1 MHz and integrates slope compensation to prevent subharmonic oscillations.
Internal over power protection
Adjustable soft start on peak current and frequency
Programmable input voltage UVLO with hysteresis
Shutdown threshold for external disable
