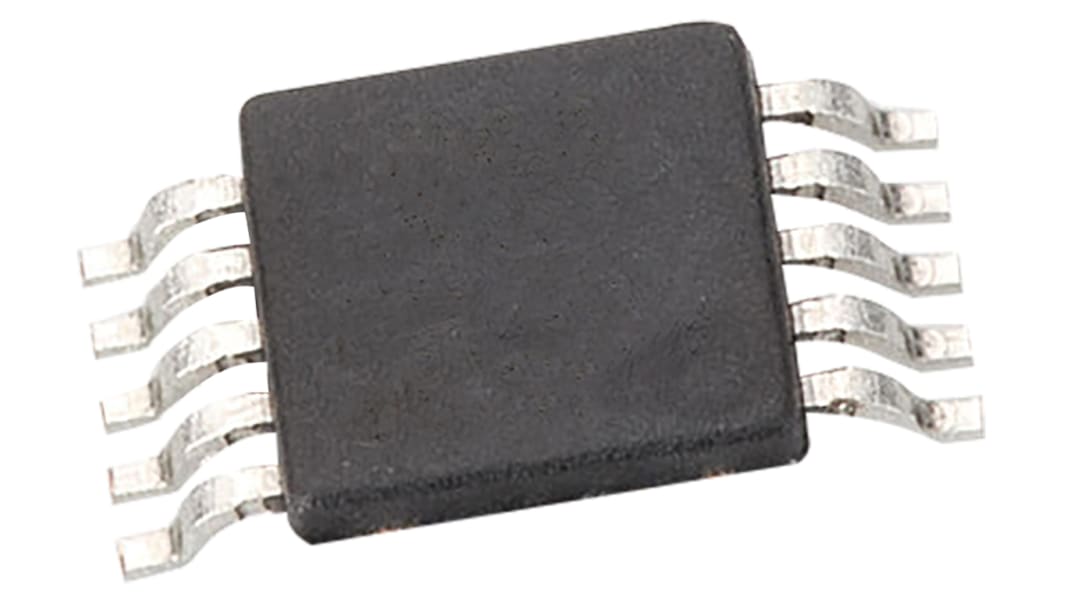

Texas Instruments LM5030MM/NOPB, PWM Controller, 600 kHz 10-Pin, MSOP

View all PWM

Subtotal (1 reel of 1000 units)*

£1,475.00

(exc. VAT)

£1,770.00

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1,000 unit(s), ready to ship
Units
Per unit
Per Reel*
1000 +£1.475£1,475.00

*price indicative

RS Stock No.:
162-4747
Mfr. Part No.:
LM5030MM/NOPB
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Maximum Switching Frequency

600 kHz

Output Current

1.5 A

Mounting Type

Surface Mount

Package Type

MSOP

Pin Count

10

Dimensions

3 x 3 x 0.86mm

PWM Controller Type

Current Mode

Length

3mm

Width

3mm

Height

0.86mm

Maximum Operating Temperature

+105 °C

Minimum Operating Temperature

-40 °C

PWM Controllers 1MHz, LM50xx Series, Texas Instruments


The Texas Instruments LM5030 high-voltage PWM controller contains all of the features needed to implement push-pull and bridge topologies, using current-mode control in a small 10-pin package. This device provides two alternating gate driver outputs. The LM5030 includes a high-voltage start-up regulator that operates over a wide input range of 14 V to 100 V

Internal High-Voltage Start-Up Regulator
Single Resistor Oscillator Setting
Synchronizable
Error Amplifier
Precision Reference
Adjustable Soft start
Dual Mode Overcurrent Protection
Slope Compensation
Direct Optocoupler Interface
1.5-A Peak Gate Drivers
Thermal Shutdown
