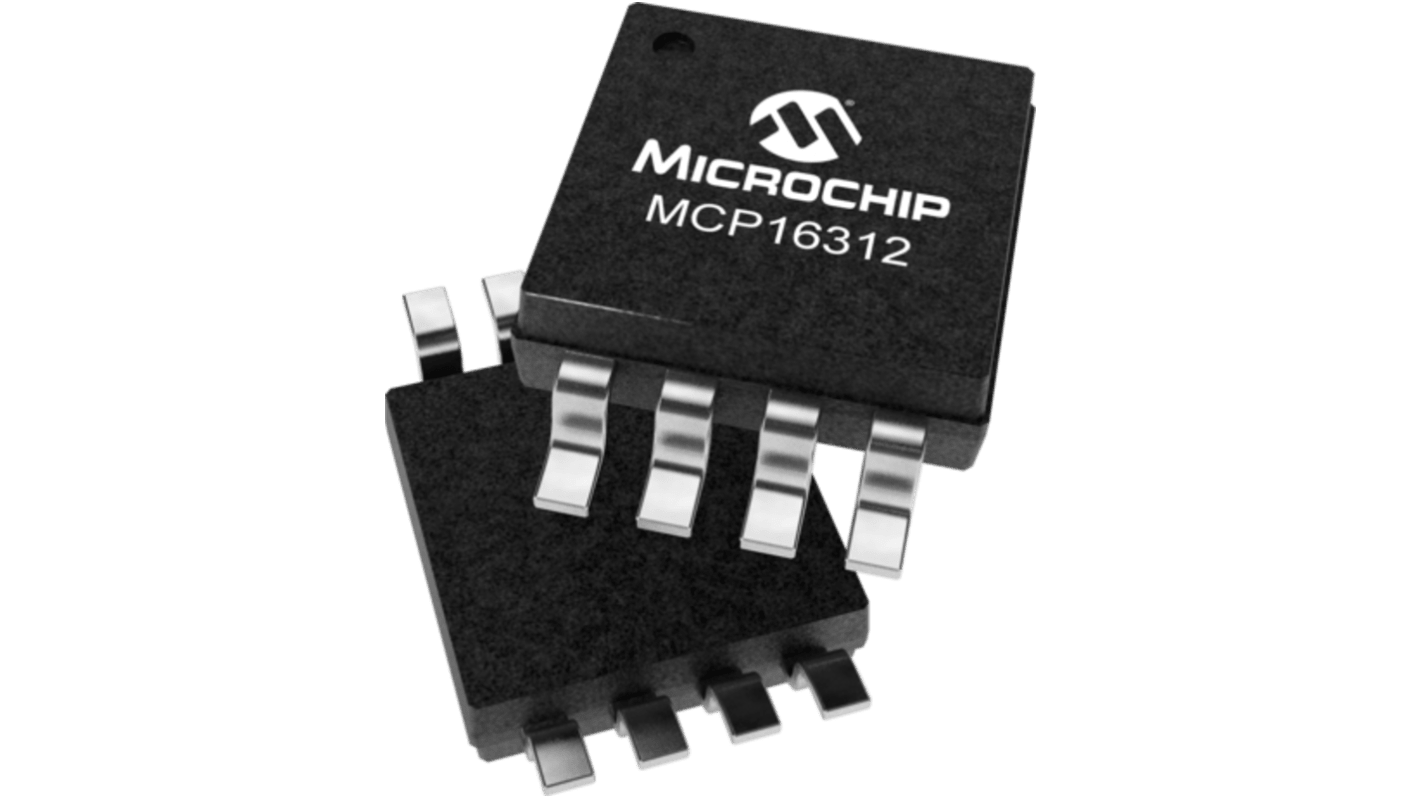

Microchip MCP16312T-E/MSVAO 1 PWM Controller, 575 kHz 30 V 8-Pin, MSOP

View all PWM

Subtotal (1 reel of 2500 units)*

£2,990.00

(exc. VAT)

£3,587.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£1.196£2,990.00

*price indicative

RS Stock No.:
631-362
Mfr. Part No.:
MCP16312T-E/MSVAO
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

PWM Controller

Maximum Switching Frequency

575kHz

Supply Current

44μA

Output Voltage

2/24 V

Output Current

1A

Number of Outputs

1

Mount Type

Surface

Package Type

MSOP

Minimum Supply Voltage

4.4V

Maximum Supply Voltage

30V

Topology

Step Down (Buck)

Pin Count

8

Minimum Operating Temperature

-40°C

Maximum Duty Cycle

94%

Maximum Operating Temperature

150°C

Width

2 mm

Standards/Approvals

AEC-Q100

Series

MCP16311/2

Automotive Standard

AEC-Q100

COO (Country of Origin):
TH
The Microchip Synchronous Buck Regulator is a compact, high-efficiency, fixed frequency PWM/PFM, synchronous step-down DC-DC converter in a 8-pin MSOP, or 2 x 3 TDFN package that operates from input voltage sources up to 30V. Integrated features include a high-side and a low-side switch, fixed frequency Peak Current Mode Control, internal compensation, peak-current limit and over temperature protection. The MCP16311 provides all the active functions for local DC-DC conversion, with fast transient response and accurate regulation.

Internal compensation

Peak current mode control

Cycle by cycle peak current limit

4.1V typical to start

3.6V typical to stop

Over temperature protection
