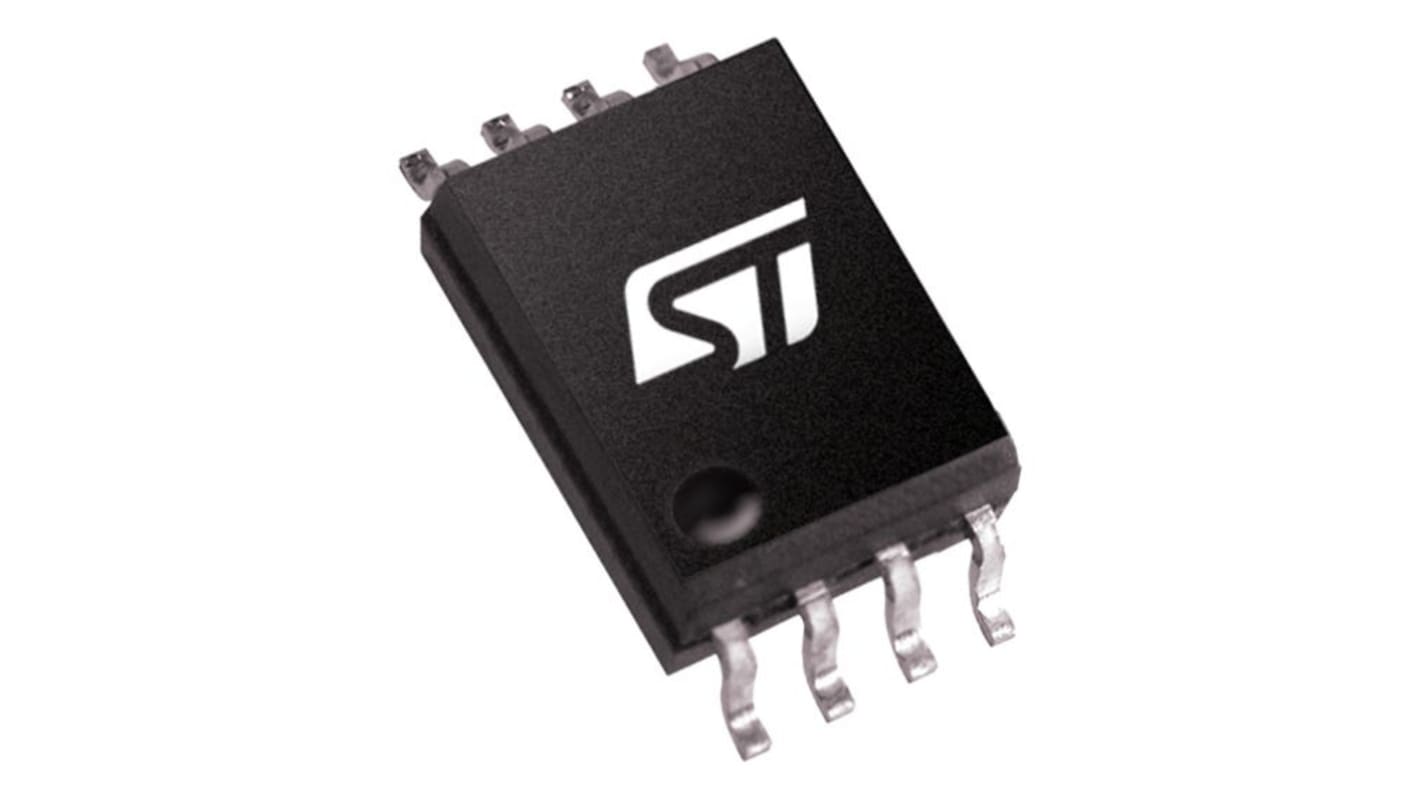

STMicroelectronics UC2845BD1013TR 1 PWM Controller, 500 kHz 30 V 8-Pin, SO-8

View all PWM

Subtotal (1 reel of 2500 units)*

£690.00

(exc. VAT)

£827.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.276£690.00

*price indicative

RS Stock No.:
151-968
Mfr. Part No.:
UC2845BD1013TR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Switching Frequency

500kHz

Product Type

PWM Controller

Start-up Supply Current

0.5mA

Supply Current

17mA

Output Voltage

5 V

Output Current

1A

Number of Outputs

1

Mount Type

Surface

Minimum Supply Voltage

7.6V

Package Type

SO-8

Maximum Supply Voltage

30V

Pin Count

8

Maximum Duty Cycle

50%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Series

UC284

Width

6.2 mm

Length

5mm

Height

1.75mm

Standards/Approvals

RoHS

Automotive Standard

No

COO (Country of Origin):
MA
The STMicroelectronics Controller, it belongs to family of control ICs provides the necessary features to implement off-line or DC to DC fixed frequency current mode control schemes with a minimal external parts count. Internally implemented circuits include a trimmed oscillator for precise DUTY CYCLE CONTROL under voltage lockout featuring start-up current less than 0.5mA, a precision reference trimmed for accuracy at the error amp input, logic to insure latched operation, a PWM comparator which also provides current limit control, and a totem pole output stage designed to source or sink high Peak current.

High current totem pole output

Undervoltage lockout with hysteresis

Low start-up and operating current
