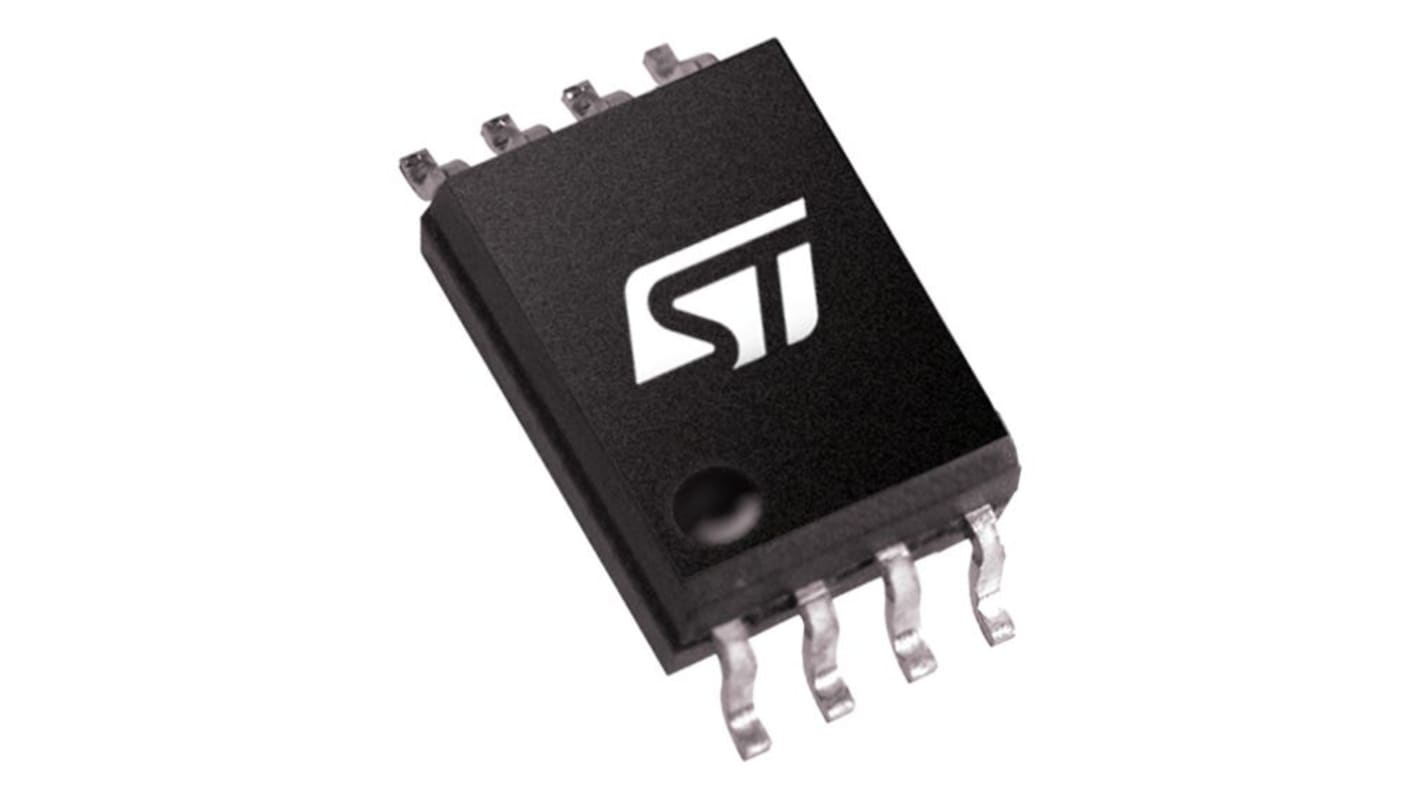

STMicroelectronics UC2845BD1013TR 1 PWM Controller, 500 kHz 30 V 8-Pin, SO-8

View all PWM
Bulk discount available

Subtotal (1 tape of 20 units)*

£9.36

(exc. VAT)

£11.24

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,480 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
20 - 180£0.468£9.36
200 - 480£0.445£8.90
500 - 980£0.412£8.24
1000 - 1980£0.379£7.58
2000 +£0.365£7.30

*price indicative

Packaging Options:
RS Stock No.:
151-970
Mfr. Part No.:
UC2845BD1013TR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

PWM Controller

Maximum Switching Frequency

500kHz

Start-up Supply Current

0.5mA

Supply Current

17mA

Output Voltage

5 V

Output Current

1A

Number of Outputs

1

Mount Type

Surface

Package Type

SO-8

Minimum Supply Voltage

7.6V

Maximum Supply Voltage

30V

Pin Count

8

Maximum Duty Cycle

50%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Series

UC284

Standards/Approvals

RoHS

Width

6.2 mm

Height

1.75mm

Length

5mm

Automotive Standard

No

COO (Country of Origin):
MA
The STMicroelectronics Controller, it belongs to family of control ICs provides the necessary features to implement off-line or DC to DC fixed frequency current mode control schemes with a minimal external parts count. Internally implemented circuits include a trimmed oscillator for precise DUTY CYCLE CONTROL under voltage lockout featuring start-up current less than 0.5mA, a precision reference trimmed for accuracy at the error amp input, logic to insure latched operation, a PWM comparator which also provides current limit control, and a totem pole output stage designed to source or sink high Peak current.

High current totem pole output

Undervoltage lockout with hysteresis

Low start-up and operating current
