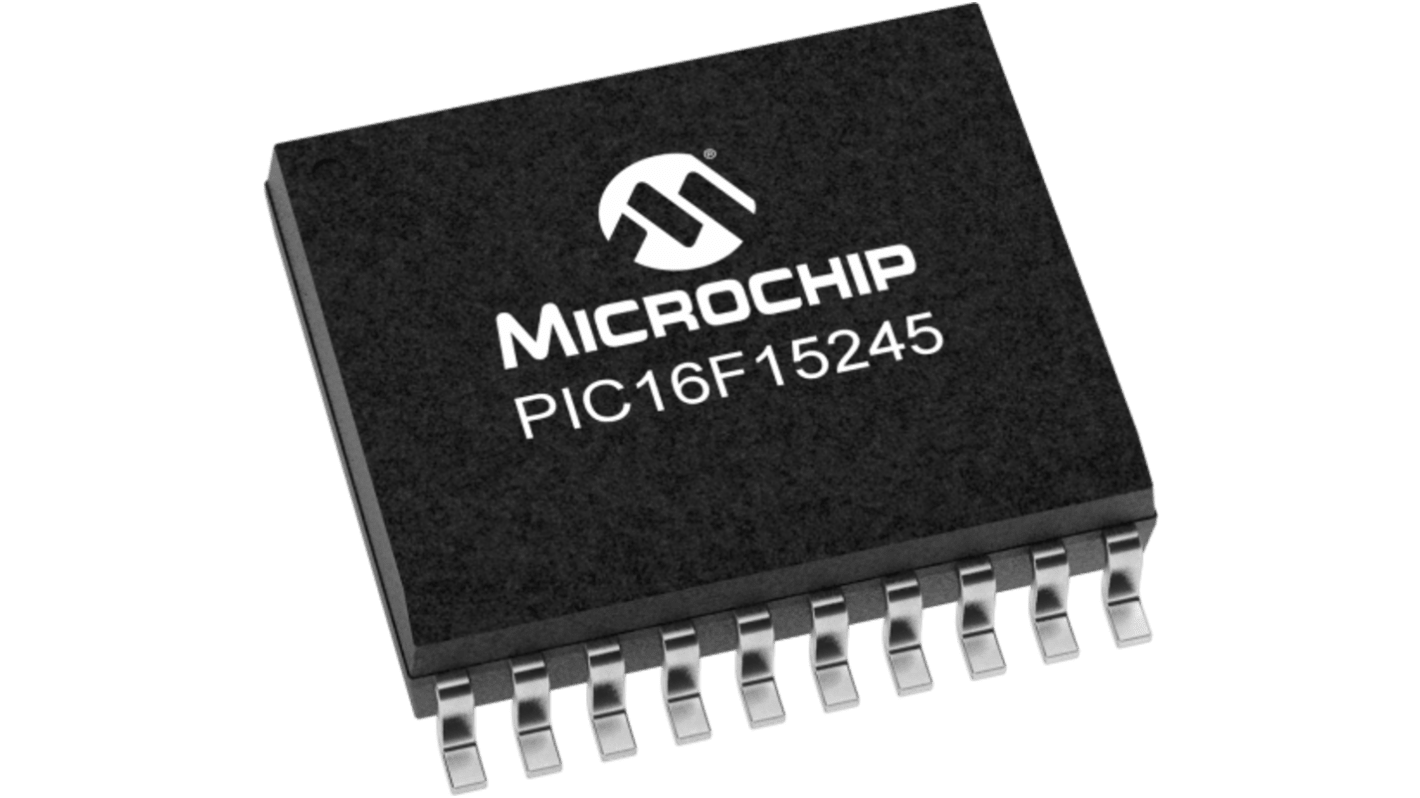

Microchip PIC16F15245-E/SOVAO 1 PWM Controller, 32 MHz 5.5 V 20-Pin, SOIC
- RS Stock No.:
- 631-489
- Mfr. Part No.:
- PIC16F15245-E/SOVAO
- Brand:
- Microchip
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 631-489
- Mfr. Part No.:
- PIC16F15245-E/SOVAO
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Switching Frequency | 32MHz | |
| Product Type | PWM Controller | |
| Output Voltage | 1.024/4.096 V | |
| Supply Current | 480μA | |
| Number of Outputs | 1 | |
| Minimum Supply Voltage | 1.8V | |
| Package Type | SOIC | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | PIC16F152 | |
| Height | 0.9mm | |
| Width | 3 mm | |
| Length | 3mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Maximum Switching Frequency 32MHz | ||
Product Type PWM Controller | ||
Output Voltage 1.024/4.096 V | ||
Supply Current 480μA | ||
Number of Outputs 1 | ||
Minimum Supply Voltage 1.8V | ||
Package Type SOIC | ||
Pin Count 20 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series PIC16F152 | ||
Height 0.9mm | ||
Width 3 mm | ||
Length 3mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Microchip PIC16F152 microcontroller family has a suite of digital and analogue peripherals that enable cost-sensitive sensor and real-time control applications. The family includes a 10 bit Analog to Digital Converter, Peripheral Pin Select, Memory Access Partition to support users in data protection and bootloader applications, Device Information Area that stores Fixed Voltage Reference offset values to help improve ADC accuracy, digital communication peripherals, timers and waveform generators. This small form factor device is well suited for low-cost sensor and control applications.
C Compiler optimized RISC architecture
16 level deep hardware stack
Low current power ON reset
Configurable power up timer
Brown out reset
Watchdog timer
Programmable code protection and write protection
