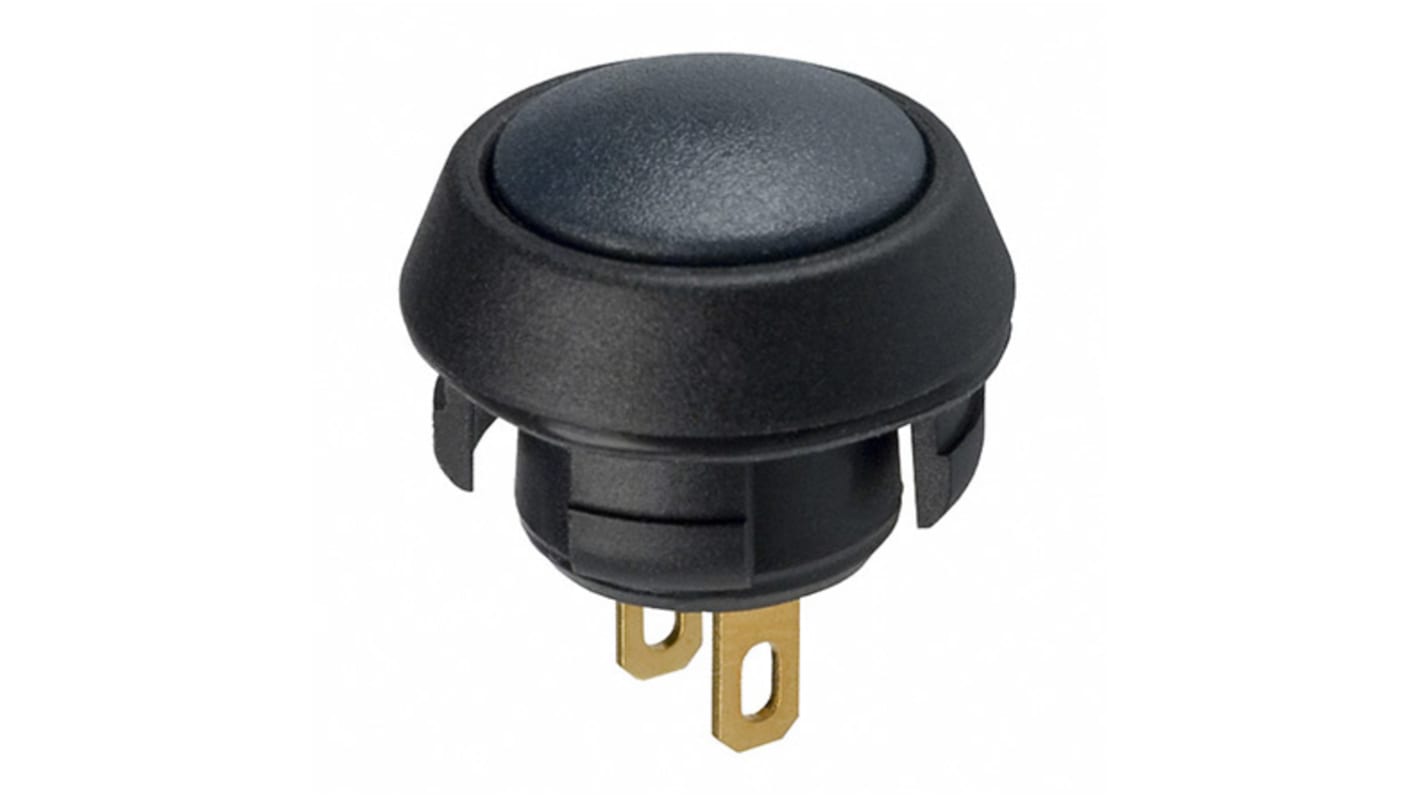

Grayhill Push Button Switch, Momentary, Panel Mount, 15.29mm Cutout, SPST, 24V dc

View all Push Button Switches

Subtotal (1 unit)*

£6.18

(exc. VAT)

£7.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,364 unit(s) ready to ship
  • Plus 29 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£6.18

*price indicative

RS Stock No.:
878-0808
Mfr. Part No.:
30-100
Brand:
Grayhill
Find similar products by selecting one or more attributes.
Select all

Brand

Grayhill

Switch Operation

Momentary

Illuminated

No

Panel Cut Out Diameter

15.29mm

Mounting Type

Panel Mount

Push Button Colour

Black

Contact Configuration

SPST

Voltage Rating

24V dc

Push Button Style

Round

Contact Current Rating

150 mA

Contact Material

Gold Plated Nickel Brass

Manufacturer Part No.

30-100

Contact DC Voltage Rating

24V

Case Colour

Black

Terminal Type

Snap-In

30 Series Pushbutton Switches (Snap-In Panel Mount)


The 30 series is a reliable, economical range of pushbuttons with a variety of options to choose from. They are SPST and feature a contact current rating of 150mA at 24 Vdc. They feature a snap-in panel mount design helping to reduce instillation time. There is a wide selection of actuator colours to choose from. They are extremely cost effective with a life cycle expectancy of 500,000 actuations.

Features:
Selection of colours
Economical
Sealed
Operating temperature: -40 to +80 °C
Gold plated over nickel terminals
