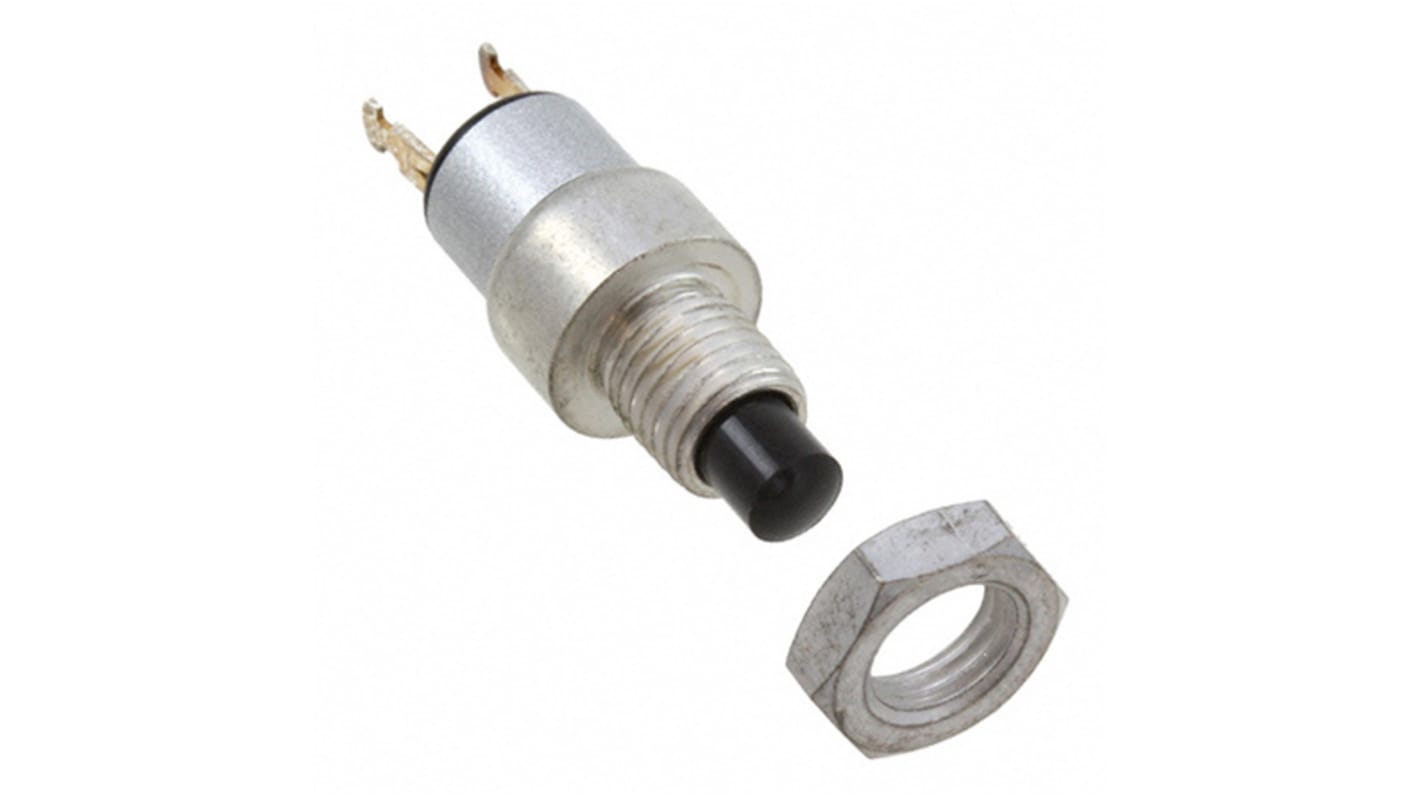

Grayhill Push Button Switch, Momentary, Panel Mount, SPST, 220V ac

View all Push Button Switches
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
876-7442
Mfr. Part No.:
30-37
Brand:
Grayhill
Find similar products by selecting one or more attributes.
Select all

Brand

Grayhill

Switch Operation

Momentary

Mounting Type

Panel Mount

Contact Configuration

SPST

Voltage Rating

220V ac

Contact Current Rating

1 A

Contact Material

Silver Plated Brass

Manufacturer Part No.

30-37

Terminal Type

Solder Lug

COO (Country of Origin):
US

30 Series Butt Contact Pushbutton Switches


The 30 series is a reliable, economical range of pushbuttons with a variety of options to choose from. They are SPST and feature a contact rating of between 1 and 5 amps. Users can select from both normally open or normally closed versions and various actuator styles. These include standard, with sealed bushing and button, with over travel, with positive feel and push-pull. All options are panel mount.

Features:
Large selection
Economical
Sealed bushing and pushbutton options
Operating temperature: -40 to +85 °C
Solder lug terminals
