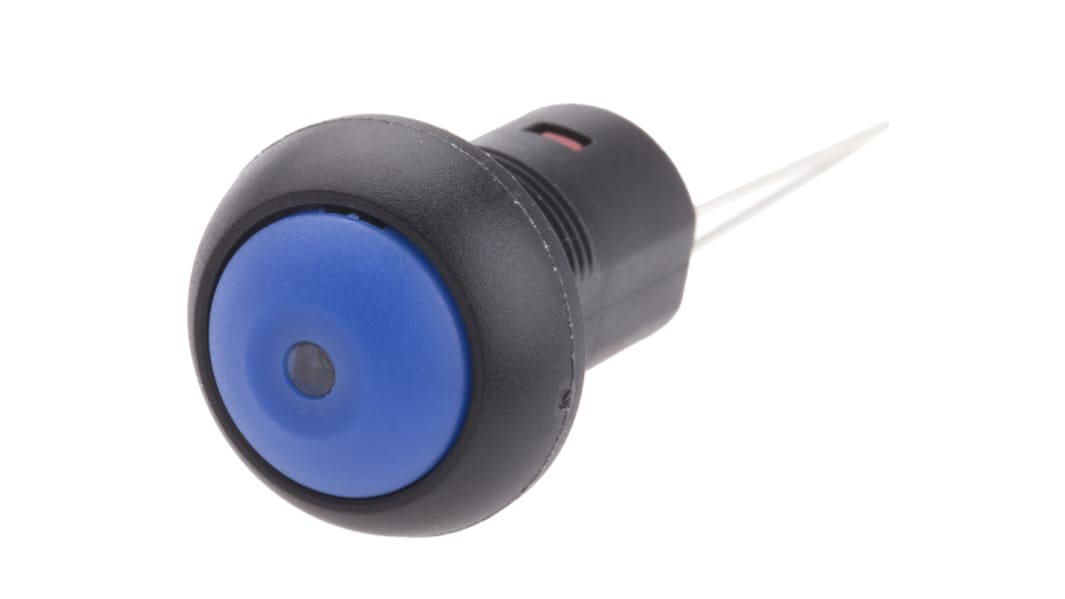

RS PRO Illuminated Miniature Push Button Switch, Latching, PCB, 13.6mm Cutout, SPST, White LED, 30V dc, IP67
- RS Stock No.:
- 820-7555
- Brand:
- RS PRO
250 In stock - FREE next working day delivery available
9 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.37
(exc. VAT)
£5.24
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £4.37 |
| 10 - 24 | £4.23 |
| 25 - 49 | £4.10 |
| 50 - 99 | £3.89 |
| 100 + | £3.58 |
- RS Stock No.:
- 820-7555
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS PRO Single Pole Single Throw (SPST) Latching White LED Miniature Push Button Switch, IP67, 13.6 mm (Dia.), PCB, 30 V DC
If you're looking for a reliable way to control a circuit, use this latching white LED (light-emitting diode) push button from RS PRO. It's commonly found in commercial settings such as electronics facilities and manufacturing plants.
This part makes it easy to tell when there's power in the circuit, as the push-button lights up white. The part is also built to last, as it has an IP67 rating, meaning it's protected against dust and dirt as well as immersion in one metre of water for approximately 15 minutes.
You can use the switch as a reset button or on control panels in machinery. It's suitable for mounting on a PCB (printed circuit board) for ease of installation.
This part makes it easy to tell when there's power in the circuit, as the push-button lights up white. The part is also built to last, as it has an IP67 rating, meaning it's protected against dust and dirt as well as immersion in one metre of water for approximately 15 minutes.
You can use the switch as a reset button or on control panels in machinery. It's suitable for mounting on a PCB (printed circuit board) for ease of installation.
Features and Benefits
- Black actuator colour
- Dome actuator shape
- Cap actuator type
- Black case colour
- Contact DC voltage rating of 24 V
- Single Pole Single Throw (SPST) contact configuration
- Contact current rating of 100 mA at 24 V DC
- Gold-plated silver contact material
- Illuminated
- IP67 rated
- White LED colour
- PCB mounting type
- Panel cut out size of 13.6 mm (diameter)
- Latching switch operation
- Solder lug terminal type
- Voltage rating of 30 V DC
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | Yes |
| Panel Cut Out Diameter | 13.6mm |
| Mounting Type | PCB |
| Push Button Colour | Blue |
| Contact Configuration | SPST |
| Voltage Rating | 30V dc |
| Push Button Style | Dome |
| LED Colour | White |
| IP Rating | IP67 |
| Contact Current Rating | 100 mA @ 24 V dc |
| Contact Material | Gold Over Silver |
| Case Colour | Black |
| Contact DC Voltage Rating | 24V |
| Manufacturer Part No. | PAL6B2M1CES7L1 |
| Terminal Type | Solder Lug |
