Omron A22 Series Push Button, Panel Mount, 22.3mm Cutout, SPST, IP65
- RS Stock No.:
- 818-2009
- Mfr. Part No.:
- A22E-LP-11
- Brand:
- Omron
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 818-2009
- Mfr. Part No.:
- A22E-LP-11
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Illuminated | No | |
| Panel Cut Out Diameter | 22.3mm | |
| Series | A22 | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Red | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| IP Rating | IP65 | |
| Manufacturer Part No. | A22E-LP-11 | |
| Minimum Operating Temperature | -20°C | |
| Maximum DC Voltage | 380V | |
| Terminal Type | Screw | |
| Maximum AC Voltage | 440V | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Illuminated No | ||
Panel Cut Out Diameter 22.3mm | ||
Series A22 | ||
Mounting Type Panel Mount | ||
Push Button Colour Red | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
IP Rating IP65 | ||
Manufacturer Part No. A22E-LP-11 | ||
Minimum Operating Temperature -20°C | ||
Maximum DC Voltage 380V | ||
Terminal Type Screw | ||
Maximum AC Voltage 440V | ||
Maximum Operating Temperature +70°C | ||

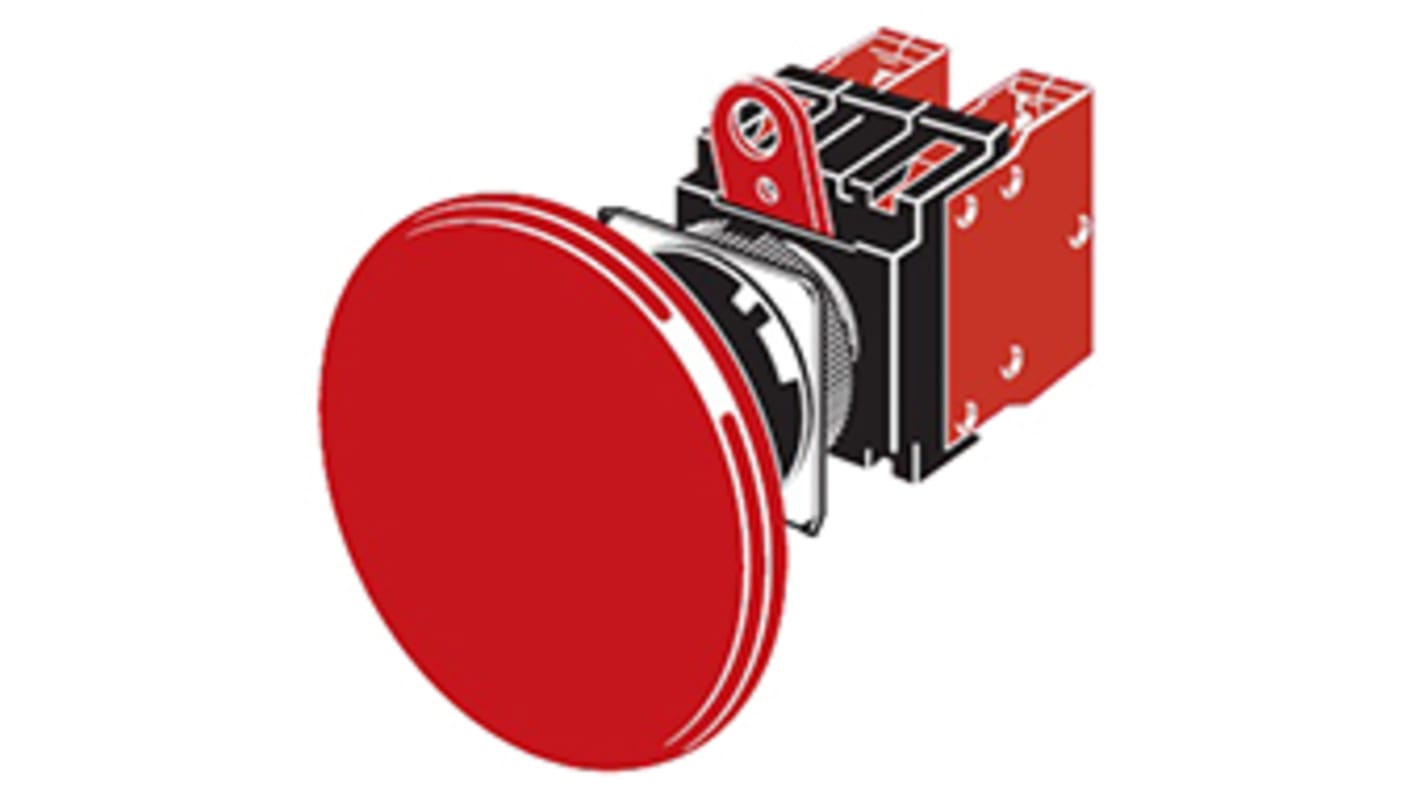

A22E Series Emergency Stop Switch
The A22E series emergency stop switch is supplied as a complete or sub-assembled unit and can be installed in a 22mm or 25mm diameter hole. The switch unit can easily be mounted without the use of tools.
Direct opening mechanism to open the circuit when the contact welds
Safety lock mechanism prevents operating errors
Easy mounting and removal of Switch Blocks using a lever
Mount three Switch Units in series to improve wiring efficiency (with non-lighted Switch Units, three Units can be mounted for multiple contacts)
Finger protection mechanism on Switch Unit provided as a standard feature
Install using either round, or forked crimp terminals
Non-lighted models IP65 (oil-resistant), lighted models IP65
A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated
Safety lock mechanism prevents operating errors
Easy mounting and removal of Switch Blocks using a lever
Mount three Switch Units in series to improve wiring efficiency (with non-lighted Switch Units, three Units can be mounted for multiple contacts)
Finger protection mechanism on Switch Unit provided as a standard feature
Install using either round, or forked crimp terminals
Non-lighted models IP65 (oil-resistant), lighted models IP65
A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated
Completely Assembled Models
Switch with Integrated Control Box
Operation Units only
Switch Units only
Accessories
Approvals
UL, cUL, TUV, CCC.
Standards
UL508 C22.2 No.14, EN60947-5-1 & EN60947-5-5 (certified direct opening mechanism), GB14048.5, EN60947-5-1.
