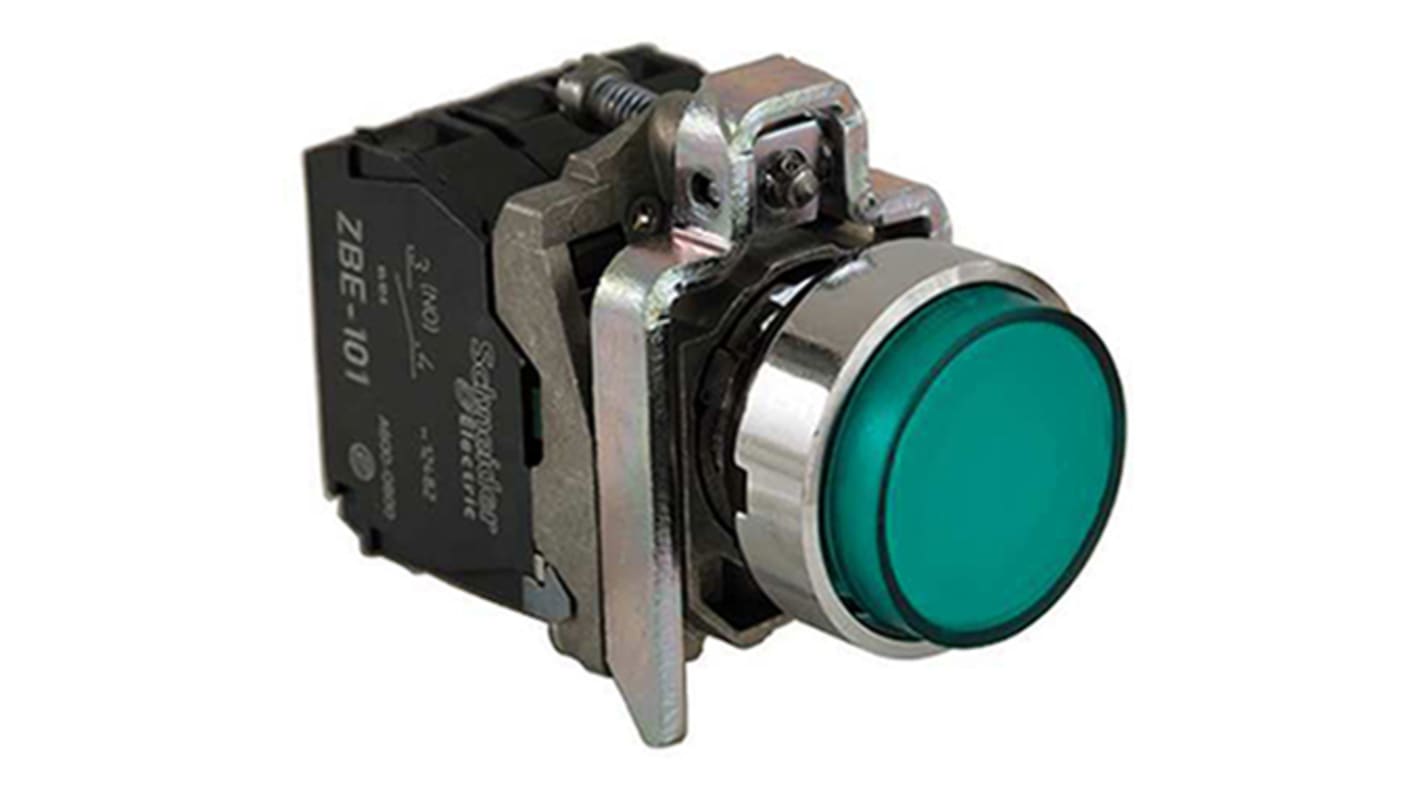

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPDT, Green
- RS Stock No.:
- 815-4102
- Mfr. Part No.:
- XB4BW13G5
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£38.71
(exc. VAT)
£46.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 9 unit(s) shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.71 |
*price indicative
- RS Stock No.:
- 815-4102
- Mfr. Part No.:
- XB4BW13G5
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Switch Operation | Spring Return | |
| Actuator Colour | Green | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | Harmony XB4 | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| LED Colour | Green | |
| Terminal Type | Screw | |
| Contact AC Voltage | 120V ac | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Round | |
| Switch Configuration | Spring return | |
| Maximum Operating Temperature | 70°C | |
| Switch Contact Current | 10 A | |
| Width | 30 mm | |
| Length | 101mm | |
| Height | 47mm | |
| Standards/Approvals | EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C8201-5-1EN/IEC 60947-1CSA C22.2 No 14UL 508EN/IEC 60947-5-5JIS C8201-1 | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Switch Operation Spring Return | ||
Actuator Colour Green | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series Harmony XB4 | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
LED Colour Green | ||
Terminal Type Screw | ||
Contact AC Voltage 120V ac | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Round | ||
Switch Configuration Spring return | ||
Maximum Operating Temperature 70°C | ||
Switch Contact Current 10 A | ||
Width 30 mm | ||
Length 101mm | ||
Height 47mm | ||
Standards/Approvals EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C8201-5-1EN/IEC 60947-1CSA C22.2 No 14UL 508EN/IEC 60947-5-5JIS C8201-1 | ||
Legend Blank | ||
RoHS Status: Exempt
Schneider Electric XB4BW13G5
This Harmony XB4 illuminated modular green push button operates with a spring return mechanism, is supplied with 110-120V AC/DC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic spring return, plain lens, 1NO + 1NC, 110-120V. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
XB4 Metal 22 mm Push Buttons
XB4B series push buttons, switches and pilot lights.
Complete units
Push buttons, spring return, chromium plated metal bezel
Selector switches and key switches with chromium plated metal bezel
Illuminated push buttons, spring return, flush push, chromium plated metal bezel
