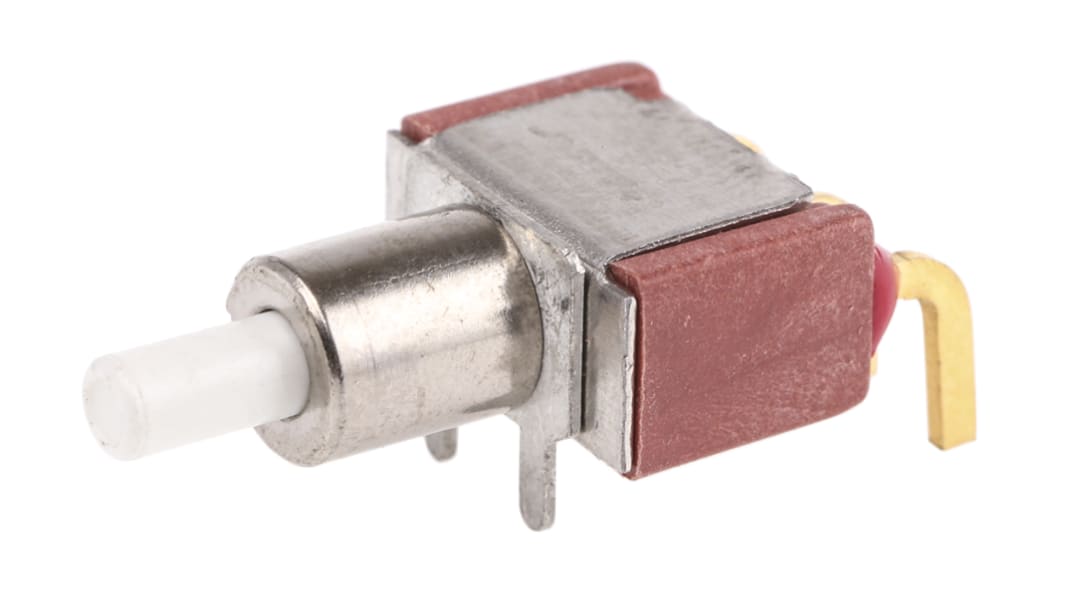

C & K 8020 Series Push Button Switch, Momentary, PCB, SPDT, Red, Green, Yellow LED, IP40, 28 V dc 120 V ac
- RS Stock No.:
- 787-4823
- Distrelec Article No.:
- 302-59-340
- Mfr. Part No.:
- 8125SD9ABE
- Brand:
- C & K
Subtotal (1 unit)*
£5.63
(exc. VAT)
£6.76
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £5.63 |
*price indicative
- RS Stock No.:
- 787-4823
- Distrelec Article No.:
- 302-59-340
- Mfr. Part No.:
- 8125SD9ABE
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Series | 8020 | |
| Mount Type | PCB | |
| Contact Configuration | SPDT | |
| Terminal Type | Through Hole | |
| LED Colour | Red, Green, Yellow | |
| IP Rating | IP40 | |
| Contact AC Voltage | 120V ac | |
| Contact DC Voltage | 28V dc | |
| Minimum Operating Temperature | -30°C | |
| Actuator Style | Plunger | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | UR, RoHS, CSA | |
| Switch Contact Current | 400mA | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated No | ||
Series 8020 | ||
Mount Type PCB | ||
Contact Configuration SPDT | ||
Terminal Type Through Hole | ||
LED Colour Red, Green, Yellow | ||
IP Rating IP40 | ||
Contact AC Voltage 120V ac | ||
Contact DC Voltage 28V dc | ||
Minimum Operating Temperature -30°C | ||
Actuator Style Plunger | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals UR, RoHS, CSA | ||
Switch Contact Current 400mA | ||
80 Series Pushbutton Switches & Accessories
These momentary snap-action push button switches all feature on - momentary on contacts.
A selection of contact configurations are available along with caps, frames washers and nuts.
Typical Applications:
Instrumentation
Computer peripherals
Telecommunications equipment
Momentary pushbutton switches
Solder tags
Plunger Ø 3.1mm
Positive tactile feel
Multi-positions available
Wide variety of termination options
Epoxy terminal seal compatible with bottom wash cleaning
Note
Accessories available include: Caps, Frames, Washers and Mounting Nuts.
